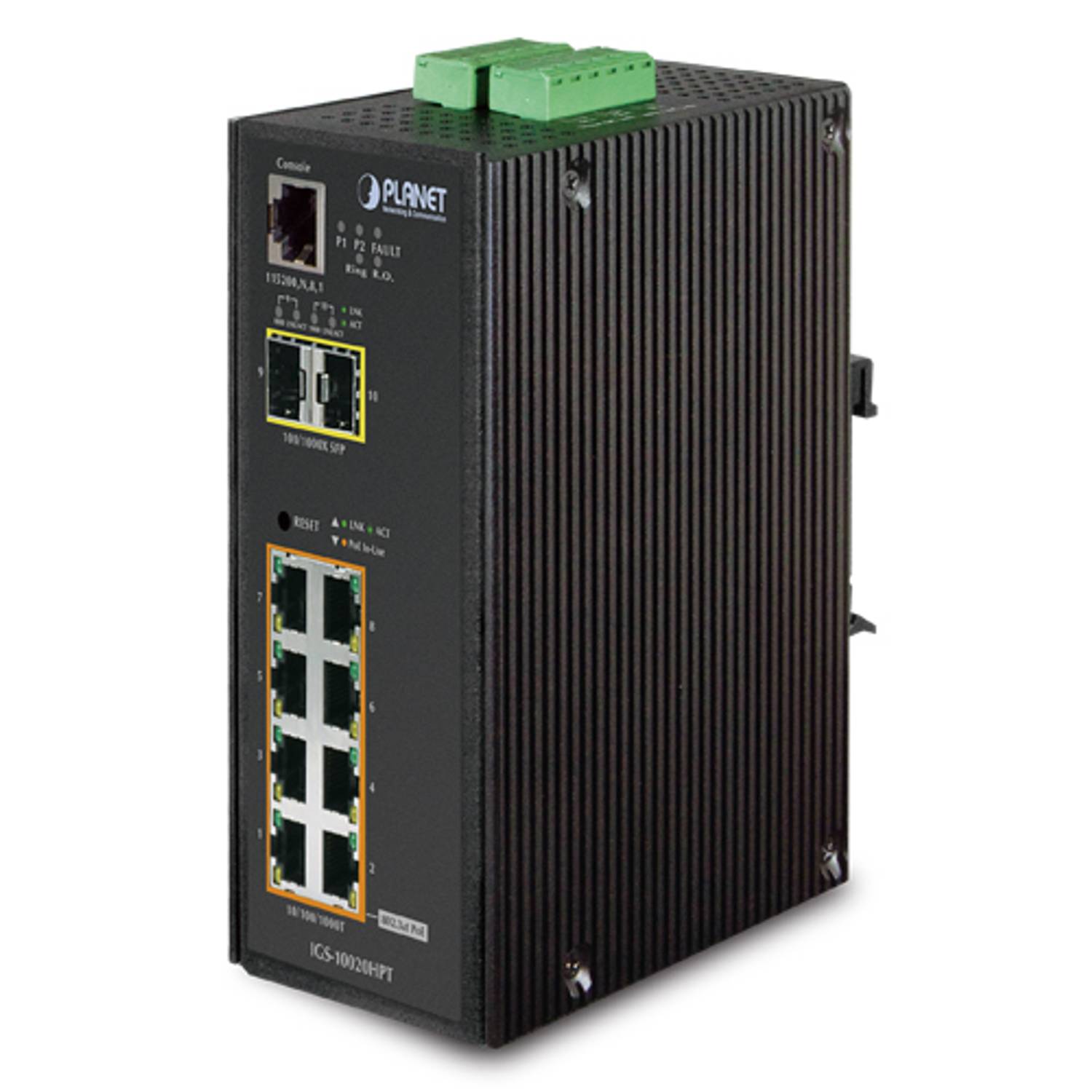

Industrial Managed Ethernet Switch

Physical Port

8-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 with IEEE 802.3af / 802.3at PoE Injector2 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detectionOne RJ-45 console interface for basic management and setup

Power over Ethernet

- IEEE 802.3af and IEEE 802.3at mode switch control- Total PoE power budget control- Per port PoE function enable/disable- PoE Admin-mode control- PoE Port Power feeding priority- Per PoE port power limit- PD classification detection- Temperature Threshold Control- PoE Usage Threshold Control- PD Alive Check- PoE scheduleComplies with IEEE 802.3af / IEEE 802.3at Power over Ethernet / End-Span PSEUp to 8 IEEE 802.3af / 802.3at devices poweredSupports PoE Power up to 30.8 Watts for each PoE portsAuto detect powered device (PD)Circuit protection prevent power interference between portsRemote power feeding up to 100mPoE Management features

Industrial Case / Installation

IP30 Aluminum metal case protectionDIN Rail and Wall Mount Design48V DC, redundant power with polarity reverse protect functionSupports EFT protection 6000 VDC for power lineSupports 6000 VDC Ethernet ESD protection-40 to 75 Degree C operating temperature

Digital Input / Digital Output

2 Digital Input (DI)2 Digital Output (DO)Integrate sensors into auto alarm systemTransfer alarm to IP network via email and SNNP trap

Layer 2 Features

- Broadcast / Multicast / Unicast- IEEE 802.1Q Tagged VLAN- Up to 255 VLANs groups, out of 4094 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-Based VLAN- MAC-Based VLAN- Voice VLAN- STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN- BPDU Guard- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 5 trunk groups, up to 8 ports per trunk group- Up to 16Gbps bandwidth (Duplex Mode)Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)High performance of Store-and-Forward architecture and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidthStorm Control supportSupports VLANSupportsSpanning Tree ProtocolSupports Link AggregationProvides Port Mirror (1-to-1)Port Mirroring to monitor the incoming or outgoing traffic on a particular portLoop protection to avoid broadcast loops

Quality of Service

- IEEE 802.1p CoS- IP TOS / DSCP / IP Precedence- IP TCP/UDP port number- Typical network applicationIngress Shaper and Egress Rate Limit per port bandwidth control8 priority queues on all switch portsTraffic classificationStrict priority and Weighted Round Robin (WRR) CoS policiesSupports QoS and In/Out bandwidth control on each portTraffic-policing policies on the switch portDSCP remarking

Multicast

Supports IGMP Snooping v1, v2 and v3Supports MLD Snooping v1 and v2Querier mode supportIGMP Snooping port filteringMLD Snooping port filteringMVR (Multicast VLAN Registration)

Security

IEEE 802.1x Port-Based / MAC-Based network access authenticationBuilt-in RADIUS client to co-operate with the RADIUS serversTACACS+ login users access authenticationRADIUS / TACACS+ users access authenticationIP-Based Access Control List (ACL)
MAC-Based Access Control ListSource MAC / IP address bindingDHCP Snooping to filter untrusted DHCP messagesDynamic ARP Inspection discards ARP packets with invalid MAC address to IP address bindingIP Source Guard prevents IP spoofing attacksAuto DoS rule to defend DoS attackIP address access management to prevent unauthorized intruder

Management

- Console / Telnet Command Line Interface- Web switch management- SNMP v1 and v2c switch management- SSH / SSL and SNMP v3 secure accessSwitch Management InterfacesFour RMON groups (history, statistics, alarms, and events)IPv6 IP Address / NTP / DNS managementBuilt-in Trivial File Transfer Protocol (TFTP) clientBOOTP and DHCP for IP address assignmentFirmware upload / download via HTTP / TFTPDHCP RelayDHCP Option 82User Privilege levels controlNTP (Network Time Protocol)Link Layer Discovery Protocol (LLDP) ProtocolCable Diagnostic technology provides the mechanism to detect and report potential cabling issuesReset button for system reboot or reset to factory defaultPLANET Smart Discovery Utility for deploy management

Hardware SpecificationCopper Ports8 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X portsSFP/mini-GBIC Slots2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100Base-FX SFPConsole1 x RJ-45-to-RS-232 serial port (115200, 8, N, 1)Switch ArchitectureStore-and-ForwardSwitch Fabric20Gbps / non-blockingThroughput (packet per second)14.8Mpps@ 64Bytes packetAddress Table8K entries, automatic source address learning and ageingShare Data Buffer4MbitsFlow ControlIEEE 802.3x Pause Frame for Full-Duplex
Back pressure for Half-DuplexJumbo Frame9KbytesReset Button< 5 sec: System reboot
> 5 sec: Factory DefaultESD Protection6KV DCEFT Protection6KV DCEnclosureIP30 Aluminum Metal CaseInstallationDIN Rail Kit and Wall Mount KitAlarmOne relay output for power fail. Alarm Relay current carry ability: 1A @ DC 24VDI/DO2 Digital Input (DI):
　■ Level 0:-24V~2.1V (±0.1V)
　■ Level 1: 2.1V~24V (±0.1V)
　■ Input Load to 24V DC, 10mA max.
2 Digital Output (DO): Open collector to 24VDC, 100mA max.LED IndicatorSystem:
　■ Power 1 (Green)
　■ Power 2 (Green)
　■ Fault Alarm (Green)
　■ Ring* (Green)
　■ Ring Owner* (Green)
Per 10/100/1000T RJ-45 Ports:
　■ PoE In-Use (Orange)
　■ LNK/ACT (Green)
Per SFP Interface:
　■ 1000 (Orange)
　■ LNK/ACT (Green)Dimension (W x D x H)152 x 107x 72 mmWeight1684gPower RequirementDC 48VPower Consumption31.9 Watts / 108.78BTU (Full loading without PoE function)
306 Watts / 1043.46BTU (Full loading with PoE function)Power Over EthernetPoE StandardIEEE 802.3af / IEEE 802.3at Power over Ethernet / PSEPoE Power Supply TypeEnd-SpanPoE Power OutputPer Port 56V DC, 350mA . Max. 15.4 watts (IEEE 802.3af)
Per Port 56V DC, 590mA. Max. 30 watts (IEEE 802.3at)Power Pin Assignment1/2(+), 3/6(-)PoE Power Budget270W maximum (depends on power input)Max. number of Class 2 PD8Max. number of Class 3 PD8Max. number of Class 4 PD8Layer 2 FunctionBasic Management InterfacesConsole, Telnet, Web Browser, SNMP v1, v2cSecure Management InterfacesSSH, SSL, SNMP v3Port ConfigurationPort disable/enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Power saving mode controlPort StatusDisplay each port’s speed duplex mode, link status, Flow control status,
Auto negotiation status, trunk statusPort MirroringTX / RX / Both
1 to 1 monitorVLAN802.1Q Tagged Based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-Based VLAN
Protocol-Based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4094 VLAN IDsLink AggregationIEEE 802.3ad LACP / Static Trunk
Supports 5 groups of 8-Port trunk supportQoSTraffic classification based, Strict priority and WRR
8-Level priority for switching
　■ Port Number
　■ 802.1p priority
　■ 802.1Q VLAN tag
　■ DSCP/TOS field in IP PacketIGMP SnoopingIGMP (v1/v2/V3) Snooping, up to 255 multicast Groups
IGMP Querier mode supportMLD SnoopingMLD (v1/v2) Snooping, up to 255 multicast Groups
MLD Querier mode supportAccess Control ListIP-Based ACL / MAC-Based ACL
Up to 123 entriesBandwidth ControlPer port bandwidth control
　Ingress: 500Kb~1000Mbps
　Egress: 500Kb~1000MbpsSNMP MIBsRFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2933 IGMP-STD-MIB
RFC3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIBStandards ConformanceRegulation ComplianceFCC Part 15 Class A, CEStability TestingIEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)Standards ComplianceIEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning tree protocol
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1s Multiple spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2Standards ComplianceIEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning tree protocol
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1s Multiple spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2* Feature to expect in future
