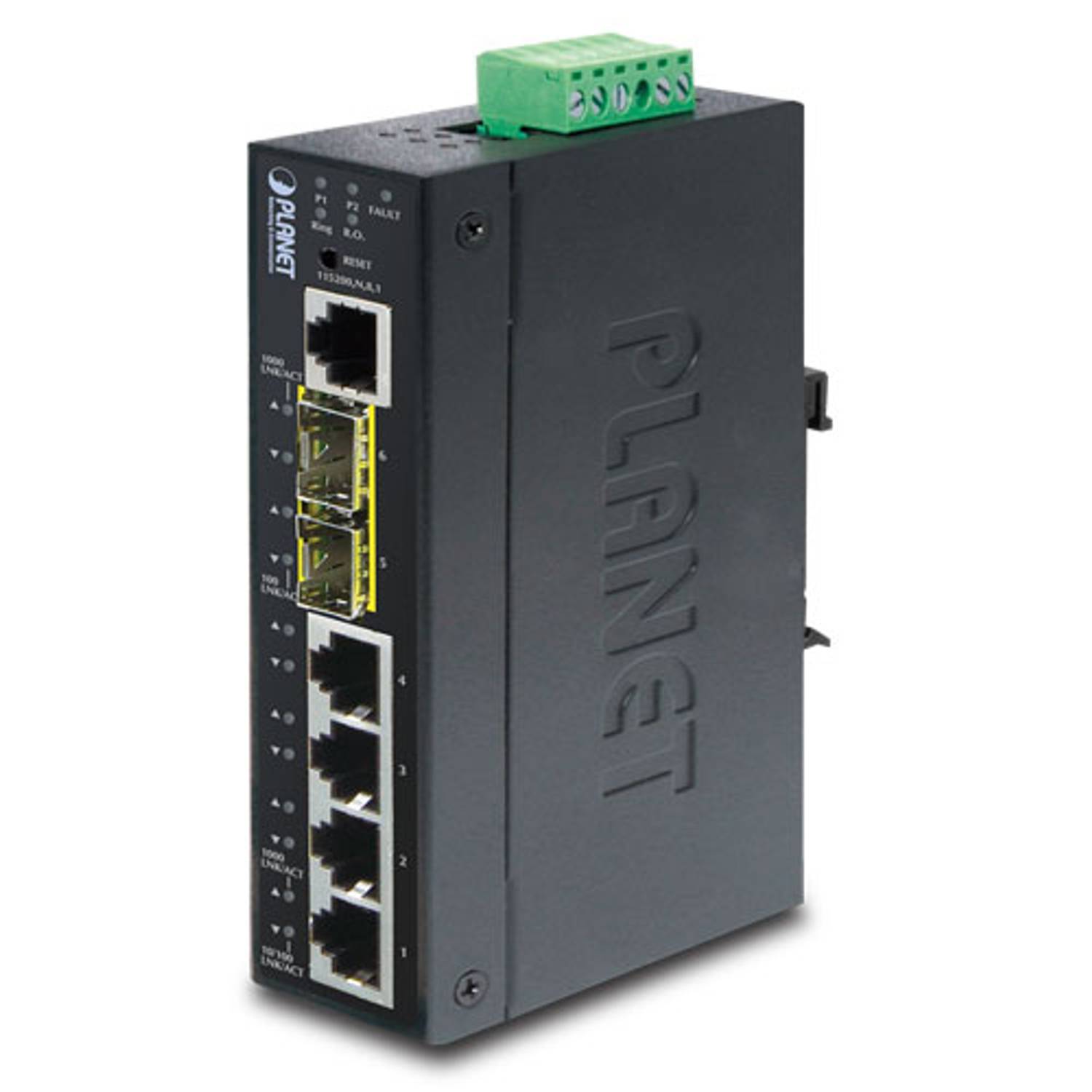

Industrial Type L2+ Managed Ethernet Switch (Industrial L2+

Physical Port

4 10/100/1000BASE-T Gigabit Ethernet RJ45 ports2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detectionOne RJ45 console interface for basic management and setup

Industrial Case and Installation

IP30 metal caseDIN rail and wall-mount design12~48V DC, redundant power with polarity reverse protect function24V AC power input acceptableSupports 5000V DC Ethernet ESD protection-40 to 75 degrees C operating temperature

Layer 2 Features

- Broadcast/Multicast/Unicast- IEEE 802.1Q tagged VLAN- Up to 255 VLANs groups, out of 4094 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN Edge (PVE)- Protocol-based VLAN- MAC-based VLAN- Voice VLAN- IEEE 802.1D Spanning Tree Protocol (STP)- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN- BPDU GuardPrevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidthStorm Control supportSupports VLANSupports Spanning Tree ProtocolSupports Link Aggregation- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)- Maximum 4 trunk groups with 4 ports per trunk group- Up to 8Gbps bandwidth (duplex mode)- Provides port mirror (1-to-1)Port mirroring to monitor the incoming or outgoing traffic on a particular portLoop protection to avoid broadcast loopsvSupports ERPS (Ethernet Ring Protection Switching)

Layer 3 IP Routing Features

Supports maximum 32 static routes and route summarization

Quality of Service

- IEEE 802.1p CoS- IP TOS/DSCP/IP precedence- IP TCP/UDP port number- Typical network applicationIngress Shaper and Egress Rate Limit per port bandwidth control8 priority queues on all switch portsTraffic classificationStrict priority and Weighted Round Robin (WRR) CoS policiesSupports QoS and In/Out bandwidth control on each portTraffic-policing policies on the switch portDSCP remarking

Multicast

Supports IGMP snooping v1, v2 and v3Supports MLD snooping v1 and v2Querier mode supportIGMP snooping port filteringMLD snooping port filteringMVR (Multicast VLAN Registration)

Security

IEEE 802.1X Port-based/MAC-based network access authenticationBuilt-in RADIUS client to cooperate with the RADIUS serversTACACS+ login users access authenticationRADIUS/TACACS+ users access authenticationIP-based Access Control List (ACL)MAC-based Access Control ListSource MAC/IP address bindingDHCP snooping to filter distrusted DHCP messagesDynamic ARP Inspection discards ARP packets with invalid MAC address to IP address bindingIP Source Guard prevents IP spoofing attacksIP address access management to prevent unauthorized intruder

Management

- Console/Telnet Command Line Interface- Web switch management- SNMP v1 and v2c switch management- SSH/SSL and SNMP v3 secure accessSwitch Management InterfacesFour RMON groups (history, statistics, alarms, and events)IPv6 IP address/NTP/DNS managementBuilt-in Trivial File Transfer Protocol (TFTP) clientBOOTP and DHCP for IP address assignmentFirmware upload/download via HTTP/TFTPDHCP RelayDHCP Option 82User Privilege levels controlNetwork Time Protocol (NTP)Link Layer Discovery Protocol (LLDP)SFP-DDM (Digital Diagnostic Monitor)Cable diagnostic technology provides the mechanism to detect and report potential cabling issuesReset button for system reboot or reset to factory defaultPLANET Smart Discovery Utility for deployment management
