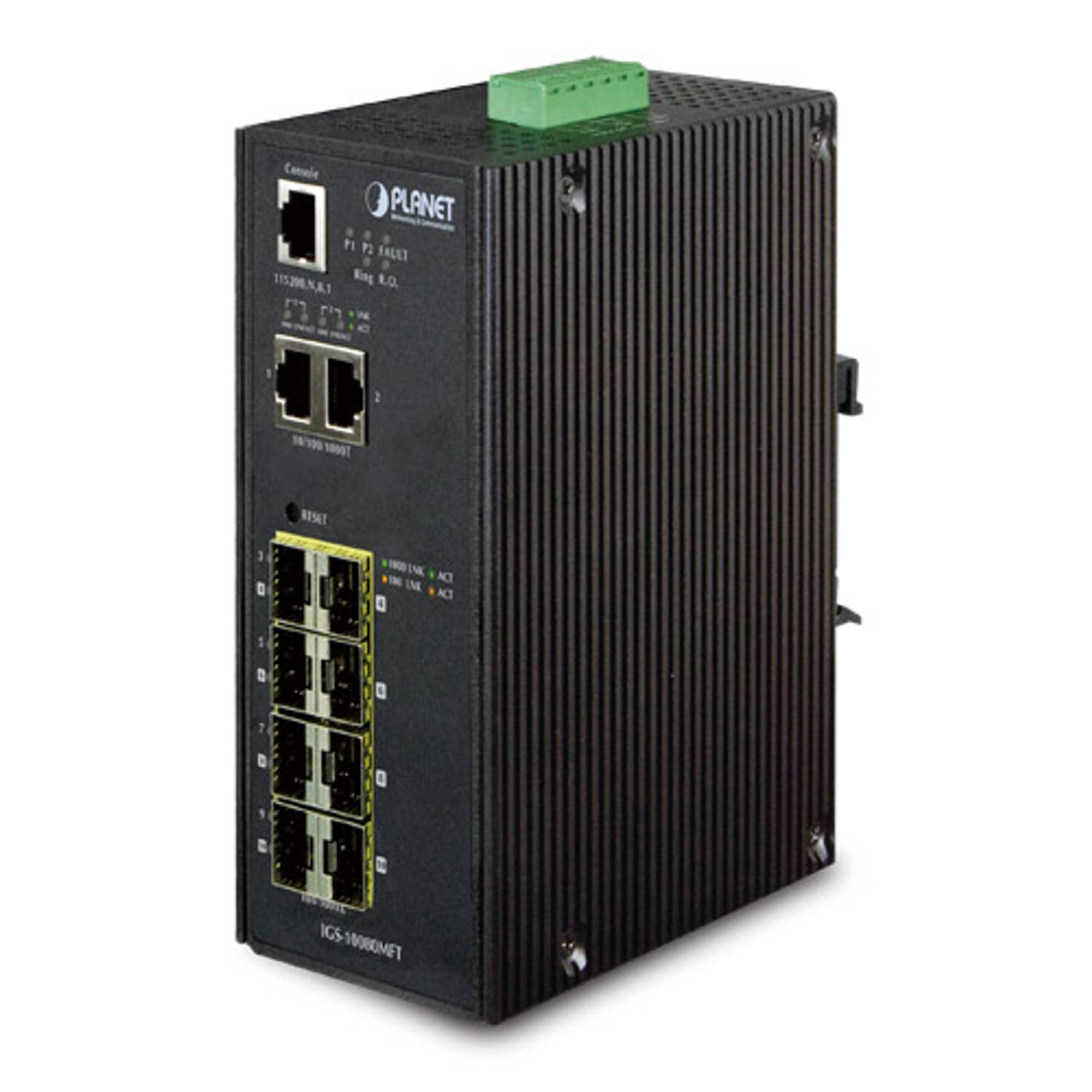

Industrial Managed Switchb

Physical Port

8 100/1000Base-SX/LX mini-GBIC SFP slots2 10/100/1000Base-T Ethernet interface

Industrial Case / Installation

- 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptableIP30 Aluminum case protectionDIN-Rail and Wall Mount DesignRedundant Power DesignSupports EFT protection 6000 VDC for power lineSupports 6000 VDC Ethernet ESD protection-40 to 75 Degree C operation temperature

Layer 2 Features

- Multicast / Unknown-Unicast- IEEE 802.1Q Tagged VLAN- Up to 255 VLANs groups, out of 4095 VLAN IDs- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Private VLAN- Protocol-Based VLAN- MAC-Based VLAN- Voice VLAN- STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN- BPDU Guard- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (Static Trunk)- Maximum 5 trunk groups, up to 10 ports per trunk group- Up to 20Gbps bandwidth(Duplex Mode)Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)High performance of Store-and-Forward architecture and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidthStorm Control supportSupports VLANSupports Spanning Tree ProtocolSupports Link AggregationProvides Port Mirror (many-to-1)Port Mirroring to monitor the incoming or outgoing traffic on a particular portSupports E.R.P.S. (Ethernet Ring Protection Switching, *Function to expect in future)

Quality of Service

- IEEE 802.1p CoS- IP TOS / DSCP / IP Precedence- IP TCP/UDP port number- Typical network applicationIngress Shaper and Egress Rate Limit per port bandwidth control8 priority queues on all switch portsTraffic classificationStrict priority and Weighted Round Robin (WRR) CoS policiesSupports QoS and In/Out bandwidth control on each portTraffic-policing policies on the switch portDSCP remarking

Multicast

Supports IGMP Snooping v1, v2 and v3Supports MLD Snooping v1 and v2Querier mode supportIGMP Snooping port filteringMLD Snooping port filteringMVR (Multicast VLAN Registration)

Security

IEEE 802.1x Port-Based / MAC-Based network access authenticationBuilt-in RADIUS client to co-operate with the RADIUS serversTACACS+ login users access authenticationRADIUS / TACACS+ users access authenticationIP-Based Access Control List (ACL)MAC-Based Access Control ListSource MAC / IP address bindingDHCP Snooping to filter un-trusted DHCP messagesDynamic ARP Inspection discards ARP packets with invalid MAC address to IP address bindingIP Source Guard prevents IP spoofing attacksLoop ProtectionIP address access management to prevent unauthorized intruder

Management

- Web switch management- Remote Telnet management- SNMP v1, v2c, and v3 switch management- SSH / SSL secure accessSwitch /Management InterfacesFour RMON groups (history, statistics, alarms, and events)IPv6 IP Address / NTP / DNS managementBuilt-in Trivial File Transfer Protocol (TFTP) clientBOOTP and DHCP for IP address assignmentFirmware upload/download via HTTP / TFTPDHCP RelayDHCP Option82User Privilege levels controlNTP (Network Time Protocol)PTP (Precision Time Protocol)Link Layer Discovery Protocol (LLDP) ProtocolCable Diagnostic technology provides the mechanism to detect and report potential cabling issuesReset button for system reboot or reset to factory defaultPLANET Smart Discovery Utility for deploy management

Hardware SpecificationSFP/mini-GBIC Slots8 100/1000Base-SX/LX mini-GBIC SFP slotsCopper Ports2 10/100/1000Base-T Ethernet interfaceSwitch ArchitectureStore-and-ForwardSwitch Fabric20Gbps / non-blockingThroughput (packet per second)14.8MppsAddress Table8K entries, automatic source address learning and ageingFlow ControlIEEE 802.3x Pause Frame for Full-Duplex. Back pressure for Half-DuplexJumbo Frame9KbytesReset Button< 5 sec: System reboot
> 5 sec: Factory DefaultESD Protection6KV DCEFT Protection6KV DCEnclosureIP30 Aluminum Metal CaseInstallationDIN Rail Kit and Wall Mount KitAlarmOne relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24VLED IndicatorsSystem:
　Power 1 (Green)
　Power 2 (Green)
　Fault Alarm (Green)
　Ring (Green) *
　R.O. (Green) *
Per 10/100/1000T RJ-45 Ports:
　1000 (Green)
　10/100, LNK/ACT (Orange)
Per SFP Interface:
　1000 LNK/ACT(Green)
　100 LNK/ACT (Orange)Dimension (W x D x H)152 x 107x 72mmWeight1036gPower RequirementDC 12 to 48V, AC 24V Power AdapterPower Consumption13.92 Watts / 47.76BTU (Full loading)Layer 2 functionBasic Management InterfacesWeb Browser, Remote Telnet, SNMP v1, v2cSecure Management InterfaceSSH, SSL, SNMP v3Port configurationPort disable/enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Auto-Detection / Forced 100/1000Mbps SFP Fiber transceiver speed
Flow Control disable / enable
Power saving mode controlPort StatusDisplay each port’s speed duplex mode, link status, Flow control status, Auto negotiation status, trunk statusPort MirroringTX / RX / Both
Many to 1 monitorE.R.P.S. Ring *Recovery time <20msVLAN802.1Q Tagged Based VLAN, up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN
MAC-Based VLAN
Protocol-Based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDsLink AggregationIEEE 802.3ad LACP / Static Trunk
Supports 5 groups of 10-Port trunkQoSTraffic classification based, Strict priority and WRR
8-Level priority for switching
　- Port Number
　- 802.1p priority
　- 802.1Q VLAN tag
　- DSCP field in IP PacketIGMP SnoopingIGMP (v1/v2/V3) Snooping, up to 255 multicast Groups
IGMP Querier mode supportMLD SnoopingMLD (v1/v2) Snooping, up to 255 multicast Groups
MLD Querier mode supportAccess Control ListIP-Based ACL / MAC-Based ACL
Up to 256 entriesBandwidth ControlPer port bandwidth control
　Ingress: 500Kb~1000Mbps
　Egress: 500Kb~1000MbpsSNMP MIBsRFC-1213 MIB-II
RFC-2236 IGMPv2
RFC-2710 MLDv1
RFC-3376 IGMPv3
RFC-2879 RMON 1, 2, 3, 9
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
IF-MIB
LLDP
MAU-MIBStandards ConformanceRegulation ComplianceFCC Part 15 Class A, CEStability TestingIEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)Standards ComplianceIEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX / 100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDPEnvironmentOperatingTemperature:-40 ~ 75 degree CRelative Humidity:5 ~ 95 % (non-condensing)StorageTemperature:-40 ~ 75 degree CRelative Humidity:5 ~ 95 % (non-condensing)* Remark: function to expect in future
