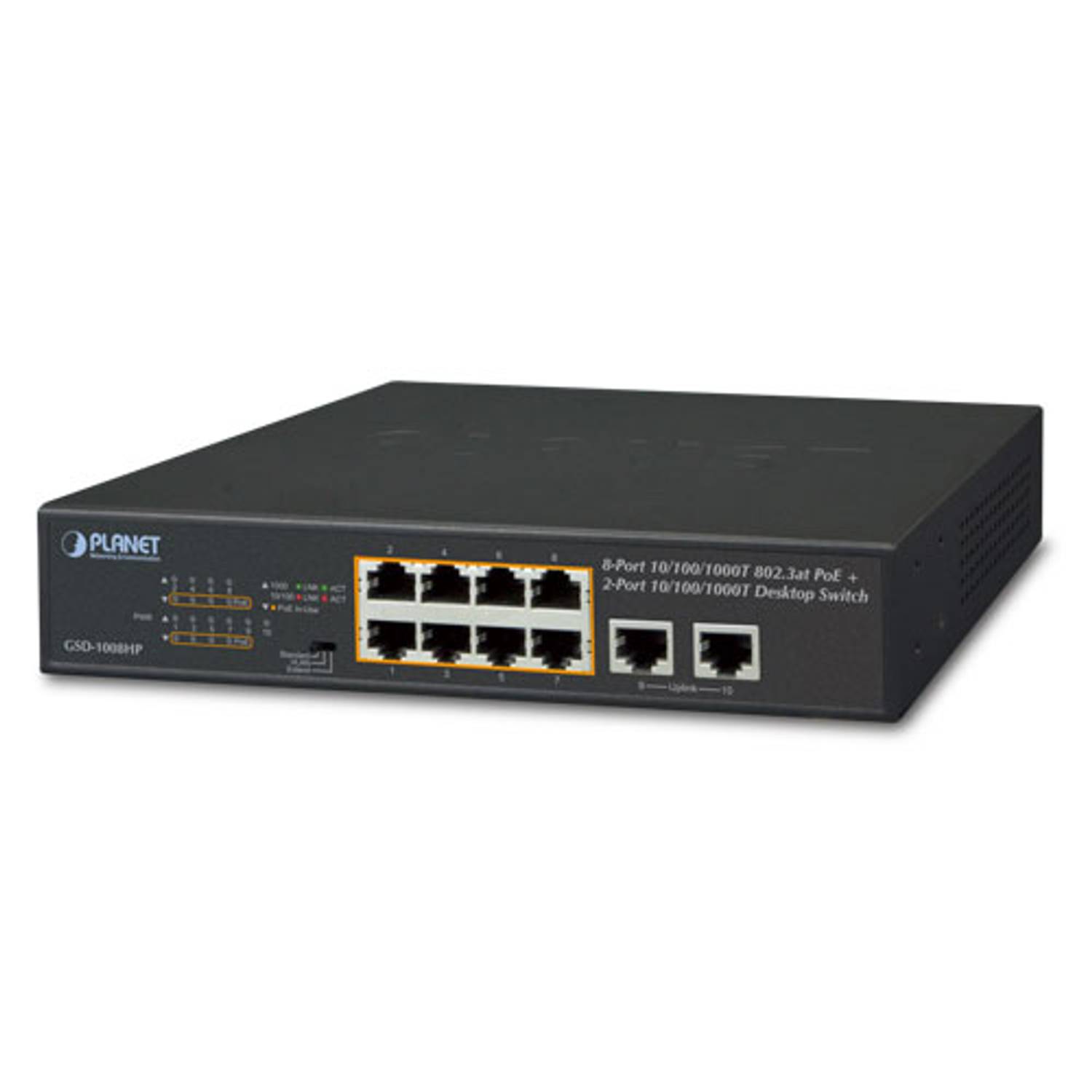

Unmanaged Desktop Switch (Unmanaged Desktop Switch)brn8-

Physical Port

10-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper8-port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)

Power over Ethernet

Complies with IEEE 802.3at Power+ over Ethernet end-span PSEUp to 8 ports of IEEE 802.3af/802.3at devices poweredSupports PoE power up to 30.8 watts for each PoE portEach port supports 55V DC power to PoE powered device120-watt PoE budgetAuto detects powered device (PD)Circuit protection prevents power interference between portsRemote power feeding up to 100m in standard mode with 250m in extended mode

Switching

Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-XFlow control for full duplex operation and back pressure for half duplex operationIEEE 802.1Q VLAN transparencyHardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation (Only for Port-1 to Port-8)Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

Hardware

9-inch desktop size, 1U height, rack mountableLED indicators for system power, per port PoE ready and PoE activity, speed, Link/ActSupports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)

Hardware SpecificationsCopper Port10 10/100/1000BASE-T MDI/MDIX PortsPoE Injector Port8-port with 802.3at/af PoE injector function with Port-1 to Port-8Switch ArchitectureStore-and-ForwardSwitch Fabric20Gbps/non-blockingSwitch Throughput@64 bytes14.88Mpps@64 bytesMAC Address Table8K entries, automatic source address learning and agingMaximum Frame Size9K bytesFlow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplexLEDSystem:
Power (Green)
10/100/1000BASE-T RJ45 interfaces:
10/100Mbps LNK/ACT (Red)1000Mbps LNK/ACT (Green)
PoE interfaces:
PoE-in-Use (Orange)DIP SwitchSelectable operation mode
StandardVLANExtendDimensions (W x D x H)220 x 150 x 43 mm (1U height)EnclosureMetalWeight1260 gPower RequirementsAC 100~240V, 50/60Hz, 2.5A max.Power Consumption/ DissipationSystem On: Max. 5.6 watts/19.1 BTU
Ethernet Full Loading: Max 10.6 watts/36.1 BTU
PoE Full Loading: Max. 139 watts/474.2 BTUESD ProtectionContact discharge of 4KV DC
Air discharge of 6KV DCThermal Fan1Power over EthernetPoE StandardIEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSEPoE Power Supply TypeEnd-spanPoE Power OutputPer port 55V DC, 540mA. max. 30 wattsPower Pin Assignment1/2(+), 3/6(-)PoE Power Budget120 wattsMax. Number of Class 2 PDs8Max. Number of Class 3 PDs8Max. Number of Class 4 PDs4Standards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEStandards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)EnvironmentOperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
