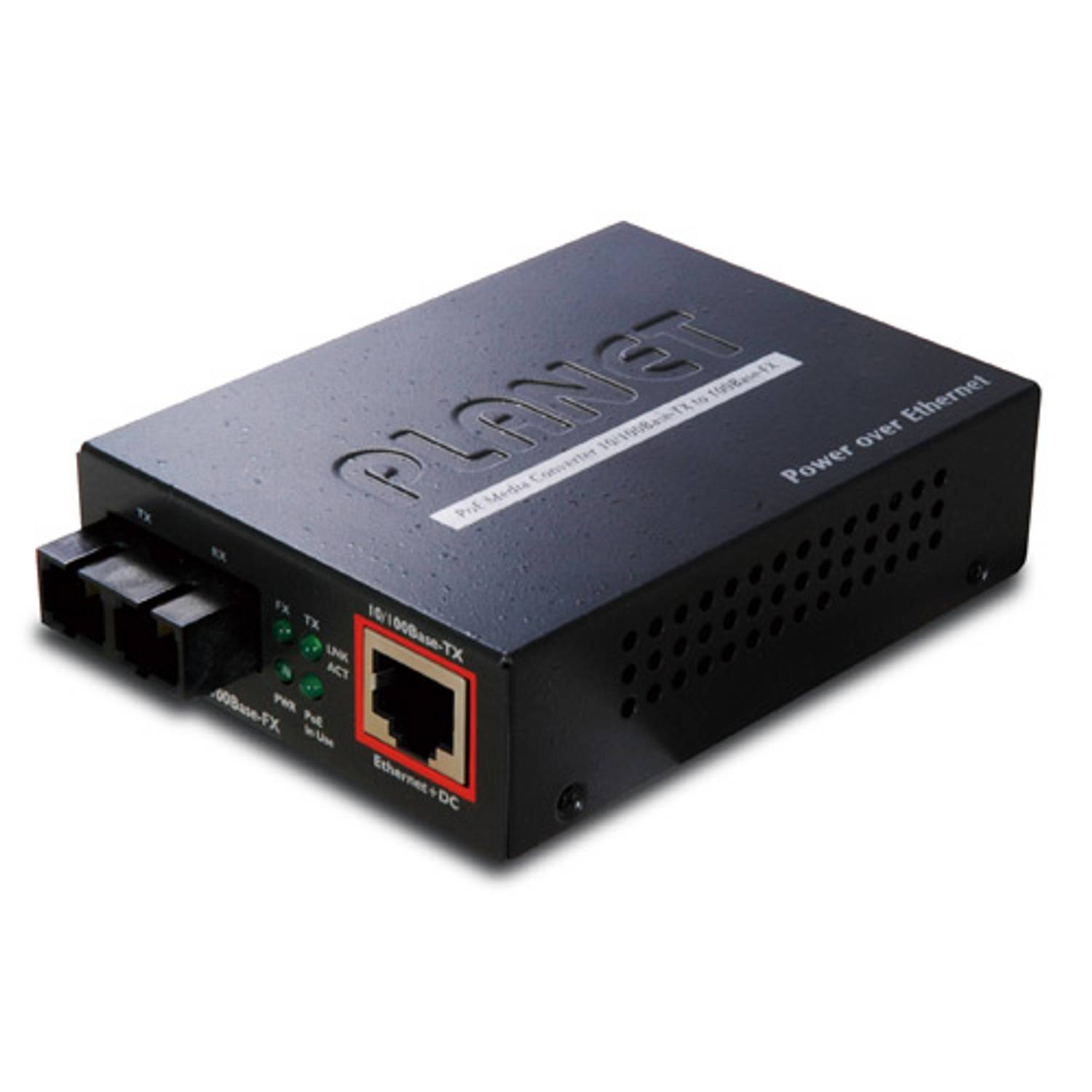

PoE Media Converterbrn100Base-FX to 10/100Base-TX (SC Multimode 2

Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX, IEEE 802.3af Power over Ethernet standardsAuto negotiation for 10/100Base-TX half duplex mode or full duplex mode, auto-MDI / MDI-X function on copper portIEEE 802.3x full duplex flow control and back pressure in half duplex eliminate packets lossProvides DC 48V power over RJ-45 Ethernet cable to devices with Ethernet portAuto-detect PoE IEEE 802.3af equipment; protects devices from being damaged by incorrect installation100Base-FX interface for up to 2km (multi-mode fiber 50µm/125µm, 62.5µm/125µm) on FTP-802DIP-switch: LFP (Link Fault Pass-through) mode selectionCompact in size, easy to installLED indicators for easy network diagnostics

InterfaceCopper1-port Fast Ethernet TP interface, auto negotiation, auto-MDI / MDI-X with PoE injector functionFiberFTP-802
　Multi-mode: 50/125µm or 62.5/125µm optical fiberFiber Port Type (connector)FTP-802 : SCCable DistanceFTP-802 : 2kmOptical FrequencyFTP-802 : 1310nmLaunch Power(dBm)FTP-802 : max.-14 min.-19.0Receive SensitivityFTP-802 : -34.5Maximum Input PowerFTP-802 : -14
Power over EthernetPoE StandardIEEE 802.3af Power over EthernetPower OutputPoE 48V DC, max. 15.4 watts, 350mAPower Pin Assignment1/2(+) , 3/6(-)Hardware SpecificationsSwitch ArchitectureStore-and-ForwardFlow ControlBack pressure for half duplex mode
IEEE 802.3x pause frame for full duplex modeLEDSystem: Power, Status
FX / LNK: Data Active, Fiber Link
TX / LNK: 10/100 Link / Active
PoE in Use: Detects PSE DeviceDimensions (H x W x D)26 x 70 x 97 mmWeight0.2 kgPower Supply48V DC, 0.4A external AC-to-DC adapterOperating Temperature0~50 degrees COperating Humidity5~90% (non-condensing)LFP ModeEnable: when either TP port or FX port is broken, shut down the other port
Disable: Link LED indicators is still on if connection of the other end is brokenStandards ConformanceRegulation ComplianceFCC Part 15 Class A, CEProtocols and Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over EthernetCablesTP: Cat 5/5e UTP cable
Fiber: Multi-mode: 50/125µm or 62.5/125µm optical fiber
Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber
