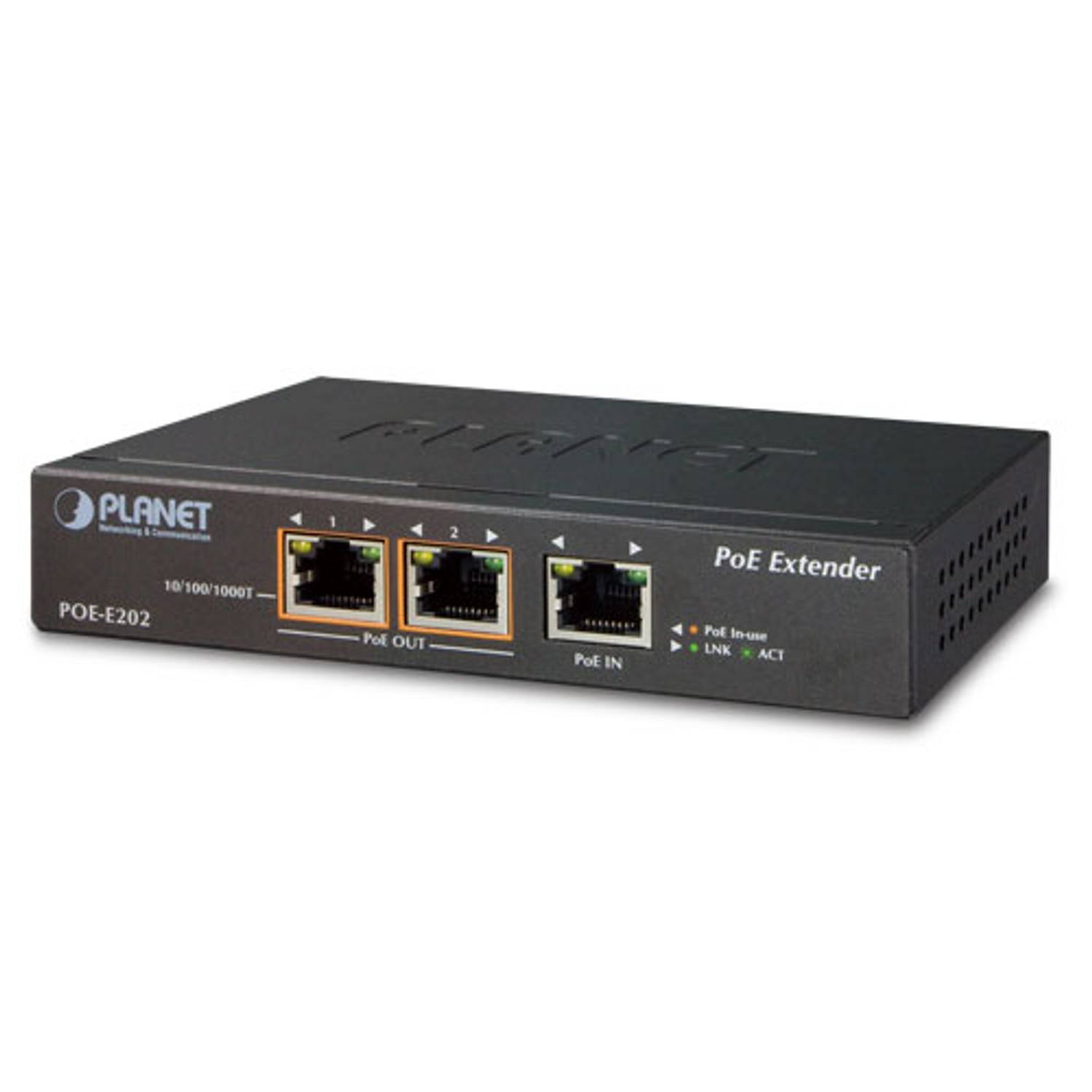

1-port 802.3at PoE+ <-> 2-port 802.3af/at Gigabit PoE+ Siny

Physical Port

- 1-port data+ power input- 2-port data+ power output 3-port 10 / 100 / 1000BASE-T Gigabit RJ45 interface

Power over Ethernet

- Supports IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD- PoE input delivers 30.8 watts of power- Supports IEEE 802.3af/IEEE 802.3at Power over Ethernet end-span PSE- Maximum of 2 IEEE 802.3af/802.3at can supply power to the device- Can supply 25 watts of power to the devices connected to the outlets- Automatically detects powered device (PD) 1-port data + power in2-port data + power out Carries the PoE signal further 100 meters in addition to Ethernet and PoE power signals at a distance delivers to devices

Layer 2 Features

10/100/1000Mbps auto-negotiation and auto MDI/MDI-X with 2K MAC address capacity10K iumbo packet supportIEEE 802.1Q VLAN supports transparencyStore-and-Forward modeIEEE 802.3x flow control feature when full duplex is running and backpressure when half duplex is runningAuto address learning and address aging support CSMA/CD protocol

Chassis and Installation

No external power cord requiredMetal chassis, compact, desktop sizeWall mountable, Plug & Play featureOperating temperature of 0 ~ 50 degrees C

InterfacesPoE IN1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE “ Data + DC power ” in
auto MDI/MDI-X, auto-negotiation RJ45 connectorPoE OUT2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “ Data + DC power ” out
auto MDI/MDI-X, auto-negotiation RJ45 connectorPower over EthernetPoE Standard “PoE In” Port
IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD
Per “PoE Out” Port
IEEE 802.3at Power over Ethernet Plus end-span PSE
IEEE 802.3af Power over Ethernet end-span PSEPoE Power Supply TypeEnd-span (Type A)PoE Power “PoE In” Port
52~56V DC, max. 30.8 watts
Per “PoE Out” Port
44~55V DC, max. 25 wattsPower Pin Assignment “PoE In” Port
1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
Per “PoE Out” Port
1/2 (+), 3/6 (-)Hardware SpecificationsData Rate10/100/1000MbpsMAC Address Table2KData Buffer2MbitsSwitch ArchitectureStore-and-ForwardSwitch Fabric6GbpsSwitch Throughput4.46Mpps @ 64 bytesJumbo Frame10KBFlow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplexLED Indicators“PoE In” Port: PoE-in-Use x 1 ( Orange ), LNK/ACT x 1 ( Green )
“PoE Out” Port 1: PoE-in-Use x 1 ( Orange ), LNK/ACT x 1 ( Green )
“PoE Out” Port 2: PoE-in-Use x 1 ( Orange ), LNK/ACT x 1 ( Green )ProtectionESD (Ethernet): 2KV (TBD)
Surge (EFT for power) : 2KV (TBD)EnclosureMetalInstallationWall mountableDimensions (W x D x H)140 x 77 x 28 mmWeight234gPower RequirementsIEEE 802.3at compliant with voltage within 52V-56V DCPower Consumption1.6 watts/5.5BTU (System on with PoE input )
2.2 watts/7.5BTU (Ethernet full loading without PoE function)
36 watts/122.8BTU (Full loading with PoE function)Network Cable10BASE-T: 4-pair UTP Cat. 5 up to 100m (328ft)
100BASE-TX: 4-pair UTP Cat. 5 up to 100m (328ft)
1000BASE-T: 4-pair UTP Cat. 5e, 6, up to 100m (328ft)
EIA/TIA-568 100-ohm STP (100m, 328ft)Standard ConformanceRegulatory ComplianceFCC Part 15 Class A, CEStandard ComplianceIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3x Flow ControlEnvironmentOperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
