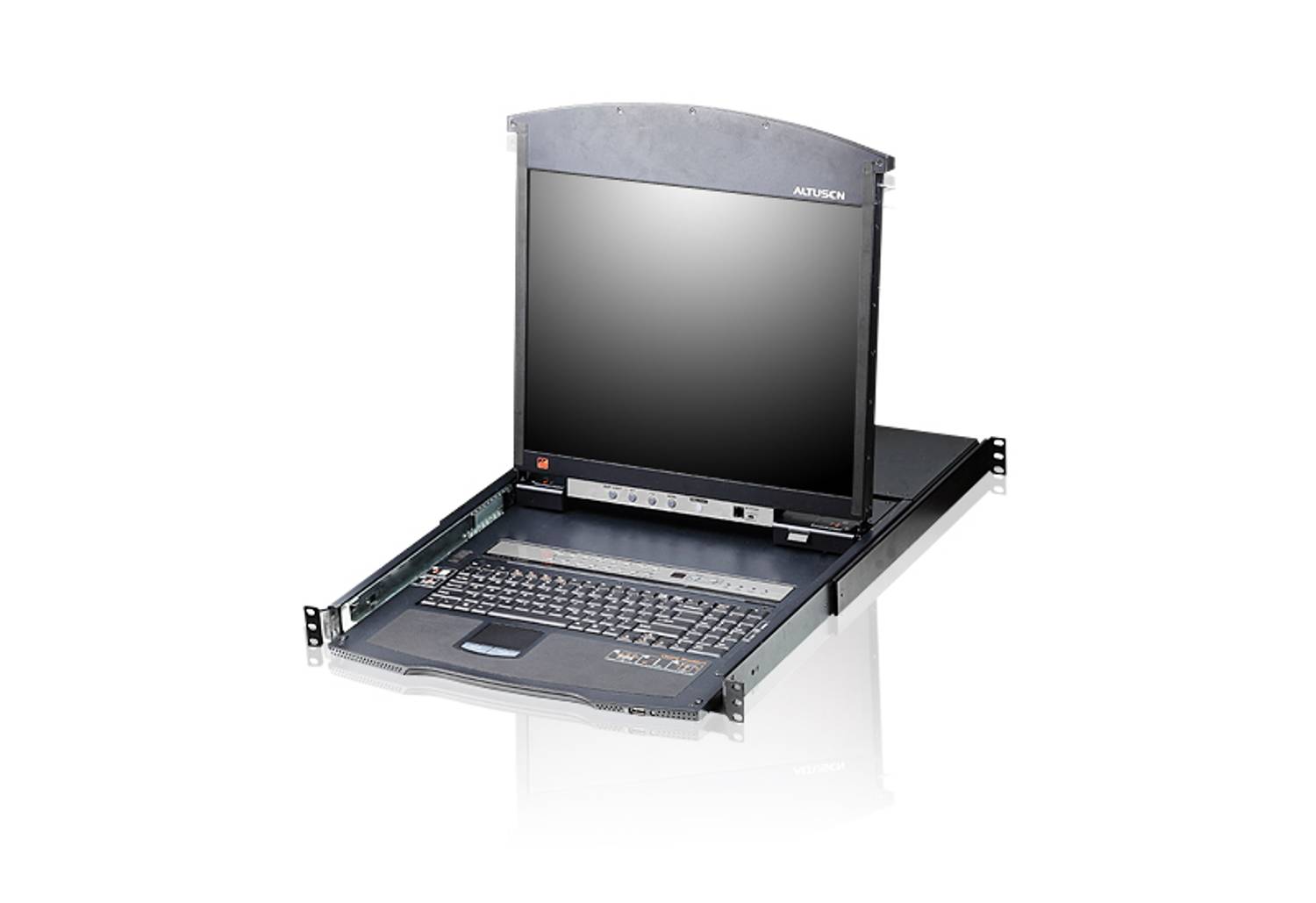

8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with LED Console, Supports Up to 256 Computers, 120-Degree Adjustable LCD, Enhanced Security Features

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditionsKVM console with 17" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high rackDual Rail operation - LCD monitor slides independently of the keyboard/touchpadLCD module rotates up to 120 degrees for a more comfortable viewing angleConsole lock enables the sliding console to remain securely locked away when not in useA single console controls up to 8 computers - daisy chain up to 31 additional units to control up to 256 computersKVM adapter cables with automatic conversion allow flexible interface combinations. PCs, Macs, Sun computers, and serial devices can all coexist on the installation.RJ-45 connectors and Cat 5e/6 cable - extends the distance between computers and switch - up to 40m (130') for resolutions of 1280 x 1024 @75HzA dedicated console port for management from an external console - plus an extra PS/2 mouse port for external mouse use with the integrated LCD consoleNo software required - convenient computer selection via port selection switches, Hotkeys and intuitive On Screen Display (OSD) menusOSD screen automatically adjusts to resolution changes - OSD tree structure makes finding and managing computers easyQuickly and conveniently switch to any computer with station and port selection switches - LED displays indicate the station and port locationVideo settings of attached computers are automatically adjusted for optimal output to the LCD monitorAuto Scan feature for monitoring user-selected computersTwo level password security - only authorized users view and control the computers - up to four users plus an administrator with separate profiles for eachBroadcast support - commands from the keyboard can be broadcast to all available computers on the installationStandard 105-key keyboard; Mac and Sun keyboard emulationDedicated keys to invoke Hotkey Mode and the OSD from the keyboard for quick access to these functionsRack mountable in 19" System Rack (1U) - standard rack mount kit included - optional Easy Rack Mount (single person installation) kit available (requires separate purchase)Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional ChineseSuper A-Grade TFT LCD Panel; Zero Dead Pixel GuaranteeMultiplatform support: Windows 2000/XP/Vista, Mac, Linux, Unix, Sun, FreeBSD

Compatible KVM Adapter Cables:
KA7970USB VGA KVM Adapter (5M Cable)
KA7570USB VGA KVM Adapter
KA7170USB VGA KVM Adapter with Composite Video Support
KA7169USB DisplayPort Virtual Media KVM Adapter with Smart Card Support
KA7168USB HDMI Virtual Media KVM Adapter with Smart Card Support
KA7166USB DVI Virtual Media KVM Adapter with Smart Card Support

Package Contents

1x 8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit1x Firmware Upgrade Cable1x Power Cord (6ft.)1x User Manual1x Quick Start Guide

Console ConnectorsSecondary Console1 x USB Type A Female, 1 x 6-pin Mini-DIN FemaleLEDsPower On1 (Blue)On Line8 (Green)Station ID2 x 7 Segment (Red)Selected8 (Red)Port SelectionHotkeys ; OSD; Push ButtonPower Consumption120V/24W; 230V/24WScan Interval1 - 255 secsEmulationKeyboardPS/2, USB, SerialMousePS/2, USB, SerialComputer ConnectionsDirect8Daisy Chain or Cascading256 (Daisy Chain)Daisy Chain1 x DB-25 MaleCPU ConnectorsKeyboard, Mouse, and Monitor8 x RJ-45Flash ROM Upgrade1 x RJ11Video Resolution1280x 1024@ 75Hz; DDC2BEnvironmentOperation Temperature32~104F (0~40 C)Storage Temperature-4~140F (-20~60 C)Humidity0~80% RH, Non-condensingPhysical PropertiesUnit Weight33.48 lbs.Unit Dimension18.89 x 27.60 x 1.73 in.Unit Weight with package46.2 lbs.Case Dimension32.5x 5.1x 26.5 in.Case Weight51.2 lbs.Case Qty1
