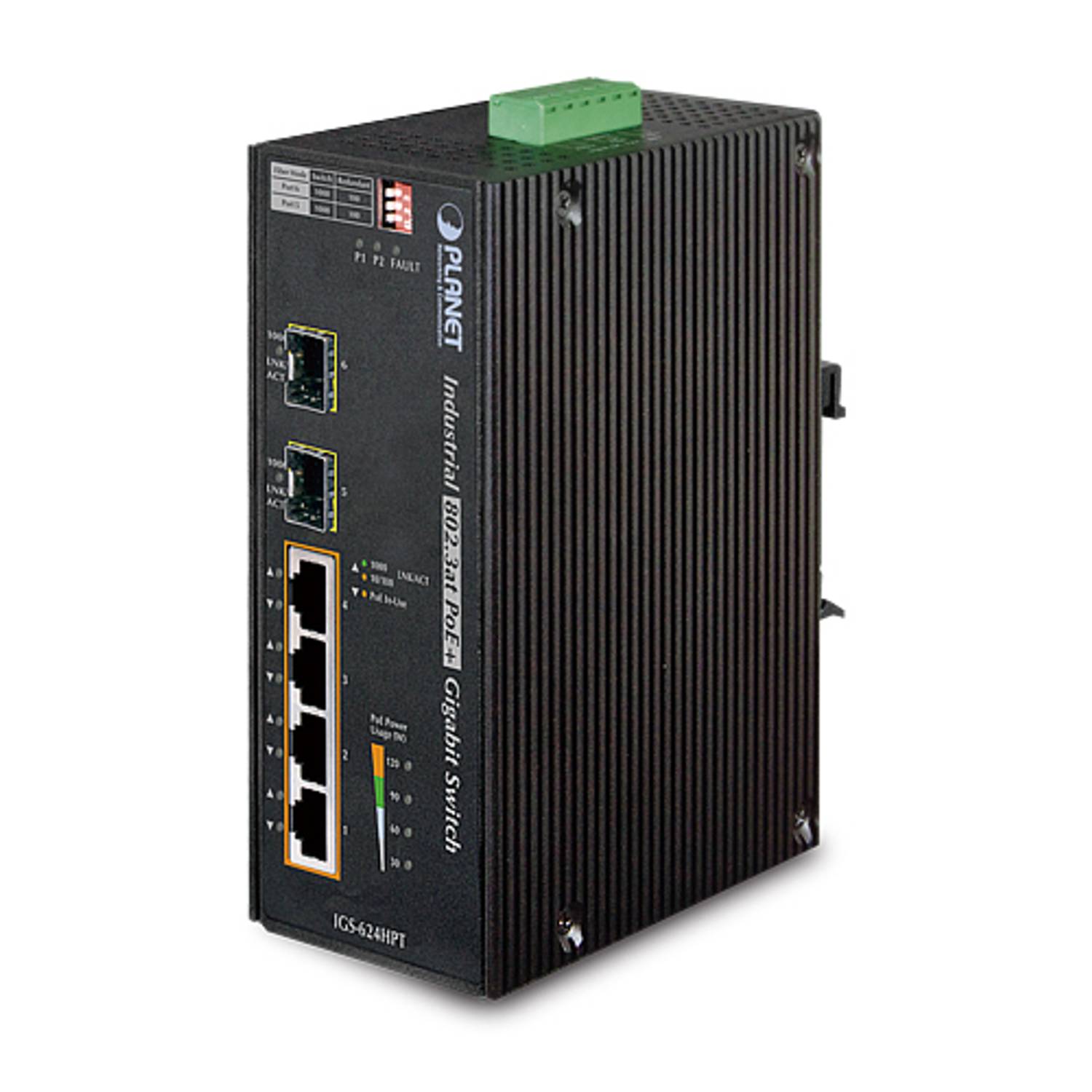

Industrial Unmanaged PoE+ Switch (Industrial Unmanaged P

Physical Port

4-port 10/100/1000Base-T RJ-45 with IEEE 802.3af / 802.3at PoE Injector2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured

Power over Ethernet

Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet Plus End-Span PSEUp to 4 IEEE 802.3af / 802.3at devices poweredSupports PoE Power up to 30.8 watts for each PoE portProvides DC 52V power over RJ-45 Ethernet cable to PD with Ethernet portAuto-detects EEE 802.3af/at equipment and protects devices from being damaged by incorrect installationRemote power feeding up to 100m

Layer 2 Features

Supports Auto-Negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex modePrevents packet loss with back pressure (half-duplex) and IEEE 802.3x PAUSE frame flow control (full-duplex)Automatic address learning and address aging

Industrial Case / Installation

IP30 aluminum metal case protectionDual SFP Ports Auto Link Redundant Mode SupportDIN Rail and Wall Mount Design48V DC redundant power with polarity reverse protect function and removable terminal block for master and slave powerSupports EFT protection 6000 VDC for power lineSupports 6000 VDC Ethernet ESD protection-40 to 75 degrees C operating temperature

Hardware SpecificationsCopper Ports4 x 10/100/1000Base-T RJ-45 TP
Auto-MDI/MDI-X, Auto-NegotiationSFP / mini-GBIC Slots2 x SFP interfaces
Supports 1000Base-SX/LX and 100Base-FX SFP transceiversDIP SwitchDIP-1: SFP Port 5 1000Base-X (default) / 100Base-FX
DIP-2: SFP Port 6 1000Base-X (default)/ 100Base-FX
DIP-3: Switch mode / Fiber Redundant modeConnectorRemovable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2AlarmProvides one relay output for power fail
Alarm Relay current carry ability: 1A @ DC 24VLED3 x LED for System and Power:
　■ Green: DC Power 1
　■ Green: DC Power 2
　■ Green: Power Fault
2 x LED for Per Copper Port (Port-1~Port-4):
　■ Green: 1000 LNK/ACT, Orange:100 LNK/ACT
　■ Orange: PoE In-use
1 x LED for Per mini-GBIC interface (Port-5 and Port-6):
　■ Green: LNK/ACT
4 x LED for PoE Power Usage (W):
　■ Orange: 30, 60, 90 and 120WESD Protection6KV DCEFT Protection6KV DCEnclosureIP30 aluminum metal caseInstallation TypeDIN rail kit or wall mountDimensions (W x D x H)152 x 107x 72 mmWeight1539gPower Requirements48V DC, 5A max.
Redundant power with polarity reverse protection functionPower Consumption / Dissipation15.1 watts / 52 BTU (System loading without PoE)
135.1 watts / 461 BTU (Full loading with PoE function)Power over EthernetPoE StandardIEEE 802.3af / IEEE 802.3at Power over Ethernet / PSEPoE Power Supply TypeEnd-SpanPower Pin Assignment1/2(+), 3/6(-)PoE Power OutputPer port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af)
Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at)Max. number of Class 4 PD4Switch SpecificationSwitch Processing SchemeStore-and-ForwardAddress Table1K entriesFlow ControlBack pressure for half duplex
IEEE 802.3x Pause Frame for full duplexSwitch fabric12GbpsThroughput (packet per second)8.93Mpps@64bytesMaximum Transmit Unit9216 bytesSpeedSX/LX: 2000Mbps (full-duplex)
FX: 200Mbps (full-duplex)
TP: 10/20Mbps, 100/200Mbps, 2000MbpsStandards ConformanceStandards ComplianceIEEE 802.3 Ethernet / 10Base-T
IEEE 802.3u Fast Ethernet / 100Base-TX
IEEE 802.3ab Gigabit Ethernet / 1000Base-T
IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over EthernetRegulation ComplianceFCC Part 15 Class A, CEStability TestingIEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)EnvironmentTemperatureOperating:-40~75 degree CStorage:-40~75 degrees CHumidityOperating:5~95% (Non-condensing)Storage:5~95% (Non-condensing)
