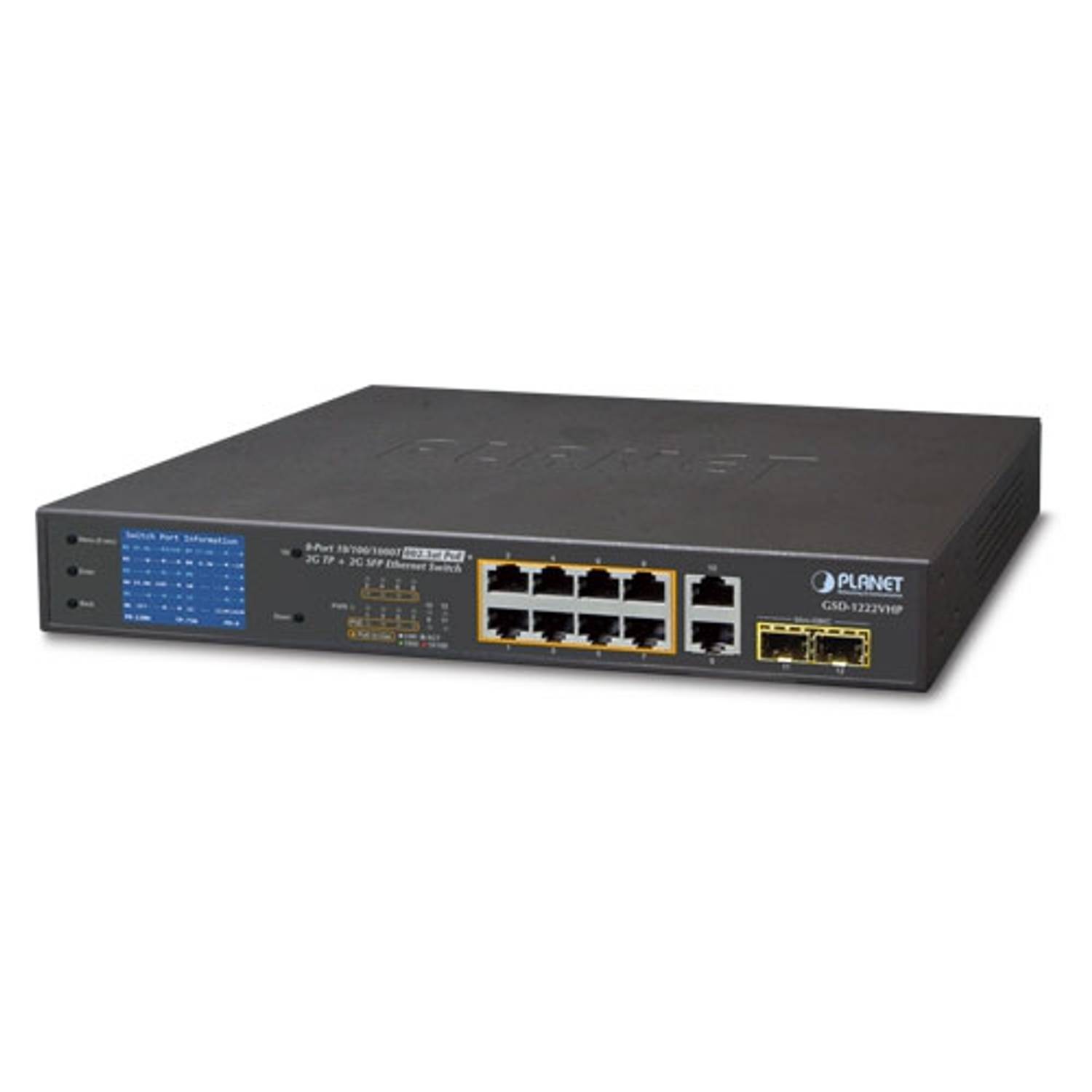

8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 10

Physical Port

8-port 10/100/1000BASE-T Gigabit RJ45 copper2 1000BASE-X mini-GBIC SFP interfaces2 10/100/1000BASE-T TP interfaces

Power over Ethernet

Complies with IEEE 802.3af/at Power over Ethernet end-span PSEUp to 8 ports of IEEE 802.3af/802.3at devices poweredSupports PoE power up to 32 watts for each PoE portEach port supports 54V DC power to PoE powered device120-watt PoE budgetAuto detects powered device (PD)Circuit protection prevents power interference between portsRemote power feeding up to 100m in standard mode and 250m in extend mode

Smart LCD

The LCD switch features “Standard”, “VLAN” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolationThe LCD switch is able to isolate ports to prevent broadcast storm and defend DHCP spoofingPower low-voltage, power over-voltage and PSE over-temperature protectionScreen saver, fan control, factory default and save configurationPoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD alive check

Switching

Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-XFlow control for full duplex operation and back pressure for half duplex operation9216bytes packet sizeIntegrates address look-up engine, supporting 8K absolute MAC addressesIEEE 802.1Q VLAN transparencyAutomatic address learning and address aging

Hardware

12-inch desktop size, 1U height, rack mountable2-inch color LCD with smart management functionsLED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act1 silent fan to provide stable and efficient power performanceSupports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)Supports contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protectionSupports ±6KV surge immunityHardware Specifications802.3af/802.3at PoE Injector Port810/100/1000BASE-T MDI/MDIX Ports810/100/1000BASE-T MDI/MDIX Ports21000BASE-X SFP/mini-GBIC Slots2Switch ArchitectureStore-and-ForwardSwitch Fabric24Gbps/non-blockingSwitch Throughput@64 bytes18Mpps@64 bytesMAC Address Table8K entriesMaximum Frame Size9216 bytesFlow ControlIEEE 802.3x pause frame for full duplex; back pressure for half duplexLEDSystem:
Power (Green)

PoE interfaces:
PoE-in-Use (Orange)

10/100/1000BASE-T RJ45 Interfaces:
10/100Mbps LNK/ACT (Red)
1000Mbps LNK/ACT (Green)

1000BASE-X SFP Interfaces:
LNK/ACT (Green)LCD Monitor (W x D)40.6mm x 30.5mm, 2-inchButtonsMenu, Enter, Back, Up and DownDimensions (W x D x H)180 x 280 x 44mm (1U height)EnclosureMetalWeight1.8kgPower Requirements100~240V AC, 50/60Hz, 2.5A max.Power Consumption/DissipationMax. 130watts/446 BTUThermal Fan1ESD ProtectionContact discharge of ±6KV DC
Air discharge of ±8KV DCSurge Protection±6KVPower over EthernetPoE StandardIEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSEPoE Power Supply TypeEnd-spanPoE Power OutputPer port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at)Power Pin Assignment1/2 (+), 3/6 (-)PoE Power Budget120 wattsMax. Number of Class 2 PDs8Max. Number of Class 3 PDs8Max. Number of Class 4 PDs4Standards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEStandards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)EnvironmentOperatingTemperature: -10 ~ 60 degrees C
Relative Humidity: 10 ~ 90% (non-condensing)
* Temperature<40 degrees C; Humidity<90%
Temperature>40 degrees C; Humidity<50%StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
