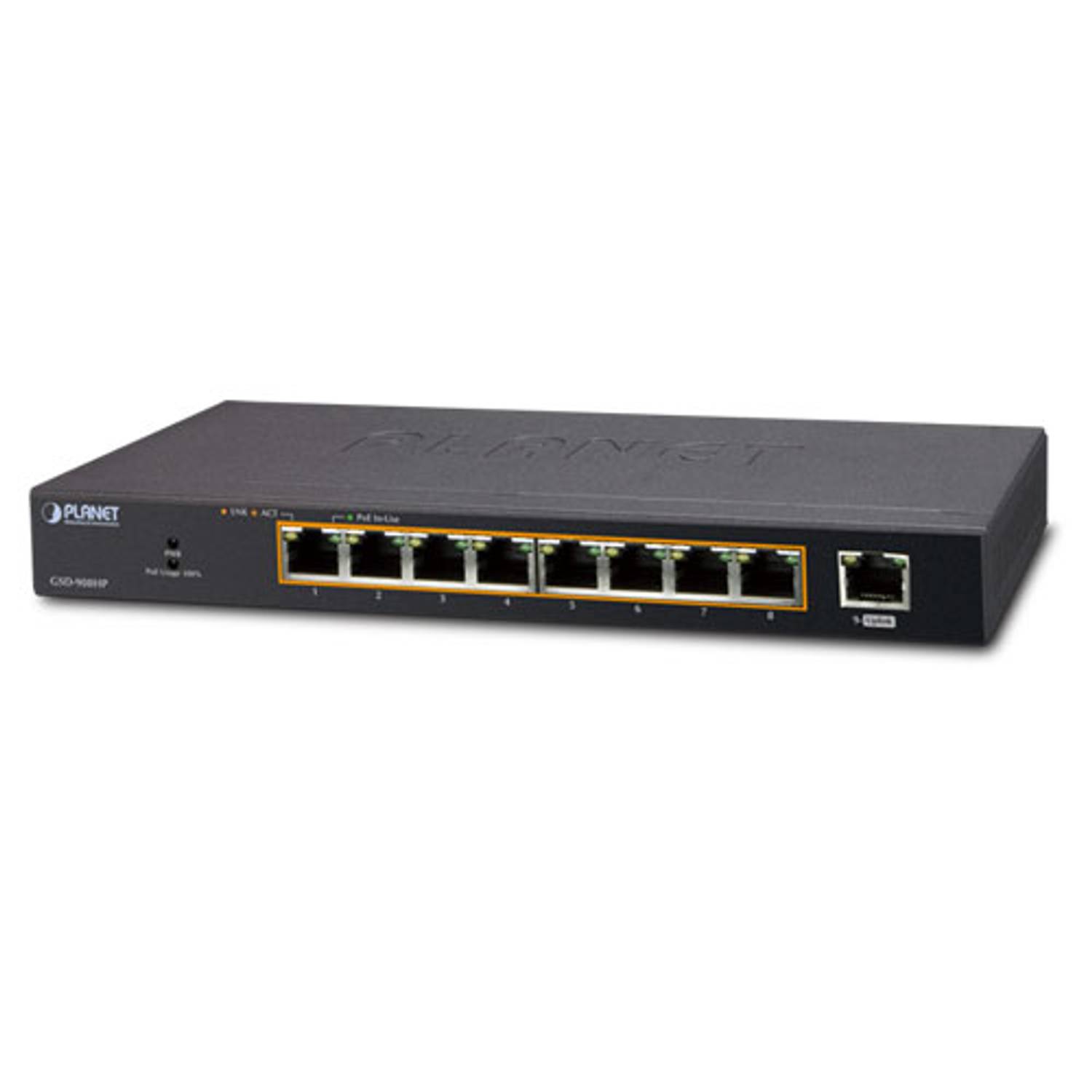

Unmanaged Desktop Switchbrn8-Port

RJ45 Interface

Compatible with EEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T standards9-Port 10/100/1000Mbps Gigabit Ethernet Switch8-Port supplies 51V DC power to PoE powered devices (Port 1 through port 8 between)

Power over Ethernet

Compatible with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE standardsCan feed a maximum of 8 IEEE 802.3af devicesEach port provides 15.4 watt power supplyCan feed a maximum of 4 IEEE 802.3at devicesEach PoE port can supply 30 watts of powerHas a 100-watt PoE power budget Powered by electricity Automatically detects (Powered device/PD) devices. It has circuit protection to prevent interference between ports. Power is supplied up to a distance of 100 meters.

Switch Features

Operates at 10/100, operates in half/full duplex and 1000Mbps full duplex mode, has flow control and automatic recognition and automatic MDI/MDI-X portsStore-and-Forward mode has wire-speed filtering and forwarding speeds when operating in full duplex Supports IEEE 802.3x flow control and half duplex back pressure while running Has 4000 MAC address capacity 192 KB packet buffer 1000Mbps 9K Jumbo frame capacity in duplex mode Automatic address learning and address aging feature Supports CSMA/CD protocols

Equipment

Metal chassis, desktop size and wall mountableIt is possible to obtain information about the operation of the device thanks to the LED lights, PoE usage 100%, which port supplies PoE power51V DC, 2A external power adapterFCC, CE Class A compliant

Hardware FeaturesNetwork Connectors9-Port RJ45 10/100/1000BASE-TPoE Injector Port8-Port 802.3af/802.3at PoE injector enabledLED Indicator System :
Power (Green Color), PoE Usage 100% (Green Color)
PoE port :
PoE (Green Color), port 1 to port 8
LNK/ACT (Orange Color), between port 1 and port 9Switch ArchitectureStore and forwardMAC Address Table4000Data Buffer192 KBSwitch Structure18GbpsSwitch Throughput Speed13.3Mpps@64bytesFlow ControlBack pressure for half duplex. IEEE 802.3x Pause Frame Full DuPlex for GÜNİMİDC 51V 51V, 2A maximum consumption100 Watt/341Btububoyutlar (E x b x y) 103 x 235 x 27 mmAğırlık628gpower over ethernetpo Standard POE POWER OUTPUTher Port 51V DC, 350mA. max. 15.4 watts
Each port 51V DC, 600mA. max. 30 wattsPower Pin Mapping1/2(+), 3/6(-)PoE Power Budget100 wattsMax. Number of Devices That Can Be Powered by Class 2 Electricity8Max. Number of Class 3 Electrical Powered Devices: 7Max. Class 4 Number of Powered Devices3Standard ComplianceEMI SafetyFCC Class A, CEStandard ComplianceIEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
ethernet
Fast Ethernet
Gigabit Ethernet
Flow Control
Power over Ethernet
Power over Ethernet PlusEnvironmental FeaturesTemperature of Operating Environment0 ~ 50 degreesTemperature of Storage Area-10 ~ 70 degreesHumidity Rate5 ~ 95%
