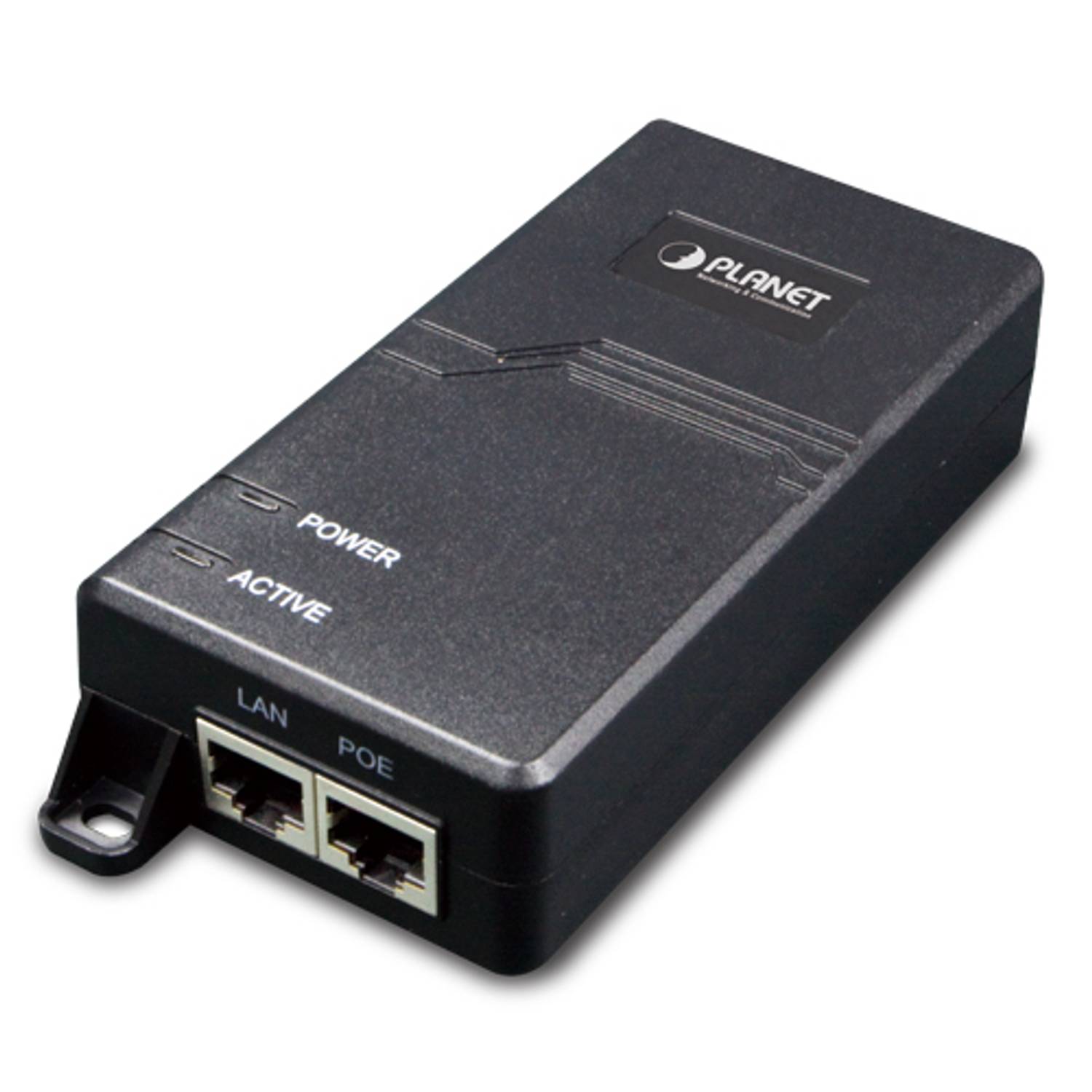

60-watt Ultra Power over Ethernet Injector (10/100/1000Mbps, 4-Pa

Interface

- 1-Port 10/100/1000Mbps Data + Power output - 1-Port 10/100/1000Mbps Data input2 x RJ-45 interface1 x AC 100-240V input power socket

Power over Ethernet

Ultra Power over Ethernet PSE4-max. 60 watt power supply Supports backward-facing IEEE 802.3at/af PD devices Automatically detects PoE IEEE 802.3at/af devices Power supply distance is limited to 100 meters

Equipment

Compact design. It is possible to obtain information about the operation of the device thanks to the LED lights with internal power supply.

Hardware SpecificationsInterface LAN: 1 x RJ-45 STP, “Data” Input Port
POE: 1 x RJ-45 STP, “Data + Power” Output Port
AC Connector: 1 x AC Input power socket, IEC-320 C6Network CableUltra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 max. 100m (328ft)
802.3af/at PoE(15W/30W): 2-pair UTP Cat. 3, 4, 5, max. 100m (328ft) LED Lights System: Power x 1 (Green Color)
PoE Port: Active, PoE ready / In Use x 1 (Green Color)Data Rate10/100/1000MbpsDimensions (W x L x H)115 x 62.5 x 31mmWeight227gOutput VoltageDC 50-57V, 1.2APower Requirement100-240V AC @50/60Hz, 1.5A maximum Power Consumption Maximum 60 watts Power over EthernetPoE StandardUltra PoE over 4-pair UTP,
High Power over Ethernet End-Span / Mid-Span PSEPoE Power Supply TypeEnd-Span + Mid-SpanPower Pin MappingDual 1 End-Span: 1/2(+), 3/6(-)
Dual 2 Mid-Span: 4/5(+), 7/8(-)PoE Power OutputDC 50-57V/60-watt PoE 4-over dual
DC 50V-57V/30-watt PoE 2-over-pairStandards ComplianceStandards ComplianceIEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit EthernetRegulatory ComplianceFCC Part 15 Class B, CEEnvironmental SpecificationsOperating Temperature0 ~ 50 degrees CTemperature of Storage Area -10 ~ 70 degrees CHumidity Rate of Storage Area5 ~ 95%, Relative Humidity, non-condensing
