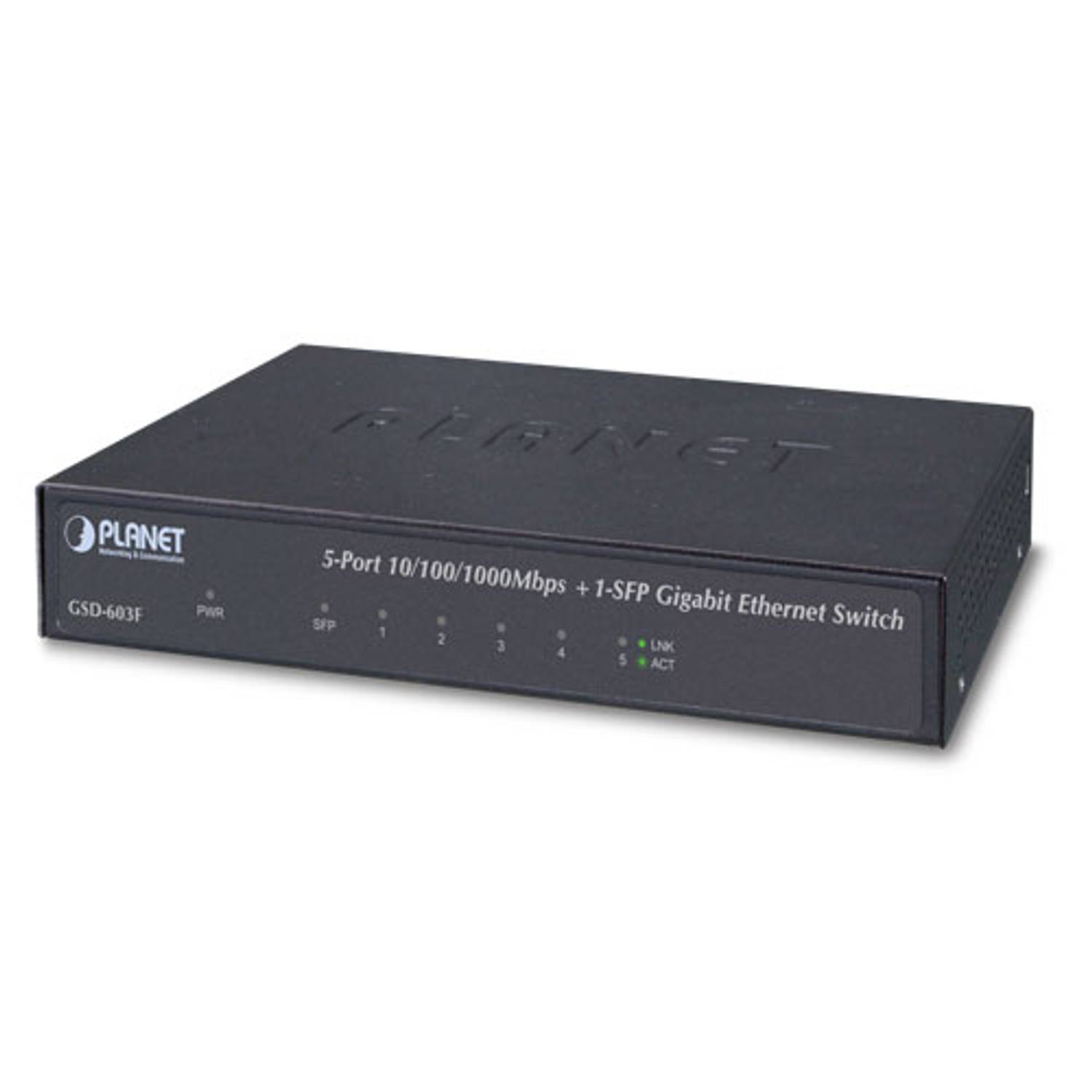

Unmanaged Switchbrn5-Port 10/100/1000BASE-Tbrn1-Port 1000BASE-X S

External power adapter 5V DC, 1.0ADual Energy-saving technology- Link down power saving- Intelligent scales power based on cable lengthComplies with IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3z 1000BASE-XIEEE 802.3x, full-duplex flow control compliant; back-pressure, half-duplex flow controlFive 10/100/1000Mbps Gigabit Ethernet portsOne SFP portPer port auto-MDI, MDI-X detection2K MAC address table auto-aging9K jumbo packet size supportFeatures Store-and-Forward mode with wire-speed filtering and forwarding ratesNon-blocking, Store and Forward switching architectureAutomatic source address learning and agingPower saving ability for Green networkingCompact size, wall-mountable designMetal case, good for heat sinkingEasy installation; ideal solution for space-limited locations

Hardware SpecificationsPorts5 10/100/1000BASE-T RJ45 auto-MDI/MDI-X portsSFP/mini-GBIC Slot1 1000BASE-XDimension (W x D x H)162 x 102 x 28 mmWeight398gPower RequirementDC 5V, 1A external powerPower ConsumptionSystem on: Max. 0.6 watts/2.04 BTU @ DC 5V
Ethernet Full Loading: Max. 4.1 watts/13.99 BTU @ DC 5VEnclosureMetalSwitch SpecificationsSwitch Processing SchemeStore-and-ForwardAddress Table2K entriesShared Data Buffer1.5MbitsFlow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplexSwitch Fabric12GbpsThroughput (packet per second)8.9MppsJumbo Packet Size9KStandards ConformanceStandards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Fiber Ethernet
IEEE 802.3x Full-duplex flow control
IEEE 802.3az Energy Efficient Ethernet (EEE)EnvironmentTemperatureOperating: 0~50 degrees C
Storage: -40~70 degrees CHumidityOperating: 10~90% (non-condensing)
Storage: 5~90% (non-condensing)
