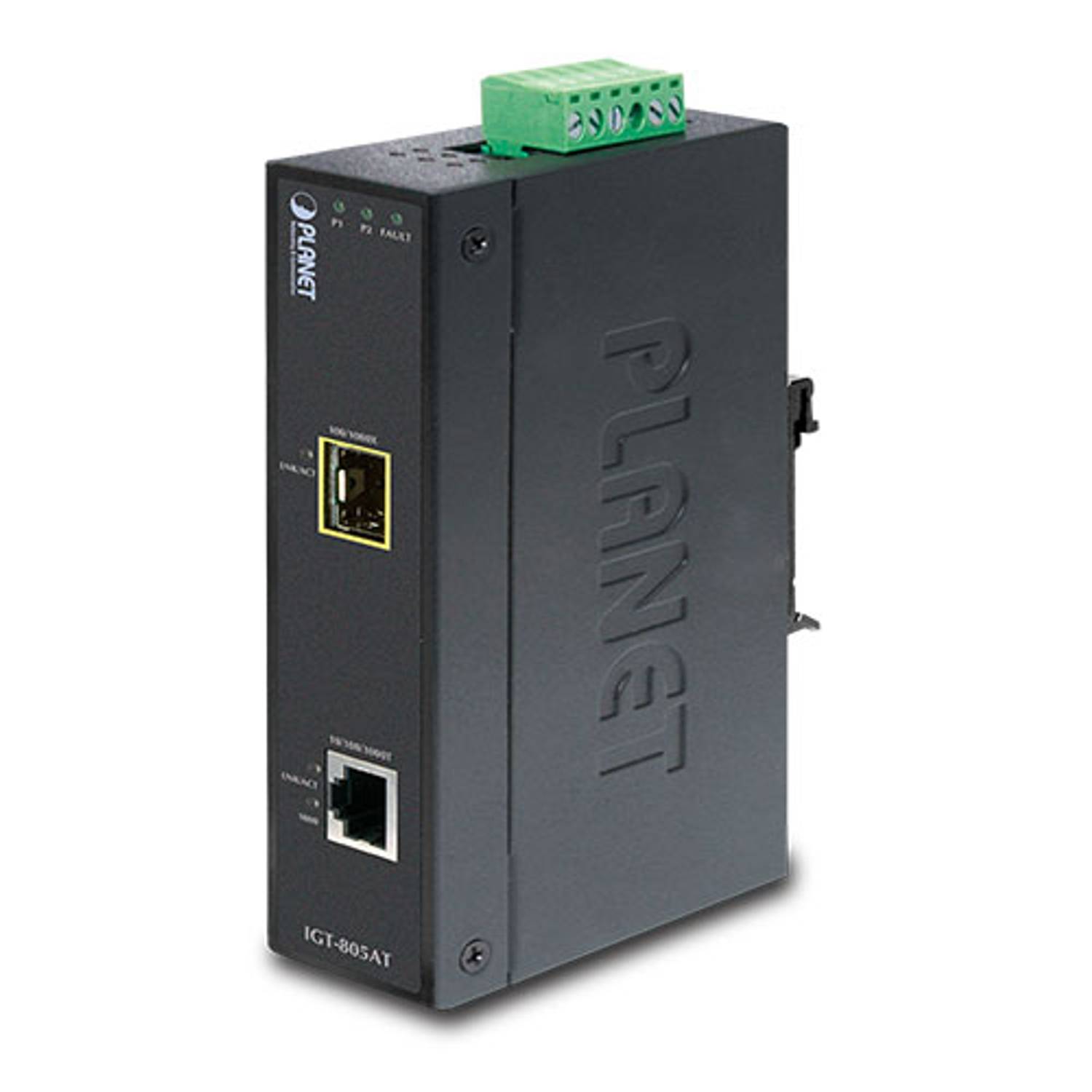

Industrial Type Managed Media Converterbrn1 x 10/100/1000BA

Physical Port

1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function1 SFP interface, 100/1000BASE-X dual mode (auto detection)

Layer 2 Features

IEEE 802.3 / 802.3u / 802.3ab / 802.3z Ethernet standard compliantSupports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex modePrevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)9K jumbo frame size supportLFP function supportAutomatic address learning and address aging

Industrial Case / Installation

- 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptableSlim-type IP30 metal caseDIN rail and wall-mount designRedundant power designSupports EFT protection for 6000 VDC for power lineSupports 6000 VDC Ethernet ESD protection-40 to 75 degrees C operating temperature

Hardware SpecificationsCopper Interface1 x 10/100/1000BASE-T RJ45 TP
Auto-MDI/MDI-X, auto-negotiationFiber Optic Interface1 1000BASE-SX/LX/BX SFP interface.
Compatible with 100BASE-FX SFPConnectorRemovable 6-pin terminal block
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2AlarmProvides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24VLED3 x LED for System and Power:
■ Green: DC Power 1
■ Green: DC Power 2
■ Green: Power Fault
2 x LED for Per Copper Port:
■ Green: LNK/ACT
■ Green:1000
1 x LED for Per Mini-GBIC Interface
■ Green: LNK/ACTESD Protection6KV DCEFT Protection6KV DCEnclosureIP30 type metal caseInstallationDIN rail kit and wall mount earDimensions (W x D x H)135 x 87 x 32 mmWeight458gPower RequirementsDC 12~48V, redundant power with polarity reverse protection function.
AC 24V power adapterPower Consumption / Dissipation3.3 watts/11BTUConverter SpecificationsFlow ControlBack pressure for half duplex.
IEEE 802.3x pause frame for full duplexFabric4GbpsThroughpu (packet per second)2.97Mpps@64bytesMaximum Transmission Unit9216 bytesNetwork Cables10/100/1000BASE-T:
Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.)
EIA/TIA-568 100-ohm STP (100 meters, max.)
1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m (varying on SFP module)
1000BASE-LX:
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/60/70/120 kilometers (varying on SFP module)
100BASE-FX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to
2 kilometers (varying on SFP module)
9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers (varying on SFP module)Standards ConformanceStandards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet
IEEE 802.3x full-duplex flow controlRegulation ComplianceFCC Part 15 Class A, CEStability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)EnvironmentTemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees CHumidityOperating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
