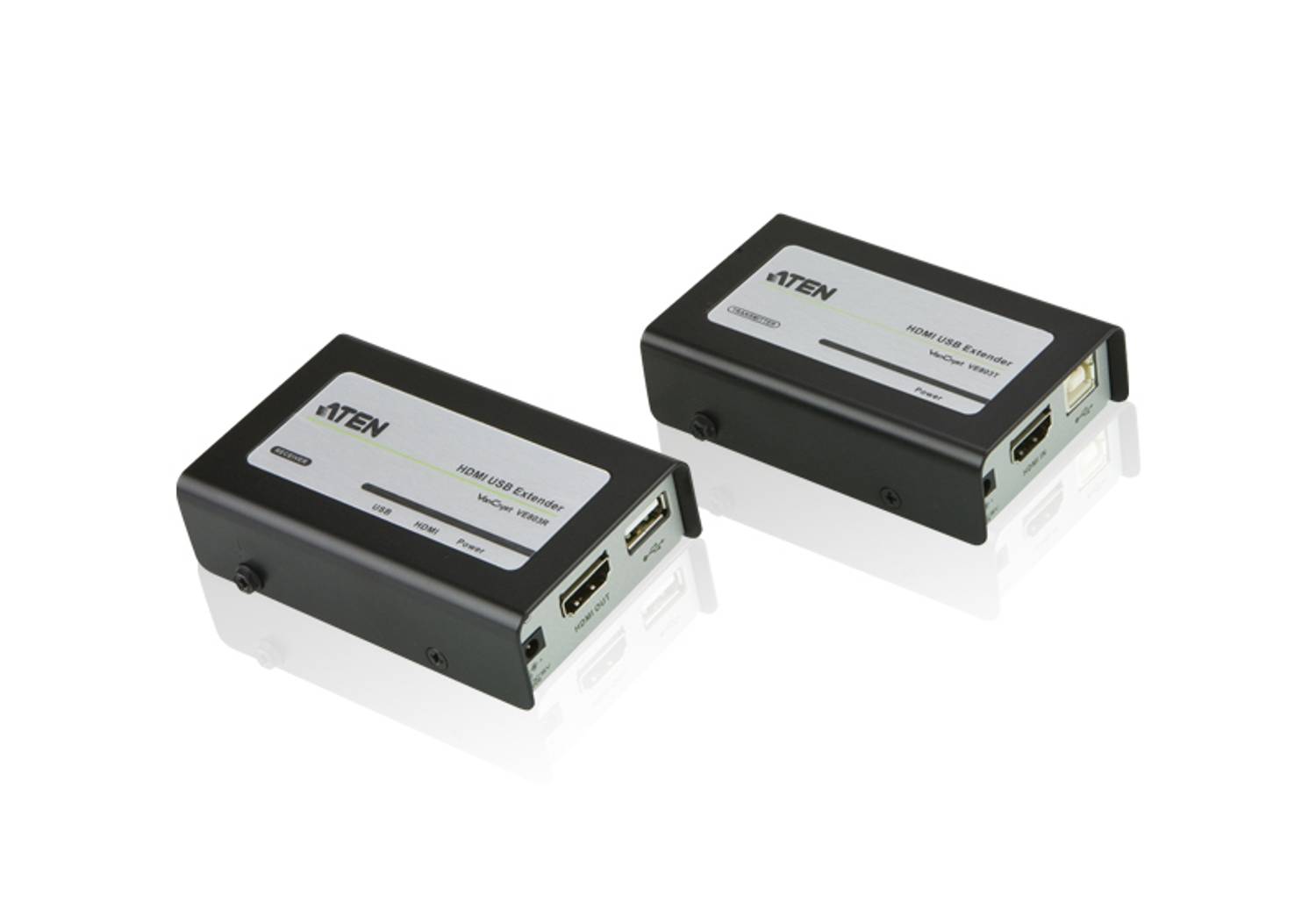

HDMI USB Distance Extender (HDMI USB Extender), Receive

Two CAT 6/6A/7 AWG23 S/FTP or F/FTP cables are used for connection between local and remote units. It protects the image with 1080p resolution values up to 40 meters. Protects the image with 1080i resolution values up to 60 meters. Provides superior image quality – Supports 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200) HDTV resolution values. USB has a touch panel. Optimization of image quality is possible. Supports Dolby True HD and DTS HD Master Audio technologies. 8KV/15KV ESD protected. Transparent USB Support - Supports USB 2.0 full speed devices. Supports wide screen format. HDMI (3D, Deep Color); HDCP compatible – maximum signal rate 2.25Gbit The power supply of the local unit is made via USB cable.

ModelATEN-VE803TATEN-VE803RConnectorsHDMI In1 x HDMI Type A Female (Black Color)NoHDMI OutputNo1 x HDMI Type A Female (Black Color)USB1 x USB Type B Female (White Color)1 x USB Type A Female (White Color)HDMI/USB Port *2 x RJ-45 Female (Silver)Power1 x DC JackSwitchesEQ BalancingNo1 x 8-stage switchEDID Selection1 x slide switchNoLED LightsPower1 (Green Color)1 (Green Color)HDMINo1 (Green Color)USBNo1 (Green Color)Image Resolution1080p @ 60Hz, at 40 meters
1080i @ 60Hz, at 60 metersPower ConsumptionDC5V, 1WDC5V, 3.9WEnvironmental FeaturesTemperature of the Working Environment0–50°CTemperature of the Storage Area-20–60°CHumidity Rate0–80% RH, Non-condensingPhysical FeaturesChassisMetalWeight0.16 kgDimensions
(W x L
