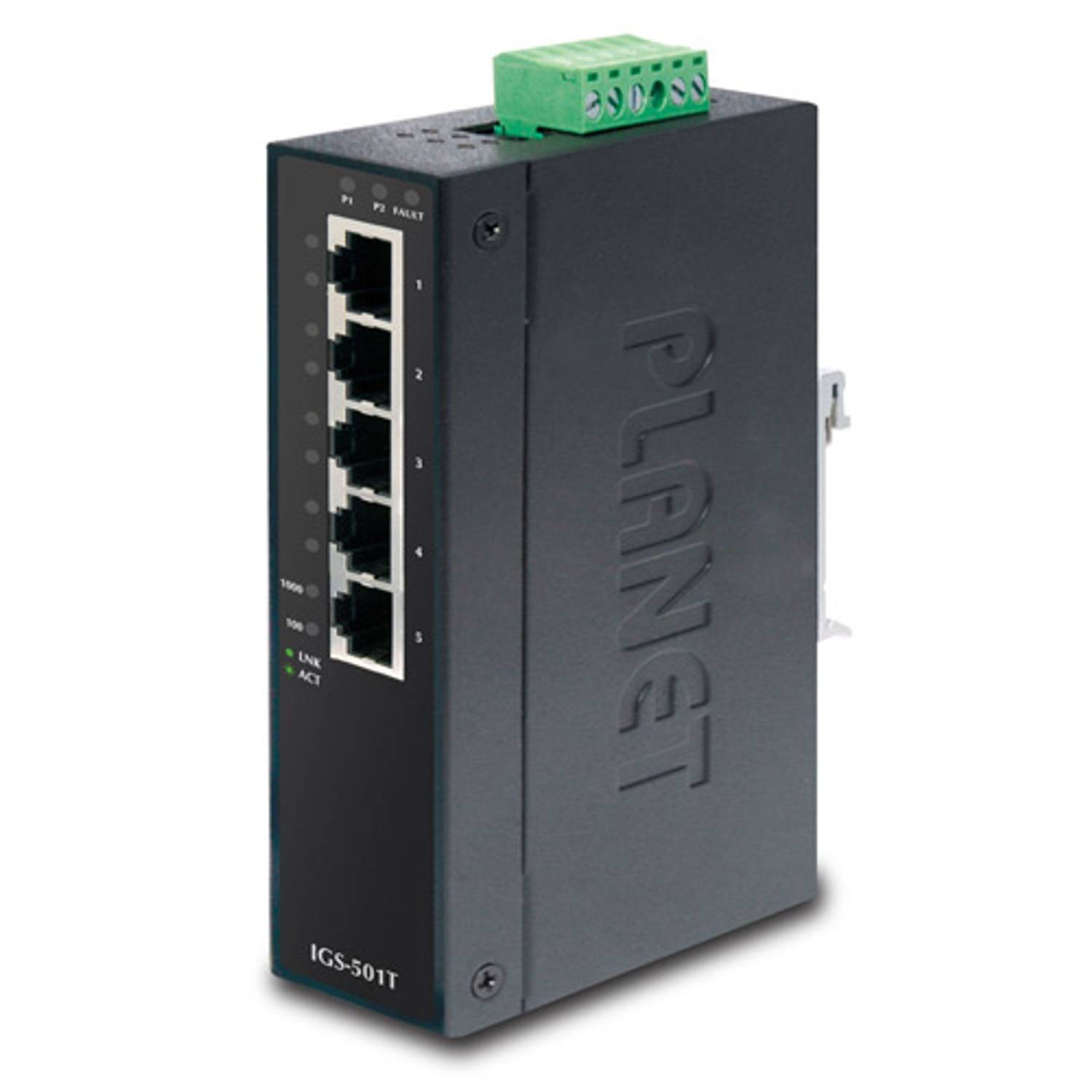

Industrial Unmanaged Switch

Physical Port

5-port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function

Layer 2 Features

Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standardSupports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex modeHigh performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidthPrevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)Backplane (switching fabric): 10GbpsIntegrated address look-up engine, supporting 2K absolute MAC addresses1M bits on-chip buffer memory9K Jumbo packet size supportAutomatic address learning and address agingCSMA/CD Protocol

Industrial Case / Installation

IP30 metal caseDIN rail and wall-mount design12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power supportSupports EFT protection 6000V DC for power lineSupports 6000V DC Ethernet ESD protection-40 to 75 degrees C operating temperature

Hardware SpecificationsHardware Version3Copper Ports5 x 10/100/1000Base-T RJ45 TP
auto-MDI/MDI-X, auto-negotiationConnectorRemovable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2AlarmProvides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24VLED3 x LED for system and power:
　■ Green: DC Power 1
　■ Green: DC Power 2
　■ Green: Power Fault
2 x LED for each copper port
　■ Green: 1000Mbps LNK/ACT
　■ Orange:10/100Mbps LNK/ACTESD Protection6KVEFT Protection6KVPower Requirements12~48V DC, Redundant power with polarity reverse protection function, 24V AC power supportPower Consumption / Dissipation4.8 watts / 16BTU (48V DC)
8.3 watts / 28BTU (24V DC)InstallationDIN rail kit and wall-mount earEnclosureIP30 metal caseDimensions (W x D x H)135 x 87 x 32 mmWeight498gSwitch SpecificationsSwitch Processing SchemeStore-and-ForwardAddress Table2K entriesBuffer Memory1M bits on-chip buffer memoryFlow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplexSwitch Fabric10GbpsThroughput (packet per second)7.4Mpps @64bytesJumbo Frame9KNetwork Cables10/100/1000Base-T
Cat. 3, 4, 5, 5e, 6 UTP cable [100 meters (max.)]
EIA/TIA-568 100-ohm STP [100 meters (max.)]Standards ConformanceStandards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x full-duplex flow controlRegulation ComplianceFCC Part 15 Class A, CEStability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)EnvironmentTemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees CHumidityOperating: 5~90%
Storage: 5~90% (non-condensing)
