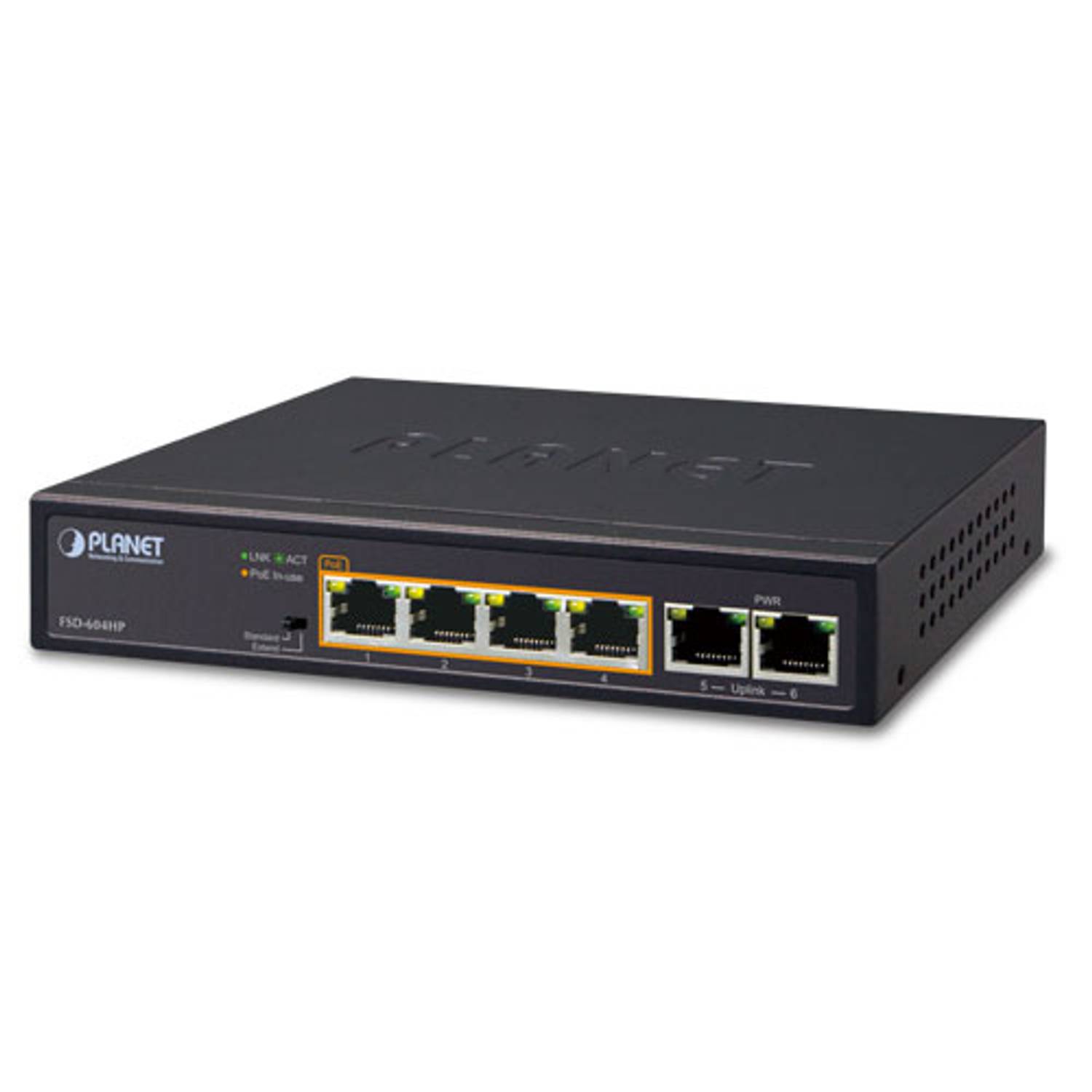

Masaüstü Tip Switch (Desktop Switch)brn4-Port 10/100TX IEEE 802.3

RJ45 Interface

6 10/100Mbps Fast Ethernet ports4 ports supporting 52V DC power to PoE powered device

Power over Ethernet

Complies with IEEE 802.3af/at Power over Ethernet end-spanUp to 4 IEEE 802.3af/2 IEEE 802.3at devices poweredSupports PoE power up to 30 watts for each PoE port60-watt PoE budgetHardware DIP switch for "Standard" and "Extend" mode selection; the "Extend" mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolationAuto detects powered device (PD)Circuit protection prevents power interference between portsRemote power feeding up to 100m in the standard mode

Switching

Hardware-based 10/100Mbps auto-negotiation and auto MDI/MDI-XFlow control for full duplex operation and back pressure for half duplex operation1536bytes packet sizeIntegrates address look-up engine, supporting 2K absolute MAC addressesAutomatic address learning and address agingSolid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

Hardware

Desktop palm sizeLED indicators for PoE ready/activity and LINK/ACTSupports contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protectionSupports ±4KV surge immunityInternal AC power supply

Hardware SpecificationsNetwork Connector6-port RJ45 for 10/100BASE-TX, auto MDI/MDIXPoE Inject Port4-port with 802.3af/at PoE injector function (Port-1 to Port-4)LED DisplaySystem:
Power (Orange)

Per PoE port:
PoE (Orange, Port 1 to Port 4)
LNK/ACT (Green, Port 1 to Port 6)DIP Switch100m distance in standard mode
250m distance in extend mode (based on the cable category)Switch ArchitectureStore and Forward switch architectureMAC Address Table2K MAC address table with auto learning functionSwitch Fabric1.2GbpsSwitch Throughput0.89Mpps @64bytesMaximum Packet Size1536bytesFlow ControlBack pressure for half duplex. IEEE 802.3x pause frame for full duplexPower RequirementsAC 100~240V, 2A max.Power ConsumptionMax. 63 watts, 214 BTUDimensions (W x D x H)168 x 93 x 32 mmWeight499gESD ProtectionContact discharge of ±4KV DC
Air discharge of ±6KV DCSurge Immunity±4KVPower over EthernetPoE StandardIEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSEPoE Power Supply TypeEnd-spanPower Pin Assignment1/2(+), 3/6(-)PoE Power OutputPer Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
Per Port 52V DC, 600mA. max. 30 watts (IEEE 802.3at)PoE Power Budget60 wattsNumber of PDs, 7 watts4Number of PDs, 15.4 watts4Number of PDs, 30 watts2Standard ConformanceEMI SafetyCE, FCCStandard ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PlusEnvironmentOperating Environment0 ~ 50 degrees CStorage Environment-10 ~ 70 degrees COperating Humidity5 ~ 95%, relative humidity, non-condensingStorage Humidity5 ~ 95%, relative humidity, non-condensing
