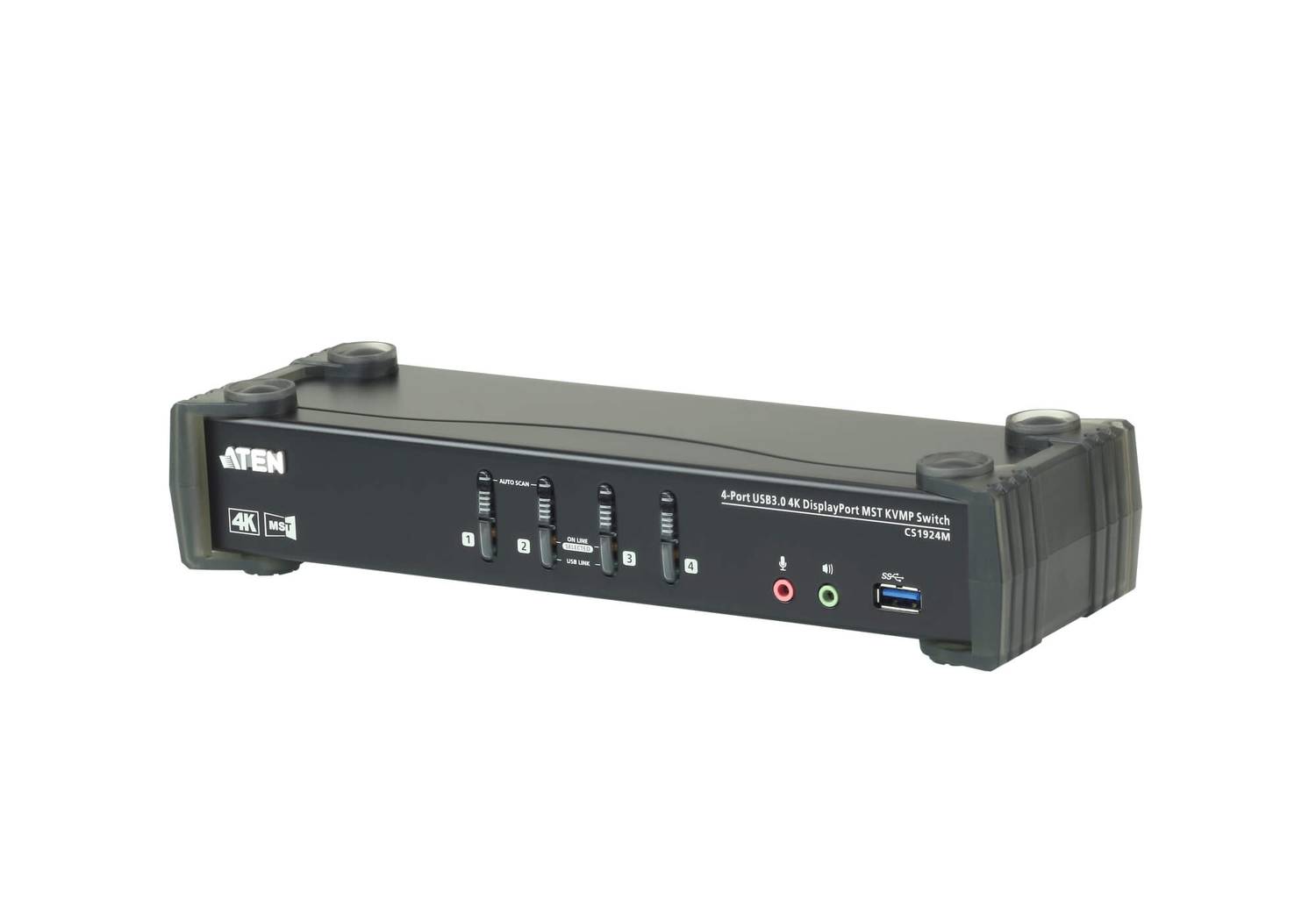

4-Port USB 3.0 4K DisplayPort MST KVMP™ (Keyboard/Video Monitor/M

The World's First DisplayPort KVM Switch Integrated MST Hub can manage the peripheral. Integrated Multi-Stream Transport (MST) hub feature allows connecting two monitors (DisplayPort / HDMI) to a single DisplayPort source *MST supports Splitter and Single Port Modes 2 port USB 3.0 (USB 3.1 Gen 1) hub feature owner. Supports SuperSpeed 5 Gbps data transfer rate. Supports DisplayPort Dual-Mode technology (DP++). HDMI and DVI signals are transmitted via the DisplayPort-to-HDMI/DVI DP++ adapter. **Firmware updateable. Plug & Play feature – it is possible to make computer connections without having to turn off the switch.

Stunning Experience in Audio/Visual TechnologySuperior image quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)DisplayPort 1.2 compatible, HDCP compliantHD audio signal is transmitted via DisplayPort ***Supports 2.1 surround sound. Full bass response feature for high quality 2.1 channel surround sound system

Smart Operation: Switching between KVM, USB hub and speaker connections can be done independently from each other with the buttons on the front panel, keyboard hotkeys, USB mouse **** and RS-232 commands. Power On Detection - when the computer is turned off, ATEN-CS1924M automatically switches to the computer whose power is on. Features Auto Scan Mode to monitor connected computers

Versatile Compatibility: Keyboard emulation/bypass feature is also valid for gaming keyboards. Thanks to the mouse emulation/bypass feature, many mouse drivers are defined and supports multifunctional mice. Supports Windows, Mac and Linux operating systems. Supports English, Japanese, French and German keyboards.

Note:
* Computer source must be DisplayPort 1.2 compatible
** DisplayPort Dual-Mode technology (DP++) does not require an active adapter. A DisplayPort adapter is needed when we are not sure whether the display source supports DP++*** Switching between HD audio sources via DisplayPort cannot be done independently
**** Mouse port switching is possible when using a USB 3-button wheel mouse

Computer Connections4Port SelectionKeyboard Hotkeys, Push Buttons, Mouse, RS-232 CommandsConnectorsConsole Ports2 x USB Type A Female
1 x DisplayPort Female (Black Color)
1 x HDMI Female (Black Color)
2 x 3.5mm Speaker Female (Green Color; 1 x front, 1 x rear)
2 x 3.5mm Mic Female (Pink Color; 1 x front, 1 x rear)
1 x RJ-11 Female KVM (Computer) Ports 4 x USB3.1 Gen1 Type B Female (Blue Color)
4 x DisplayPort Female (Black Color)
4 x 3.5mm Speaker Female (Green Color)
4 x 3.5mm Mic Female (Pink Color) Power1 x DC JackUSB Hub2 x USB3.1 Gen1 Type A Female (Blue Color 1 x front panel; 1 x rear panel)SwitchesSelected4 x Push ButtonsLED LightsOn Line /Selected4 (Orange Color) USB Link4 (Green Color)EmulationKeyboard / MouseUSBDisplay Resolution4096 x 2160 @ 60HzScanning Interval1-99 seconds (Default: 5 seconds)Power ConsumptionDC 5.0V; 4.89WEnvironmental FeaturesOperating Temperature0-50°CTemperature of the Storage Area-20-60°CHumidity Rate0-80% RH, Non-condensingPhysical FeaturesChassisMetal, PlasticWeight0.92 kg (2.03 lb)Dimensions (W x L x H)27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)

Packaging Content

1 x 4-Port USB 3.0 4K DisplayPort MST KVMP™ Switch4 x DisplayPort 1.2 Cables (1.5 meters)4 x USB Cables (USB 3.0-A to USB 3.0-B; 1.8 meters)8 x Speaker and Microphone Cables (1.8 meters)1 x Power Adapter1 x User Manual
