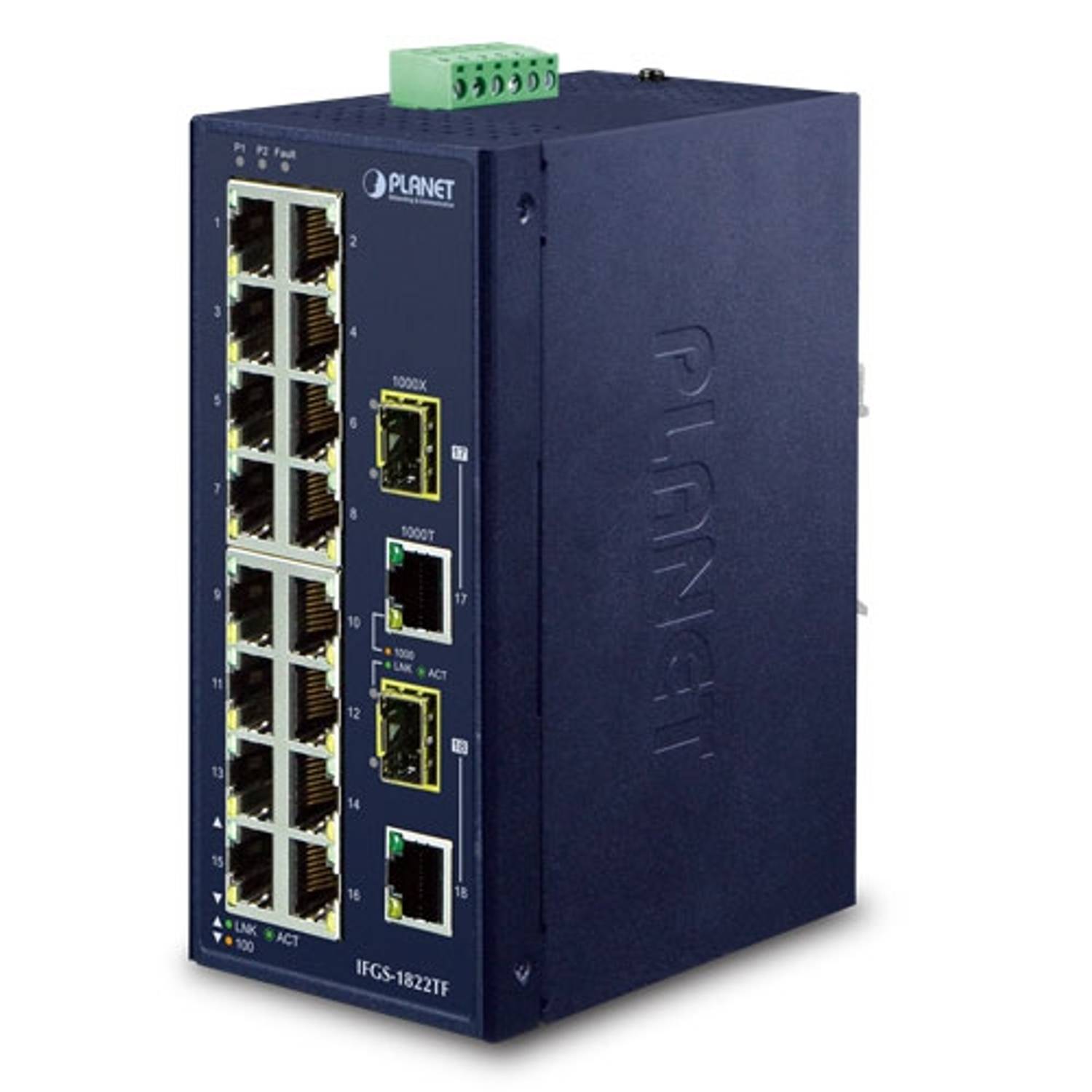

Endüstriyel Tip Yönetilemeyen Ethernet Switch (Industrial Unmanaged Ethernet Switch<br>16-Port 10/100TX<br>2-Port Gigabit TP/SFP Combo<br>-40~75 derece

Physical Port

2-port 10/100/1000BASE-T and 1000BASE-X shared interface with 16-port 10/100BASE-TX RJ45 auto MDI/MDI-X

Layer 2 Features

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard Supports Auto-negotiation and 10/100Mbps half/full duplex modBack pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)IEEE 802.3az Energy Efficient Ethernet Supports (EEE)IEEE 802.1p CoS16K MAC address Supports automatic address learning and address aging

Industrial Chassis and Assembly

IP30 metal chassis DIN-rail and wall mountable12 <-> 48V DC with backup power's, with reverse polarity protection 24V AC power input 6000 VDC Ethernet Supports ESD protection Supports -40 <-> 75 degrees C operating temperature Against dropping, shock and vibration protected

Hardware SpecificationsFast Ethernet Copper Ports16 x 10/100BASE-TX RJ45 auto-MDI/MDI-X portsGigabit Ethernet Copper PortsTwo 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
(Port-17 and Port-18 shared)SFP SlotTwo 1000BASE-SX/LX/BX SFP interfaces (Port-17 and Port-18 shared)Switch ArchitectureStore-and-ForwardSwitch Structure7.2Gbps (non-blocking)Throughput (packet sent per second) ) 5.36Mpps@ 64 bytesAddress Table16KPshared Data Buffer4Mbit Flow Control IEEE 802.3x pause frame for full duplex
Back pressureESD Protection for half duplex6KV DCChassisIP30 metal bodyMounting TypeDIN-rail and wallConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2AlarmA relay output for power fault. Alarm relay current carrying capability: 1A @ 24V DCDimensions (W x W x H)66 x 107 x 152 mmWeight300gPower RequirementDual 12~48V DC or one 24V ACPower ConsumptionMax. 6.3 watts/21.4BTU (Ethernet ports full) Compliance with Standards Compliance with StandardsFCC Part 15 Class A, CEHardness Test

IEC60068-2-32 (drop)
IEC60068-2-27 (pulse)

IEC60068-2-6 (flicker)

Compliance with StandardsIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.3az Energy Efficient Ethernet (EEE)Environmental SpecificationsOperating Temperature-40 ~ 75 degrees CStore AreaTemperature-40 ~ 85 degrees CHumidity 5 ~ 95% (non-condensing)
