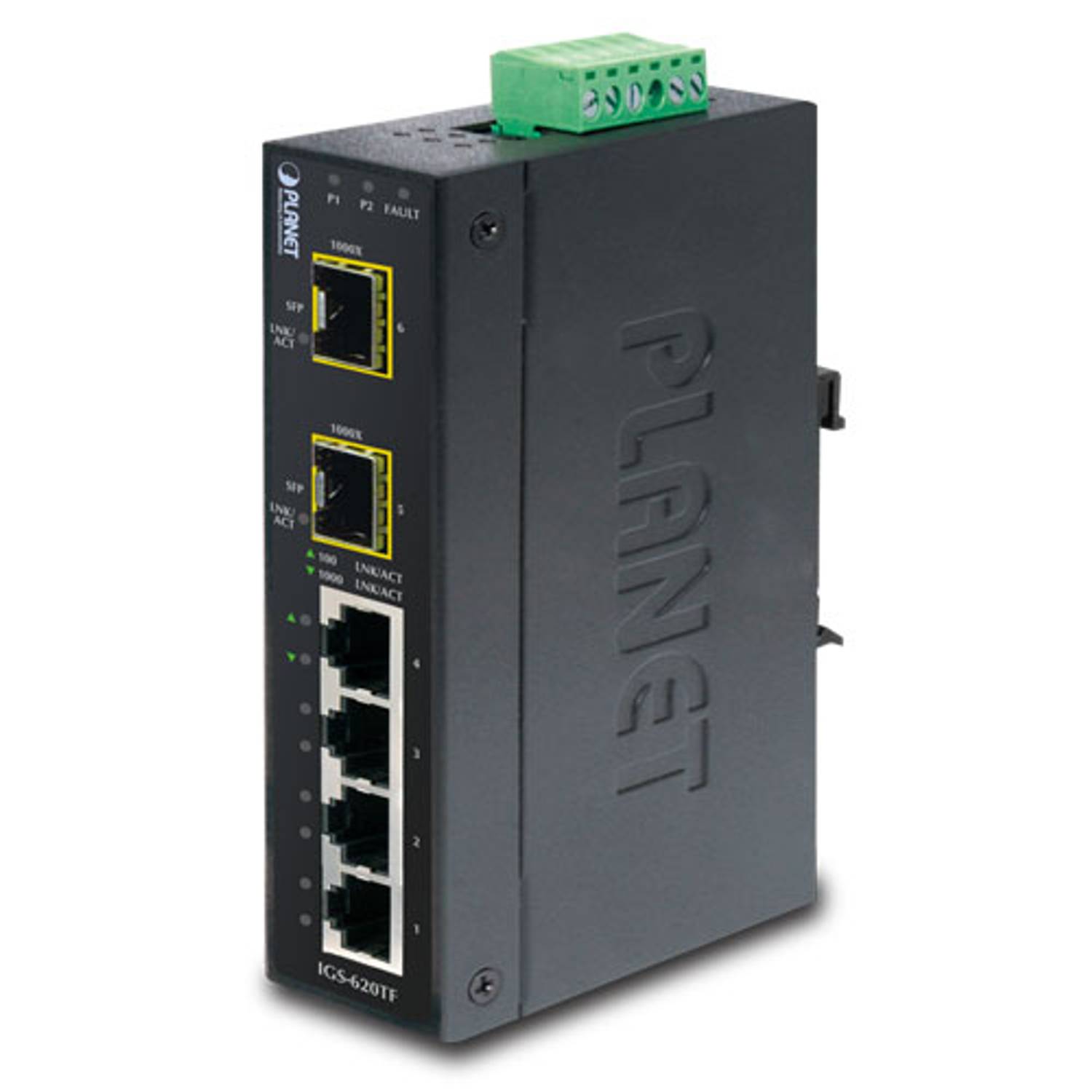

Industrial Type Unmanaged Ethernet Switch (Industrial Unmanag

Physical Port

4-port 10/100/1000Base-T RJ-45 with auto MDI / MDI-X function2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured

Fiber Port Redundancy

Link status auto-detect and redundant on Dual ports with the same connector typeOnly Primary-Port is active at a time, the Backup-Port is blockedWhen Primary-Port link failure occurs, the traffic will swap to Backup-Port automatically.Once the Primary-Port status is back to link-up, the traffic will swap from Backup-Port to Primary-Port.

Layer 2 Features

Supports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex modeHigh performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidthPrevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)9K Jumbo Frame Size supportBackplane (Switching Fabric): 12GbpsIntegrated address look-up engine, support 1K absolute MAC addressesAutomatic address learning and address agingCSMA/CD Protocol

Industrial Case / Installation

- 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptableSlim IP30 metal case protectionDIN Rail and Wall Mount DesignRedundant Power DesignSupports EFT protection 6000 VDC for power lineSupports 6000 VDC Ethernet ESD protection-40 to 75 degrees C operating temperature

Hardware SpecificationsCopper Ports4 x 10/100/1000Base-T RJ-45 TP
Auto-MDI/MDI-X, Auto-NegotiationSFP / mini-GBIC Slots2 1000Base-SX/LX/BX SFP interfaces (Port-5 and Port-6)
Compatible with 100Base-FX SFPDIP SwitchDIP-1: SFP Port 5 1000Base-X (default) / 100Base-FX
DIP-2: SFP Port 6 1000Base-X (default)/ 100Base-FX
DIP-3: Switch mode / Fiber Redundant modeConnectorRemovable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2AlarmProvides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24VLED3 x LED for System and Power:
　■ Green: DC Power 1
　■ Green: DC Power 2
　■ Green: Power Fault
2 x LED for Per Copper Port (Port-1~Port-4):
　■ Green: 1000 LNK/ACT
　■ Orange:100 LNK/ACT
1 x LED for Per mini-GBIC interface (Port-5 and Port-6):
　■ Green: LNK/ACTESD Protection6KV DCEFT Protection6KV DCEnclosureIP30 type metal caseInstallationDIN rail kit and wall mount earDimensions (W x D x H)135 x 87 x 32mmWeight503gPower RequirementsDC 12~48V or AC 24V
Redundant power with polarity reverses protection functionPower Consumption / Dissipation7.2watts / 24BTUCableTwisted-Pair
　10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
　100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
　1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
Fiber-Optic Cable
　1000Base-SX:
　　50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m
　1000Base-LX:
　　9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120
　　kilometers (vary on SFP module)
　100Base-FX:
　　● 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2
　　　kilometers
　　● 9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers
　　　(vary on SFP module)Switch SpecificationSwitch Processing SchemeStore-and-ForwardAddress Table1K entriesFlow ControlBack pressure for half duplex
IEEE 802.3x Pause Frame for full duplexSwitch fabric12GbpsThroughput (packet per second)8.93Mpps@64bytesMaximum Transmit Unit9216 bytesSpeedSX/LX: 2000Mbps (full-duplex)
FX: 200Mbps (full-duplex)
TP: 10/20Mbps, 100/200Mbps, 2000MbpsStandards ConformanceStandards ComplianceIEEE 802.3 Ethernet / 10Base-T
IEEE 802.3u Fast Ethernet / 100Base-TX
IEEE 802.3ab Gigabit Ethernet / 1000Base-T
IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX
IEEE 802.3x Full-Duplex Flow ControlRegulation ComplianceFCC Part 15 Class A, CEStability TestingIEC60068-2-32(Free fall)
IEC60068-2-27(Shock)
IEC60068-2-6(Vibration)EnvironmentTemperatureOperating:-40~75 degree CStorage:-40~75 degrees CHumidityOperating:5~95% (Non-condensing)Storage:5~95% (Non-condensing)
