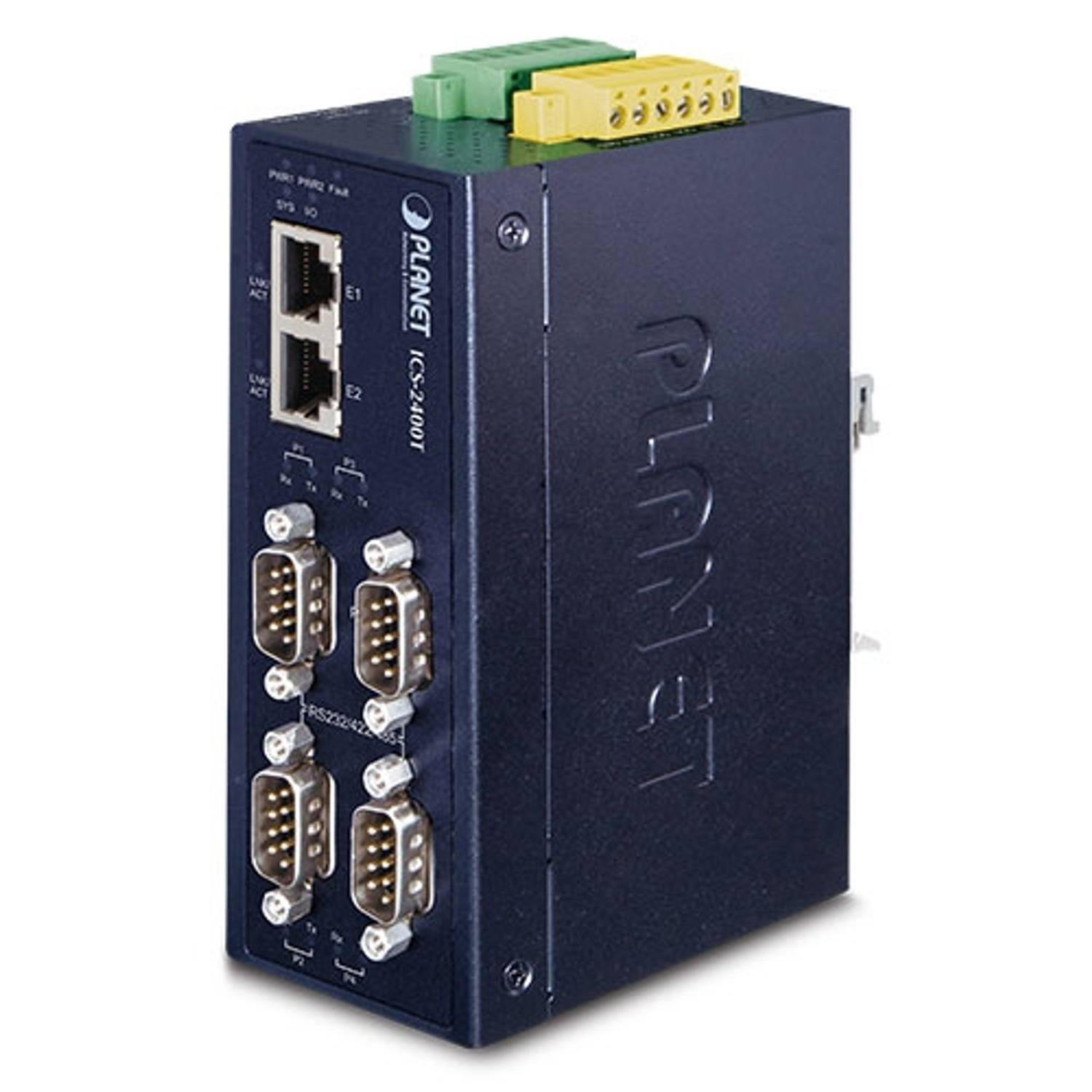

Industrial 4-port RS232/RS422/RS485 Serial Device Server

Serial Interface

Four DB9 interfaces handle RS232, 2-wire RS485, 4-wire RS485 and RS422 signals. Asynchronous serial data transmission rates up to 921600bpsData mode supports VCOM, RFC2217, TCP Server, TCP Client, UDP, Remote Pair and Serial Telnet modes

Ethernet Interface

2-port supports 10/100BASE-TX RJ45 interface and automatic MDI/MDI-X functionsEthernet ports support Ethernet switch or cascade connections

Management

IPv4 and IPv6 dual stack managementRemote Management Interfaces - IP-based Web management
- Telnet console management - Windows-based VCOM software supports search, monitoring and configuration settingsIP NTP (Network Time Protocol) and DNS managementStandard TCP/IP interface and a wide range of operating modes Supports Software Protocols: ARP, ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/clientSerial Operating mode can be selected from the management interfacePair Connection mode for connecting two serial devices over a networkMaximum 4 hosts can access TCP client modeSoftware update is done via HTTP protocol Accessible IP security control prevents access by illegal usersEvent notification-Remote Syslog server-SNMP trap - Integrated buzzer - Relay output alarm - Digital Output
Supports DHCP clientPLANET Smart Discovery software for IP address matching

Industrial Chassis and Installation

IP40 metal chassisDIN-rail and wall mountable design Backup power design - 12 <-> 48V DC, backup power, reverse polarity protection feature 6000 VDC Ethernet Supports ESD protection - 40 <-> 75 degrees C operating temperature Resistant to drops, shocks and shocks LED Thanks to the indicators, it is possible to obtain information about the operation of the device. It has a reset button to reset the default factory settings.

Digital Input and Digital Output

2 Digital Inputs (DI)2 Digital Outputs (DO)Sensor can be integrated into automatic alarm systems. Event notification is made via e-mail and SNMP trap.

Serial InterfaceSerial Ports4 x DB9 maleSerial StandardsRS232/RS422/4-wire RS485/2-wire RS485Baud Rate (Data Rate)50bps <-> 921KbpsData Bit5, 6, 7, 8Parity Type1, 1.5, 2Stop BitTek, Even, None, Space , MarkFlow ControlRTS/CTS and DTR/DSR (RS232 only)
XON/XOFF SignalsRS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS422: Tx+, Tx-, Rx+, Rx-, GND
4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND
2-wire RS485: Data A (+), Data B (-), GNDPin Matching PinRS232RS422
RS485-4WRS485-2W1DCDTxD+--2RxDTxD---3TxDRxD-Data-4DTRRxD+Data+5GNDGDGND6DSR----7RTS----8CTS----9------Serial Line Protection2KV isolation protection
1KV (llevel 2) surge protection
15KV ESD protectionEthernet InterfaceEthernet Ports2 x RJ45Standard10/100BASE-TXDistance100mSwitch ArchitectureStore-and-ForwardAddress Table1KESD Protection6KVSurge Protection2KVHardwareMountingDIN-rail and wallChassisIP40 metalDimensions (W x L x H)56 x 87 x 135 mm Weight625 gLED LightsSystem: Power 1, Power 2 , Default, I/O
TP Port: Link/Active
Serial Port: Tx and RxPower Requirement12~48V DC, reverse polarity protection function with backup powerPower ConsumptionWhen Operating at Full Capacity and All Ports are Active
12VDC: 0.419A (5.1 watts)
24VDC: 0.227A (5.4 watts)
48VDC: 0.136A (6.5 watts) Connector Detachable 6-pin terminal block for power input
Pin 1/2 1 for Power, Pin 3/4 for fault alarm, Pin 5/6 2DI for Power and DO2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
When the input is loaded to 24V DC, 10mA max.

2 Digital Outputs (DO):
Open collector to 24V DC, 100mA max. AlarmOne relay output for power fault notification
Alarm relay current carrying capability: 1A @ DC 24V Reset Button< 5 seconds: System initialization
> 5 seconds: Factory default settingsAdministrationManagement InterfacesWeb management
Telnet Console management
Windows-based VCOM Software management
PLANET Smart Discovery SoftwareIP VersionIPv4 and IPv6Working MethodTCP Server
TCP Client
UDP Client
virtualcom
RFC2217
Telnet Server
Pair Connection – Remote (Slave)
Pair Connection – Local (Master)Virtual COM Utility Platform Supports Windows Based Only:
Windows XP
Windows Server 2003
Windows 7
Windows Server 2008
Windows 8 (need to install the latest version of WinPcap)
Windows Server 2012 (need to install the latest version of WinPcap)
Windows 10WarningBuzzer and RTCSecurityMax. 4 IP address hostSNMP MIBRFC1213 MIB-II
RFC1317 RS232-like OIDsStandards ComplianceRegulatory ComplianceFCC Part 15 Class A,
CE Certification Class A Durability Test IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)StandardsIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control and back pressure
RFC 768UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 854 Telnet
RFC 958 NTP
RFC 1591 DNS (client only)
RFC 1908 SNMPv2c
RFC 2068 HTTP
RFC 2131 DHCP Client
RFC 2732 Format for Literal IPv6 Addresses in URL's
RFC 3315 DHCPv6 Client
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNSv6
RFC 4443 ICMPv6
EIA/TIA RS232/422/485Regulatory ComplianceRoHSEnvironmental SpecificationsOperating Temperature -40 ~ 75 degrees CTemperature of Storage Area -40 ~ 85 degrees CHumidity Rate5 ~ 95% (non-condensing)
