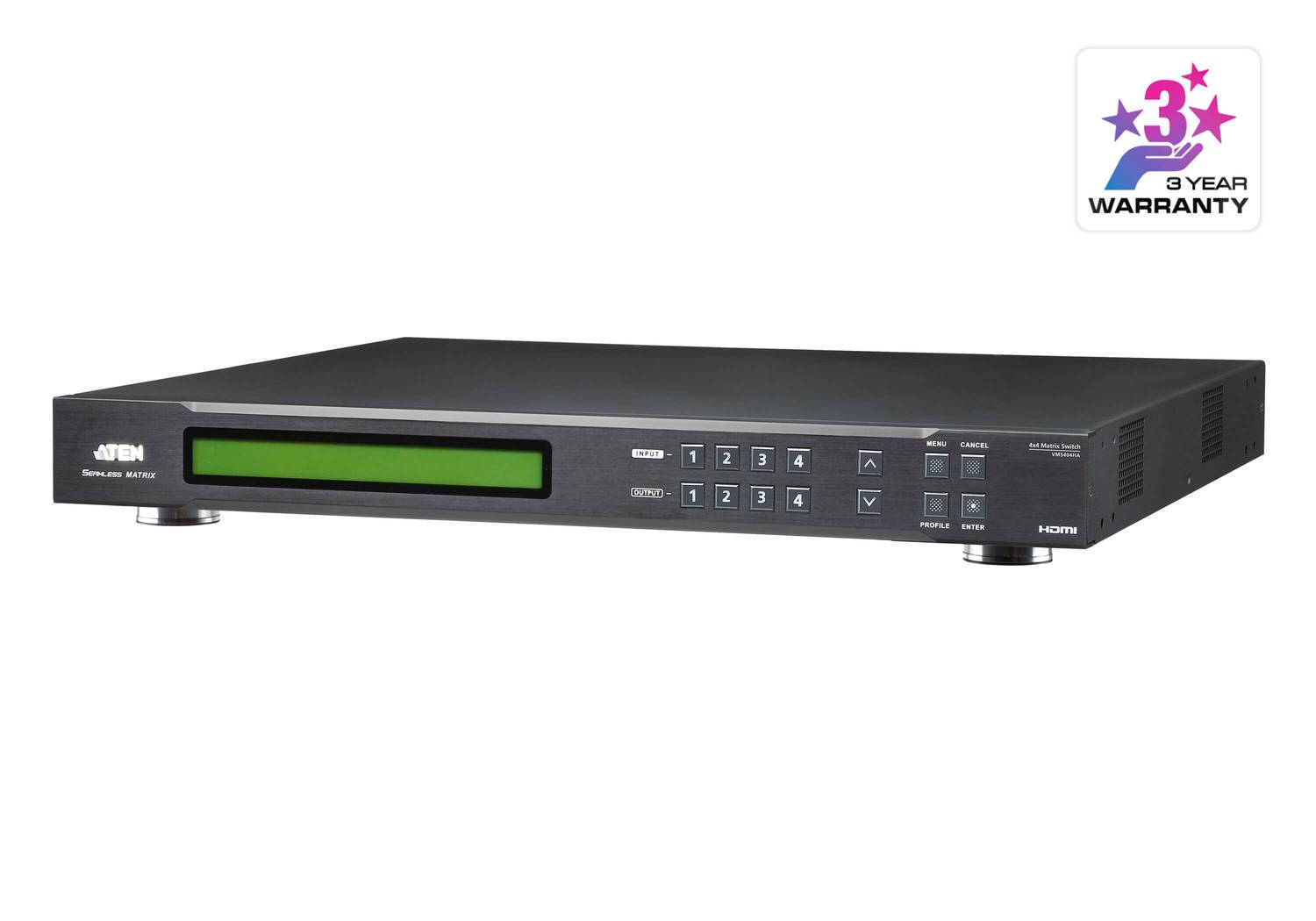

4x4 HDMI Matrix Switch with Scaler for Multi-Display Setups, Supports 1080p, EDID Management, Video Wall Functionality, Rack Mountable, Audio Extraction

Routes any of 4 HDMI sources to any of 4 HDMI displaysLocal HDMI output – enables previewing of up to 4 video sources in a multi-view windowMultiple system configuration methods including front panel pushbuttons / RS-232 / Ethernet (Telnet / Web GUI) connection, ATEN Video Matrix Control app, and ATEN Control SystemDevice status can be viewed and controlled via ATEN Video Matrix Control AppVideo Wall functionality via intuitive web GUI* allows for customization of up to 8 layouts for any type of video wallsBuilt-in scaler automatically converts input resolutions for optimal appearance on the displayFrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rateATEN Seamless Switch technology* – adopts FPGA to unify video formats so as to provide continuous video streams, real-time switching, and stable signal transmissionEDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screensAudio enabled; HDMI audio can be extracted to stereo audioHDMI (3D, Deep color); HDCP 1.4Supports Dolby True HD and DTS HD Master audioSupports Consumer Electronics Control (CEC)ESD protection for HDMIFirmware upgradeableRack mountable (1U design)

*Note:
1. If Seamless Switching is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolutions. To make these features available, disabling Seamless Switching is a must.
2. Videos may not display within range when Seamless Switch or Video Wall is enabled, in which case please adjust the display settings on your device.

Video InputInterfaces4 x HDMI Type A Female (Black)Impedance100 ΩMax. Distance5.0 mVideo OutputInterfaces4 x HDMI Type A Female (Black)
(Array Mode): 1 x HDMI Type A Female (Black)Impedance100 ΩMax. Distance15 mVideoMax. Data Rate6.75 Gbps (2.25 Gbps Per Lane)Max. Pixel Clock225 MHzComplianceHDMI (3D, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)Max. ResolutionUp to 1080pMax. DistanceUp to 15 mAudioOutput1 x Mini Stereo Jack Female (Green)ControlRS-232Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: NoEthernet1 x RJ-45 FemaleEDID SettingsEDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)ConnectorsPower1 x 3-Prong AC SocketPowerMaximum Input Power Rating100-240 VAC; 50-60 Hz; 1.0APower ConsumptionAC110V:35.7W:167BTU
AC220V:34.9W:164BTUEnvironmentalOperating Temperature0-40°CStorage Temperature-20 - 60°CHumidity0 - 80% RH, Non-CondensingPhysical PropertiesHousingMetalWeight5.12 kg ( 11.28 lb )Dimensions (L x W x H)43.24 x 37.82 x 4.40 cm
(17.02 x 14.89 x 1.73 in.)

Package Contents

1x HDMI Matrix Switch with Scaler1x power cord1x mounting kit1x user instructions
