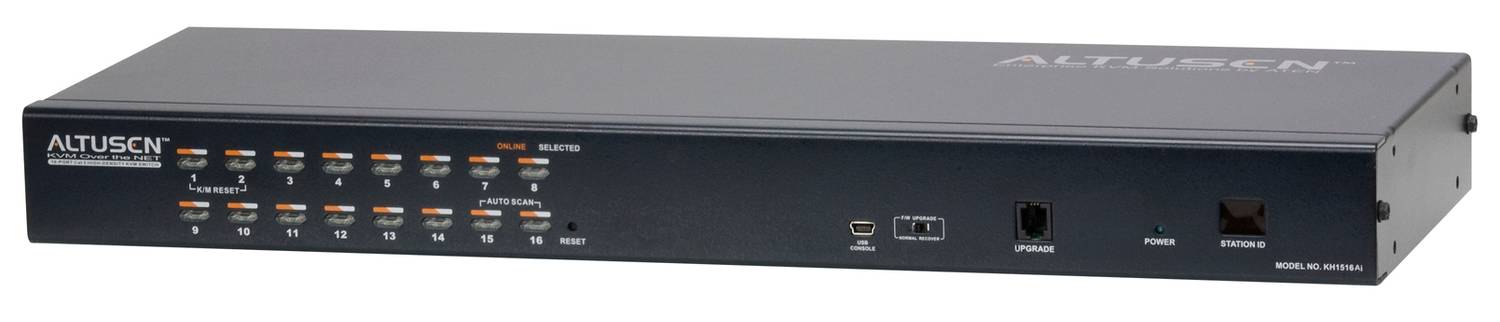

16 Port Cat 5 High-Density KVM over IP Switch

ATEN-KH1516Ai is a KVM Switch device that can access and manage multiple computers via a single keyboard (PS/2 and USB), monitor (VGA) and mouse (PS/2 and USB) (console). It uses TCP/IP as the communication protocol. ATEN-KH1508Ai can be accessed locally or from the other side of the world through any computer connected to the network. 1 keyboard (PS/2 and USB), 1 mouse (PS/2 and USB) and 1 monitor (VGA) are connected to 16 PCs/Servers. It is possible to access and manage via ) channel. There are 16 RJ45 connectors on the KVM Switch for connection to PCs/Servers. By installing a Cat-5e cable to these interfaces, the keyboard, monitor and mouse signals are transmitted to the Server 40 ~ 50 meters away. Cat-5e cable prevents the cables used between the KVM Switch and the Server from piling up and causing visual pollution and making management difficult. CPU Module is used when terminating the Cat-5 cable to be used between the KVM Switch device and the Server on the Server side. It is possible to carry signals between the KVM Switch device and PC/Servers using a Cat-5e cable. It can be mounted in a 1U cabinet. USB VNC Console feature - has a USB port to use the laptop as a consolePS/2, USB, Sun Legacy (13W3 It works without any problems with Servers with ) and Serial (RS-232) interfaces. PS/2 and USB keyboard and mouse can be connected to the console locally. Multi-platform support: Windows, Mac, Sun and Linux. High Image resolution: Maximum 1600 x 1200 @ 60Hz (up to 40 meters) and 1280 x 1024 @ 75Hz (up to 50 meters) There is a slot for the daisy chain connection method on the .KVM Switch. If 15 ATEN-KH1508Ai are chained together, it becomes possible to access and manage a total of 256 PCs/Servers. Up to 64 user accounts can be opened. 32 users can access the device at the same time. Ability to end open sessions - administrators can end running sessions. The feature of keeping records of events occurring in the system and Windows-based Log Server support The feature of keeping records of operations on the device locally. Adapter Cable (CPU Module) detection - connections coming from the KVM switch server, i.e. port keeps the information in memory. It is not necessary to make any special settings on the KVM switch when the adapter cable (CPU module) is changed. The device automatically recognizes the available port information. Thanks to the Port Share mode, multiple users can access the server at the same time. It works integrated with the ALTUSEN CC2000 Management software. A connection is established with Power over the NET™ devices and the power management of the connected devices is captured and managed remotely. Firmware software updates can be made. .Local and remote access and authentication is provided. Local Console, Browser and AP GUI facilitate device management by offering multi-language options. Supports IE, Mozilla, Firefox, Safari, Opera, Netscape browsers. Browser-based UI support - Users with administrator authority can access Java It allows them to perform administrative operations without the need for management. Thanks to Panel Array Mode, it is possible to see all ports of the KVM Switch at the same time. Keyboard broadcast feature - Keyboard input can be duplicated on connected servers. Remote authentication support: RADIUS, LDAP, LDAPS and MS Active Directory Password protection feature. The confidentiality of passwords is prioritized. (128-bit and RSA 1024-bit) Thanks to the flexible structure offered in encryption, users can use any of the 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4 encryption methods or use keyboard/mouse, monitor and virtual media. can choose data encryption. Supports IP/MAC Filtering. User and group permissions can be configured for server access and control. Virtual Remote Desktop connection can be made full screen. It can be sized and scaled optionally. Image quality and image tolerance can be adjusted to prevent the data transfer rate, monochrome color depth setting, threshold value and audio setting from being negatively affected in environments where bandwidth is reduced. It offers a full screen display or a scalable screenshot. Bulletin board Thanks to this, users connected to the system can communicate with each other. One of the connected users can take full management of the KVM switch. Mouse DynaSync™ feature - The movements of the mouse used locally and remotely are automatically synchronized. On-screen keyboard support that supports multiple languages. Exit Macros supportBIOS-level access

Packaging Content

1 x ATEN-KH1516Ai Cat 5 High-Density KVM over IP Switch1 x Software Update Cable1 x Laptop USB Console Cable1 x Power Cable1 x Cabinet Mounting Kit1 x Felt set to prevent the device from slipping (4 pieces)1 x Quick Start Guide

Computer ConnectionsDirect16Maximum256 (with daisy chain connection)Port SelectionOSD; Hotkey; Push ButtonConnectorsConsole PortKeyboard1 x 6-pin Mini-DIN Female (Purple Color)
1 x USB Type A Female (White Color)Display1 x HDB-15 Female (Blue Color)Mouse1 x 6-pin Mini-DIN Female (Green Color)
1 x USB Type A Female (White Color)KVM Port16 x RJ-45 FemaleDaisychain Ports1 x DB-25 Male (Black Color)Power1 x 3-prong AC socketLAN1 x RJ-45 FemaleF/W Software Update Port1 x RJ-11 Female (Black Color) PON1 X RJ-45 Female Laptop USB Console
(LUC) Port1 x USB Mini Type B Female (Black Color)SwitchesReset1 x Semi-Recessed Push ButtonPower1 x RockerPort Toggle16 x Push ButtonLED LightsOn Line16 (Green Color)Selected16 (Orange Color)Power1 (Blue Color)Station ID1 x 2-digit 7-segment (Orange Color)Link1 (Orange Color)10 / 100Mbps1 (Orange Color / Green Color)EmulationKeyboard / MousePS/2; USBDisplay Resolution Local 1600 x 1200 @ 60 Hz (40m) ;
1280 x 1024 @ 75 Hz
(with 50 m KA7xx Adapter Cable)Remote1600 x 1200 @ 60HzScan Range1–255 secondsI/P Rate100–240 VAC; 50/60 Hz; 1A Power Consumption 120V/12.5W; 230V/12.7WEnvironmental Features Temperature of Working Environment0 - 40°CTemperature of Storage Area-20 - 60°CHumidity Rate0–80% RH; Non-condensingPhysical FeaturesChassisMetalWeight2.77 kgDimensions
(W x L x H)43.72x16.36x4.40cm

Cable Options:

ATEN-2L-1700 - Daisy Chain Cable (0.6m)ATEN-2L-1701 - Dash Chain Cable (1.8m)ATEN-2L-1703 - Dash Chain Cable (3m)ATEN-2L-1705 - Dash Chain Cable (5m) ATEN-2L-1715 - Chain Link Cable (15m)

CPU Module Options

ATEN-KA7120 - PS/2 KVM Adapter Cable (CPU Module)ATEN-KA7130 - Sun Legacy KVM Adapter Cable (CPU Module)ATEN-KA7170 - USB KVM Adapter Cable (CPU Module)ATEN-KA7520 - PS/2 KVM Adapter Cable ( CPU Module)ATEN-KA7570 - USB KVM Adapter Cable (CPU Module)ATEN-KA7920 - PS/2 KVM Adapter Cable (CPU Module)ATEN-KA7970 - USB KVM Adapter Cable (CPU Module)ATEN-KA9120 - PS/2 KVM Adapter Cable (CPU Module)ATEN-KA9130 - Sun Legacy KVM Adapter Cable (CPU Module)ATEN-KA9140 - Serial KVM Adapter Cable (CPU Module)ATEN-KA9170 - USB KVM Adapter Cable (CPU Module)ATEN-KA9520 - PS/2 KVM Adapter Cable (CPU Module)ATEN-KA9570 - USB KVM Adapter Cable (CPU Module)ATEN-KA7166 - DVI USB Virtual Media KVM Adapter Cable with Smart Card Reader (CPU Module)ATEN-KA7168 - HDMI USB Virtual Media KVM Adapter Cable with Smart Card Reader (CPU Module)ATEN-KA7169 - DisplayPort USB Virtual Media KVM Adapter Cable with Smart Card Reader (CPU Module)
