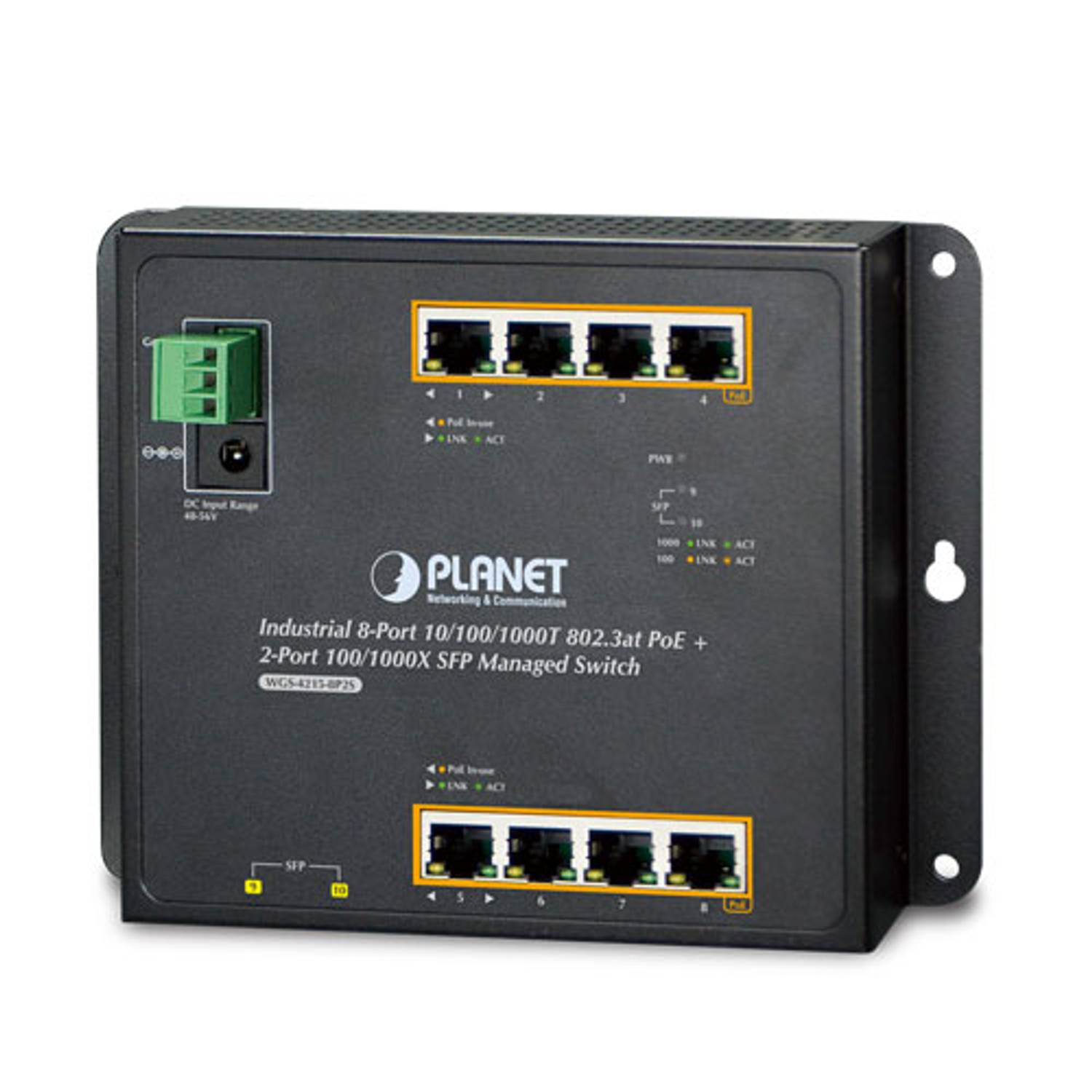

Industrial Wall Type Managed Switch (Industrial Flat-type

Physical Port

8-Port 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3at PoE+ Injector function2 100/1000BASE-X mini-GBIC/SFP slots

Power over Ethernet

- Total PoE power budget control- Per port PoE function enable/disable- PoE port power feeding priority- Per PoE port power limitation- PD classification detection- PD alive check- PoE scheduleComplies with IEEE 802.3at Power over Ethernet Plus, end-span PSEBackward compatible with IEEE 802.3af Power over EthernetUp to 8 ports of IEEE 802.3af/802.3at devices poweredSupports PoE power up to 36 watts for each PoE portAuto detects powered device (PD)Circuit protection prevents power interference between portsRemote power feeding up to 100 metersPoE management

Industrial Case and Installation

- 48V~56V DC wide power input with polarity reverse protect function- 3-pin terminal block or DC jack connectorCompact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail designIP30 metal case protectionSupports -40 to 75 degrees C operating temperatureSupports ESD 8KV DC Ethernet protectionDual power input design

Switching

Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-XFeatures Store-and-Forward mode with wire-speed filtering and forwarding ratesIEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation8K MAC address table size10K jumbo frameAutomatic address learning and address agingSupports CSMA/CD protocol

Layer 2 Features

- IEEE 802.1Q tagged VLAN- Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support- Protocol VLAN- Voice VLAN- Private VLAN (Protected port)- Management VLAN- GVRP- STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)- STP BPDU Guard, BPDU Filtering and BPDU ForwardingSupports VLANSupports Spanning Tree ProtocolSupports Link Aggregation- IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)Provides port mirror (many-to-1)Loop protection to avoid broadcast loops

Quality of Service

- IEEE 802.1p CoS- TOS/DSCP/IP precedence of IPv4/IPv6 packetsIngress/Egress Rate Limit per port bandwidth controlTraffic classificationStrict priority and Weighted Round Robin (WRR) CoS policies

Multicast

Supports IPv4 IGMP snooping v2, v3Supports IPv6 MLD snooping v1, v2IGMP querier mode supportIGMP snooping port filteringMLD snooping port filtering

Security

- Broadcast/Unknown unicast/Unknown multicast- IEEE 802.1X port-based network access authentication- Built-in RADIUS client to cooperate with the RADIUS servers- DHCP Option 82- RADIUS/TACACS+ authentication- IPv4/IPv6 IP-based ACL- IPv4/IPv6 IP-based ACE- MAC-based ACL- MAC-based ACE- Static MAC- MAC filteringStorm Control supportAuthenticationAccess Control ListMAC SecurityPort security for source MAC address entries filteringDHCP snooping to filter distrusted DHCP messagesDynamic ARP inspection discards ARP packets with invalid MAC address to IP address bindingIP source guard prevents IP spoofing attacksDoS attack preventionSSH/SSL

Management

- IPv4/IPv6 Web switch management- Telnet Command Line Interface- SNMP v1, v2c, v3- SSH and SSL secure access- Configuration upload/download through HTTP/TFTP- Hardware reset button for system reboot or reset to factory defaultIPv4 and IPv6 dual stack managementSwitch Management InterfaceUser privilege levels controlBuilt-in Trivial File Transfer Protocol (TFTP) clientStatic and DHCP for IP address assignmentSystem MaintenanceSNTP Network Time ProtocolCable diagnosticsLink Layer Discovery Protocol (LLDP) Protocol and LLDP-MEDSNMP trap for interface Link-up and Link-down notificationEvent message logging to remote Syslog serverFour RMON groups (history, statistics, alarms and events)PLANET Smart Discovery Utility

Hardware Specifications

Copper PortsEight 10/100/1000BASE-T RJ45 auto-MDI/MDI-X portsPoE Inject PortEight with 802.3at PoE+ injector function (Port-1 to Port-8)SFP/mini-GBIC SlotsTwo 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual modeSwitch ArchitectureStore-and-ForwardSwitch Fabric20Gbps/non-blockingSwitch Throughput@64 bytes14.8Mpps @64 bytesMAC Address Table8K entriesShared Data Buffer4.1 megabitsFlow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplexJumbo Frame10KBReset Button< 5 sec: System reboot
> 5 sec: Factory defaultLED■ Power LED: Power (Green)
■ PoE Port (Port-1 to Port-8):
　PoE-in-Use (Orange)
　LNK/ACT (Green)
■ 100/1000X SFP Ports (Port 9 to Port 10):
　1000 LNK/ACT (Green)
　100 LNK/ACT (Orange)Connector■ Removable 3-pin terminal block for power input
- Pin 1/2 for Power (Pin 1: V+/Pin 2: V-)
- Pin 3 for earth ground
■ DC power jack with 2.0mm central polePower Requirements48~56V DC, 5A (max.) terminal block power input
48~56V DC, 5A (max.) DC jack power input
Note: The two power input interfaces don’t support power redundant function.Power Consumption/ DissipationMax. 210 watts/716 BTUDimensions (W x D x H)178 x 25 x 134 mmWeight640gESD ProtectionContact Discharge 6KV DC
Air Discharge 8KV DCEnclosureMetalInstallationFixed wall mount, magnetic wall mount or DIN railPower over EthernetPoE StandardIEEE 802.3af/802.3at Power over Ethernet PSEPoE Power Supply TypeEnd-spanPoE Power Output■ IEEE 802.3af Standard
　- Per port 48V~56V DC (depending on the power supply), max. 15.4
　watts
■ IEEE 802.3at Standard
　- Per port 50V~56V DC (depending on the power supply), max. 36 wattsPower Pin Assignment1/2(+), 3/6(-)PoE Power Budget200 watts (depending on power input)Max. Number of Class 2 PDs8Max. Number of Class 3 PDs8Max. Number of Class 4 PDs7Layer 2 FunctionsPort MirroringTX/RX/Both
Many-to-1 monitorVLAN802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLANLink AggregationIEEE 802.3ad LACP and static trunk
Supports 1 groups with 2 SFP ports per trunkSpanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU guard, BPDU filtering and BPDU forwardingIGMP SnoopingIPv4 IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groupsMLD SnoopingIPv6 MLD (v1/v2) snooping, up to 256 multicast groupsAccess Control ListIPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACEQoS8 mapping IDs to 8 level priority queues
- Port Number
- 802.1p priority
- DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth controlSecurityIEEE 802.1X port-based authentication
Built-in RADIUS client to cooperate with RADIUS server
RADIUS/TACACS+ authentication
IP-MAC port binding
MAC filtering
Static MAC address
DHCP snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Storm control support
Broadcast/Unknown unicast/Unknown multicastManagement FunctionsBasic Management InterfacesWeb browser; Telnet; SNMP v1, v2c, v3
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP
Remote/Local Syslog
System log
LLDP protocol
SNTP
PLANET Smart Discovery UtilitySecure Management InterfacesSSH, SSL, SNMP v3SNMP MIBsRFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIBStandards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEStability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2EnvironmentOperatingTemperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)StorageTemperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)AccessoriesStandard Accessories■ Quick Installation Guide x 1
■ 3-pin Terminal Block Connector x 1
■ Wall-mounted Kit x 1
■ DIN-rail Kit x 1
■ Magnet Kit x 1
■ RJ45 Dust Cap x 8
■ SFP Dust Cap x 2
