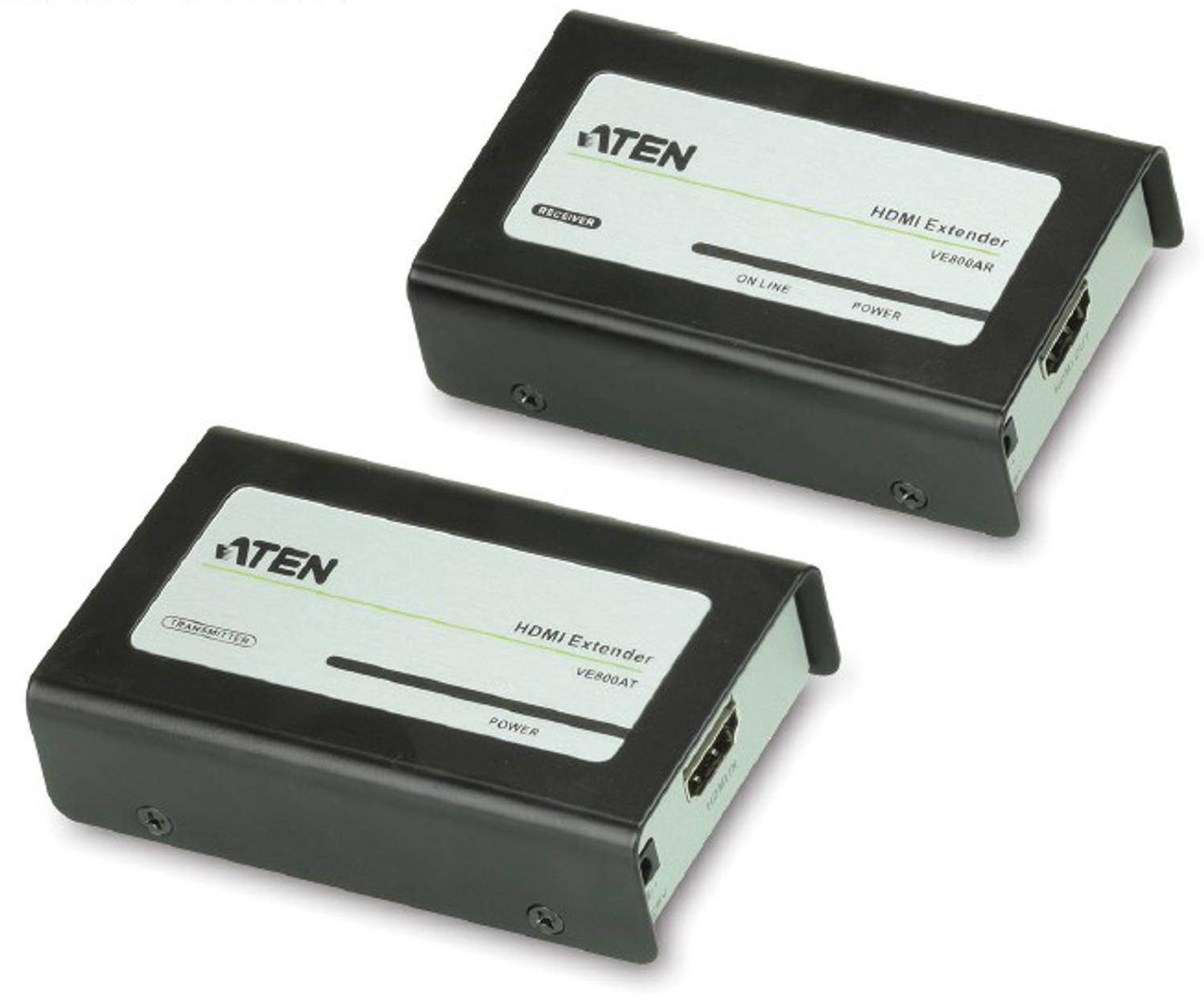

HDMI Signal Extender, Receiver and Transmitter

It is used to increase the distance between an image source device broadcasting HDMI and the HDMI display system. ATEN-VE800A HDMI Distance Extension device transfers the image from the HDMI source (PC, DVD player, satellite set-top box, etc.) to CAT 6/6A/7 AWG23 S/FTP or It also transfers it to the HD display system located 60 meters away via the F/FTP cable. There are HDMI (high definition multimedia interface) connectors on the device. If an HDMI <-> DVI converter adapter is used, it can also be used as a DVI (digital visual interface) Distance Extension device. As it is known, the distance is limited in HDMI cables. In order to transmit signals over long distances, a CAT 6/6A/7 AWG23 S/FTP or F/FTP cable is used instead of an HDMI connection cable. Thanks to ATEN EDID technology, DVI image is displayed via a CAT 6/6A/7 AWG23 S/FTP or F/FTP cable channel. carries the signal.High Image Resolution: Resolution: 1920 x 1200, up to 1080p. 1080p at 40 meters; 1080i (HDTV)HDMI (3D, Deep Color) at 60 meters; HDCP compatible. Supports Dolby True HD and DTS HD Master Audio technologies. Image optimization adjustments can be made thanks to the EQ switch on the device. Thanks to the image stabilization feature, quality image transmission is provided to long distances. DDC compatible

Packaging Content

1 x ATEN-VE800AT (Locally Used Transmitter Device)1 x ATEN-VE800AR (Remote Receiver Device)2 x Power Adapters1 x Mounting Kit1 x User Manual

Product CodeATEN-VE800ARATEN-VE800ATInterunit Connection1 x TMDS, 1 x DDC (CAT 6/6A/7 AWG23 S/FTP or F/FTP cable)Monitor InputInterfaceNone1 x HDMI Type A Female (Black Color)ImpedanceNo100 ΏDisplay OutputInterface1 x HDMI Type A Female (Black Color)NoneImpedance100 ΏNoneDisplay FeaturesMaximum Data Transmission Rate6.75 Gbps (2.25 Gbps Per Lane)6.75 Gbps (2.25 Gbps Per Lane)Maximum Pixel Clock225 MHz225 MHzCompatible TechnologiesHDMI (3D, Deep Color)
HDCP CompliantHDMI (3D, Deep Color)
HDCP CompliantMaximum Resolution / DistanceMaximum 1080p@40m; 1080i@60mMaximum 1080p@40m; 1080i@60mAudioInputNone1 x HDMI Type A Female (Black Color)Output1 x HDMI Type A Female (Black Color)NonePower SpecificationsConnectors1 x DC Jack1 x DC JackConsumption5 VDC, 0.75W5 VDC, 1WEnvironmental FeaturesTemperature of the Environment0 - 50°C0 - 50°CTemperature of the Storage Area -20 - 60°C-20 - 60°C Humidity Rate0 - 80% RH, Non-Condensing0 - 80% RH, Non-CondensingPhysical PropertiesChassisMetalMetalWeight0.16 kg0.16 kgDimensions(W x H x D)9.00 x 5.50 x 2.20 cm9. 00 x 5.50 x 2.20 cm
