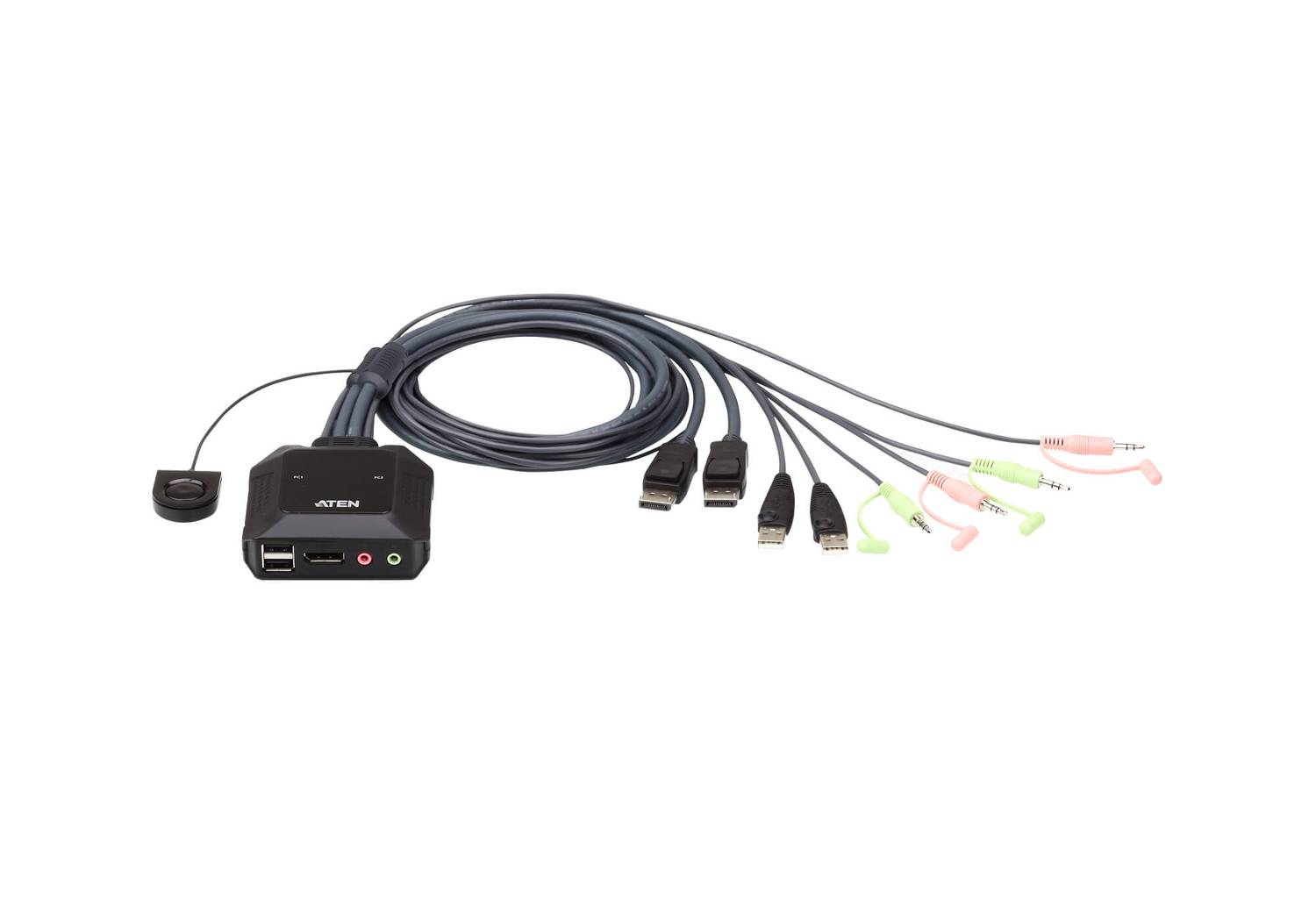

2 Port USB DisplayPort KVM (Keyboard/Video Monitor/Mouse) Switch,

It allows 2 computers with DisplayPort to be controlled by 1 keyboard (USB), 1 mouse (USB) and 1 monitor (DisplayPort). It offers superior image quality – maximum 2560 x 1600 @ 60Hz. Computer selection can be made with the hardware unit where you can select the remote port. It is possible to switch between ports, that is, between the connected server or computer, with the hardware unit where you can select the port remotely. It supports Windows, Mac and Linux operating systems. It supports DisplayPort Dual-Mode (DP++)*. It is possible to obtain an output port by connecting a DisplayPort <-> HDMI / DVI adapter to the DisplayPort interface. A microphone and speaker can be connected. USB 2.0 mouse port, USB hub and USB peripheral devices can be used for common use or sharing. **It has Plug & Play feature. . It can be disassembled and installed during operation. HDCP Compatible. Electricity is supplied from the computer via the USB port. It does not require an external electrical adapter.

*DisplayPort Dual-Mode (DP++) may require power adapter. The image source must be DP++ compatible.
** It may be necessary to connect a power adapter to supply external power to the micro USD port of the ATEN-CS22DP.

Computer Connection2Port Selection

Hardware Unit from which you can select remote ports

(Remote Port Selector)

ConnectorsConsole Ports2 x USB Type A Female
1 x DisplayPort Female
1 x 3.5mm Audio Interface Female (Green Color)
1 x 3.5mm Audio Interface Female (Pink Color) Computer Ports 2 x USB Type A Male
2 x DisplayPort Male
2 x 3.5mm Audio Interface (Green Color)
2 x 3.5mm Audio Interface Male (Pink Color)Power (Optional)1 x USB Micro Type B FemaleLED LightsKVM Port (On Line /Selected)2 (White Color)Cable LengthKVM2 x 1.2 mRemote Port Selector1.8 mEmulationKeyboard / MouseNoDisplay Resolution2560 x 1600 @ 60HzPower ConsumptionDC 5V, 6.5WEnvironmental FeaturesTemperature of Working Environment0 - 50°CTemperature of Storage Area-20 - 60°CHumidity Rate0-80% RH, Non-condensingPhysical FeaturesChassisPlasticWeight0.35 kg (0.77 lb)Dimensions (W x L x H)8.34 x 8.42 x 3.04cm
(3.28 x 3.31 x 1.2 in.)
