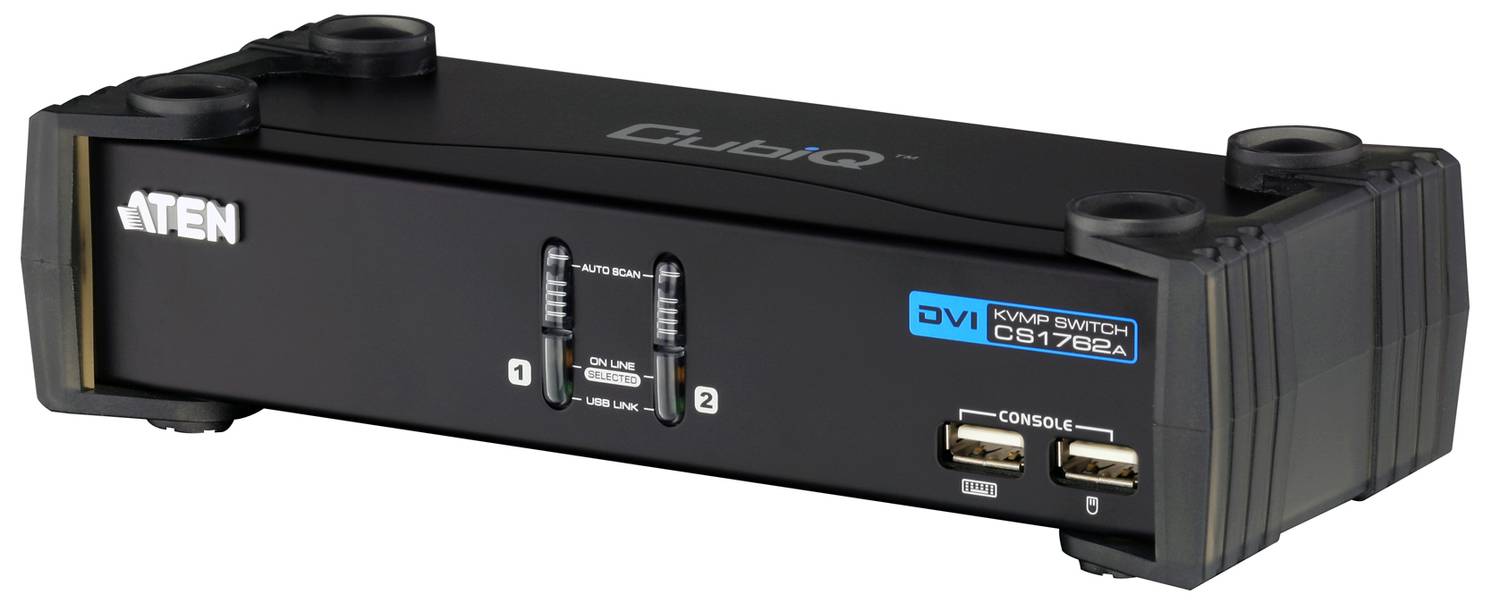

2-Port USB 2.0 DVI KVMP™ Switch + 2-Port USB (2.0) Hub, Masaü

CubiQ™ ATEN-CS1762A is a DVI KVM Switch device with built-in sound effect feature. It is especially designed to meet the needs of PC and Mac users with DVI interface. It is an ideal solution for small workplaces. It allows 2 computers to be controlled by 1 keyboard (USB), 1 mouse (USB) and 1 monitor. Possibility to control 4 computers via USB keyboard and USB mouse ports. Integrated 2-port USB that can connect to devices such as scanners and printers. (2.0) Access to Hub.PCs is done by the following methods. To switch between PCs, press the button on the front panel of the Switch. PC selection is made via Hot-Key key combinations on the keyboard. PC selection is made through the Auto Scan feature. Speaker and Microphone support - 2.1 surround sound system quality sound experience Multi-platform support - Windows, Linux, Mac and SunHigh image quality - 1920 x 1200, 60Hz; Switching between computers, USB peripheral devices, microphones and speakers connected to the DDC2BKVM switch can be done independently of each other. Supports monitors with DVI digital and DVI-analog interfaces. HDCP compatible Video DynaSync™ feature – Optimizes the screen resolution when turning the device on and off and switching between ports. Whatever the display settings of the computer connected to the console, the KVM Switch physically adapts itself by taking these display parameters into account. Power on detection feature - if the power of any of the computers is turned off; ATEN-CS1762A automatically switches to the computer whose power is on. The mouse is detected automatically and there is no need to turn the computers on and off to introduce the mouse. Mouse connections can be disconnected and plugged in while the KVM Switch is running. Sun/Mac keyboard support and emulation*Auto Scan Mode feature for monitoring the status of computers. Firmware update is done via USB interface.

KVM Instead of IP Switches - News Source Windows & NET MAGAZINE: March 2006 Page: 29

* 1. PC keyboard combination works compatible with Sun/Mac keyboards.

2. Sun/Mac keyboards only work on compatible computers.

Packaging Content

1 x ATEN-CS1762A USB 2.0 DVI KVMP™ Switch2 x KVM Cables (DVI-D)1 x Power Adapter1 x User Manual1 x Quick Start Guide

Cable options:

ATEN-2L-7D02U - USB DVI-D KVM Cable (1.8 meters)ATEN-2L-7D03U - USB DVI-D KVM Cable (3 meters)ATEN-2L-7D05U - USB DVI-D KVM Cable (5 meters)

Computer Connections2 Switching Between PortsButtons on the Front Panel; Hotkey; MouseConnectorsConsole PortsKeyboard1 x USB Type A Female
(White Color; front panel)Monitor1 x DVI-I Female (White Color)Mouse1 x USB Type A Female
(White Color; front panel)Speakers1 x Mini Stereo Jack Female
(Green Color; back panel)Microphone1 x Mini Stereo Jack Female
(Pink Colour; back panel)KVM PortsKeyboard / Mouse2 x USB Type B Female (White Colour)Monitor2 x DVI-I Female (White Colour)Speaker2 x Mini Stereo Jack Female (Green Colour)Microphone2 x Mini Stereo Jack Female (Pink Color)Power1 x DC JackUSB Hub2 x USB Type A Female (Black Color; back panel)SwitchesSelected2 x Pushable ButtonLED LightsOn Line / Selected2 (Orange Color)USB Link2 (Green Color)EmulationKeyboard/MouseUSBResolution1920 x 1200@ 60Hz; DDC2BScan Range1–99 secs. (Default 5 seconds)Power ConsumptionDC5.3V, 9.0WEnvironmental FeaturesTemperature of Working Environment0 - 50°CTemperature of Storage-20 - 60°CHumidity Rate0-80% RH, Non-condensingPhysical FeaturesChassisMetalWeight0.73 kgDimensions(W xH x D)21.00 x 8.70 x 5.50cm
