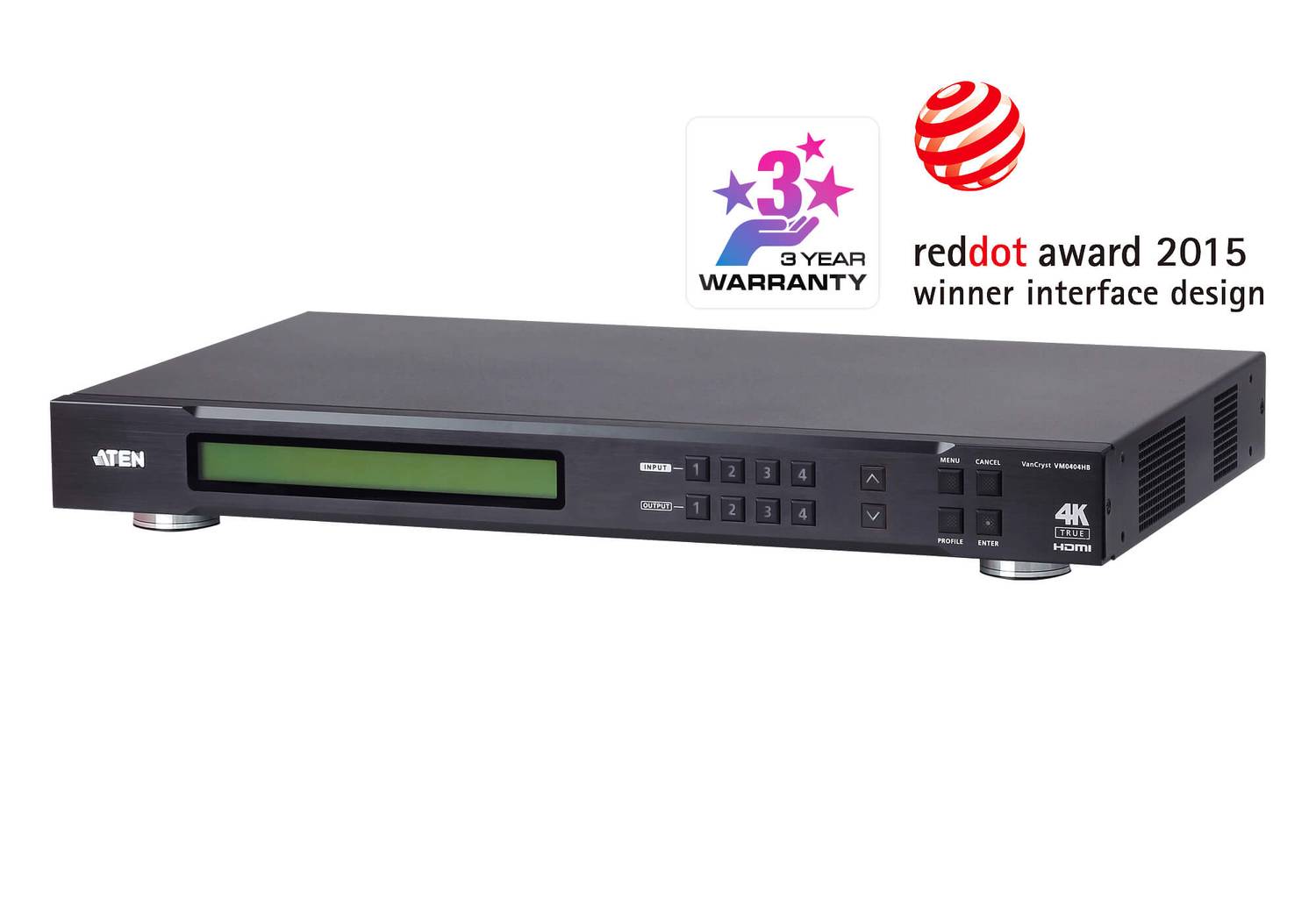

4 x 4 True 4K HDMI Matrix Switch

Projects the image of any of the 4 source devices onto one of the 4 screens connected to the outputs. Supports True 4K resolution - maximum 4096 x 2160 @ 60Hz (4:4:4) Provides the user with many options in management - pushable buttons on the front panel, Infrared remote control , Web User Interface/TelnetEDID (Extended Display Identification Data) Expert™ where RS-232 port and Ethernet connection is available allows connected monitors to present the image by taking into account EDID settings. Image signal transfer rate is 6bit to obtain an uninterrupted true 4K image. Supports Dolby True HD and DTS HD Master audioHDMI (3D, Deep Color, 4K) and HDCP 2.2 compatibleCEC; Supports Consumer Electronics Control technology. CEC supported devices connected via HDMI cable can be controlled with a single remote control. ATEN Lock Pro™ with ESD protection for HDMI can be used with the HDMI cable. Firmware can be updated. Can be mounted in a cabinet. (1U design)

Packaging Content

1 x ATEN-VM0404HB 4 x 4 True 4K HDMI Matrix Switch1 x Power Cable1 x IR Remote Control1 x IR Receiver1 x Cabinet Mounting Kit1 x User Manual

Video InputInterfaces4 x HDMI Type A Female (Black Colour)Impedance100 ΏMaximum Distance1.8 mDisplay OutputInterfaces4 x HDMI Type A Female (Black Colour)Maximum Distance3m / 4K@60Hz (4:4:4)
15m / 1,920 )
HDCP 2.2 Compliant
Consumer Electronics Control (CEC) ManagementRS-232 Connector: 1 x DB-9 Female (Black Color)
Baud rate and protocol: Baud Rate: 19200, Data Bit: 8, Stop Bit:1, Parity: None, Flow Control: NoneIR1 x Mini Stereo Jack Female (Black Color)Ethernet1 x RJ-45 FemaleEDID SettingsEDID Mode: Default / Port 1 / Mixed / Personalized
(EDID Wizard Support)Environmental FeaturesOperating Temperature0-40°CHumidity0 - 80% RH, Non-CondensingTemperature of Storage Area-20 - 60°CPhysical PropertiesWeight2.47 kg (5.44 lb)ChassisMetalDimensions (W x L x H)43.72 x 15.28 x 4.40 cm
(17.21 x 6.02 x 1.73 in.)ConnectorsPower1 x 3-Prong AC SocketPower ConsumptionAC110: 17.8W:83BTU
AC220:17.6W:83BTUPowerMaximum Power Input100-240 VAC; 50-60 Hz; 1.0
