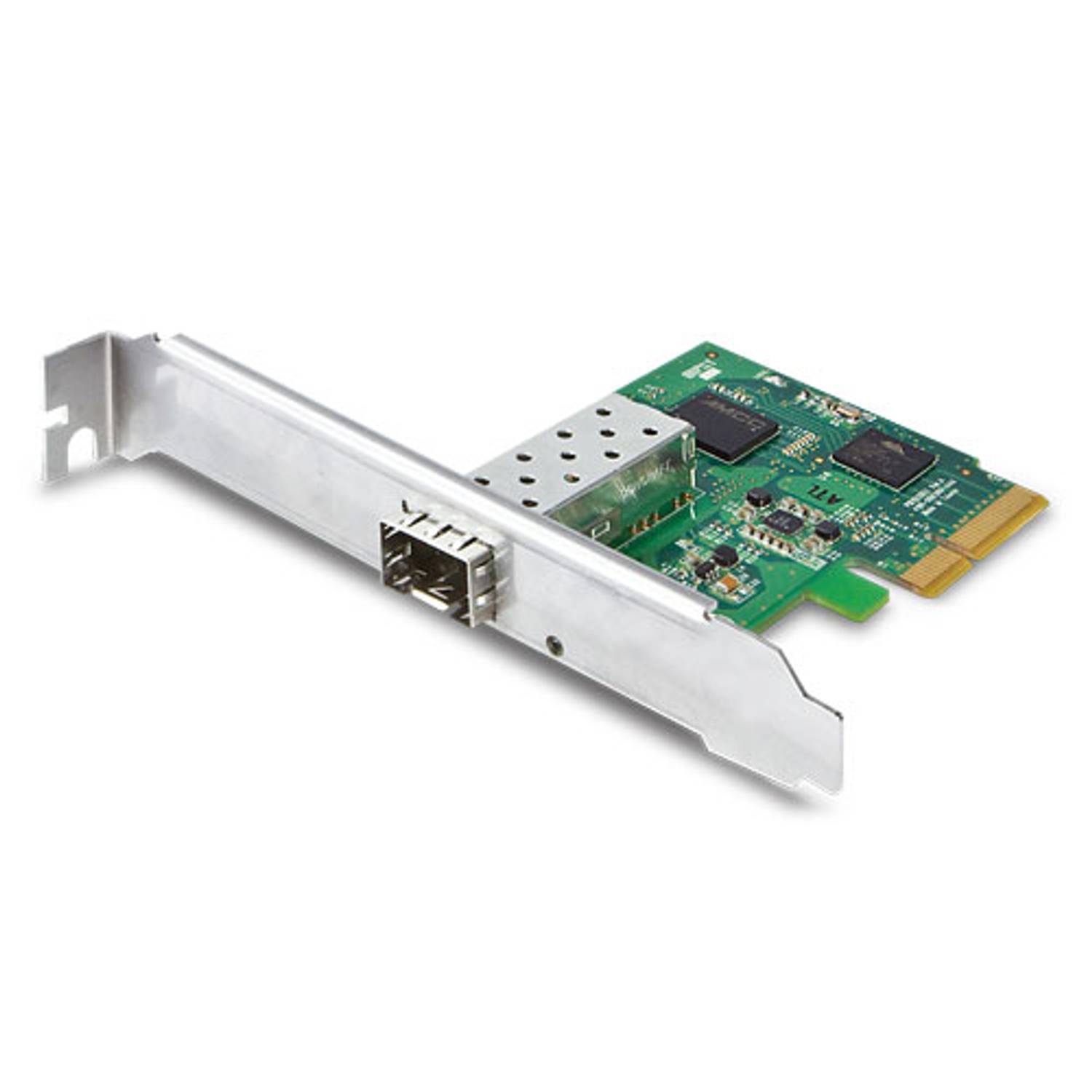

10Gbps SFP+ PCI Express Server Adapter

PCI Express rev. 2.0 specification x4 InterfaceIP, TCP, UDP checksum offloadingIEEE 802.1Q VLAN ID Tagged / IEEE 802.1q Qos16K Jumbo Frame SizeIEEE 802.3x Full-Duplex Flow ControlComplies with Microsoft and Linux Platform

AccessoriesMTB-LRSFP+ Port 10GBase-LR mini-GBIC module (Single mode / 1310nm / max. 10km)MTB-SRSFP+ Port 10GBase-SR mini-GBIC Module (Multi-mode / 850nm / max. 550m)

Hardware SpecificationsHardware VersionV2Attachment InterfacePCI Express rev. 2.0 specification x4 InterfaceMedia InterfaceSFP+ ConnectorOptical Module OptionsLRM, LR, SRMemory1Mbit internal memoryJumbo Frame9K / 16K BytesLED IndicatorsLNK / ACT per portDimensions (W x D x H)62 x 83 x 22 mmWeight47gTypical Power Consumption4 wattsAdvanced FunctionsLayer 2 FeaturesIEEE 802.3x Flow Control support
IEEE 802.1Q VLAN supportOperating System SupportWindows Server 2008R2 64bits
Windows Server 2012 64bits
Windows 7 32 / 64bits
Windows 8 32 / 64bits
Linux (2.6x to 3.8.0)
VMware® ESX 4.xStandards ConformanceRegulation ComplianceFCC Part 15 Class B, CEStandards ComplianceIEEE 802.3ae: 10Gbps Ethernet
IEEE 802.3x: Flow Control and Back Pressure
IEEE 802.1Q: VLAN TaggingEnvironmentOperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)StorageTemperature: -10 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)PackagePackage Contents● ENW-9801 Server Adapter
● Quick Installation Guide
● CD-ROM (Driver & User’s Manual)
● Low Profile Bracket
