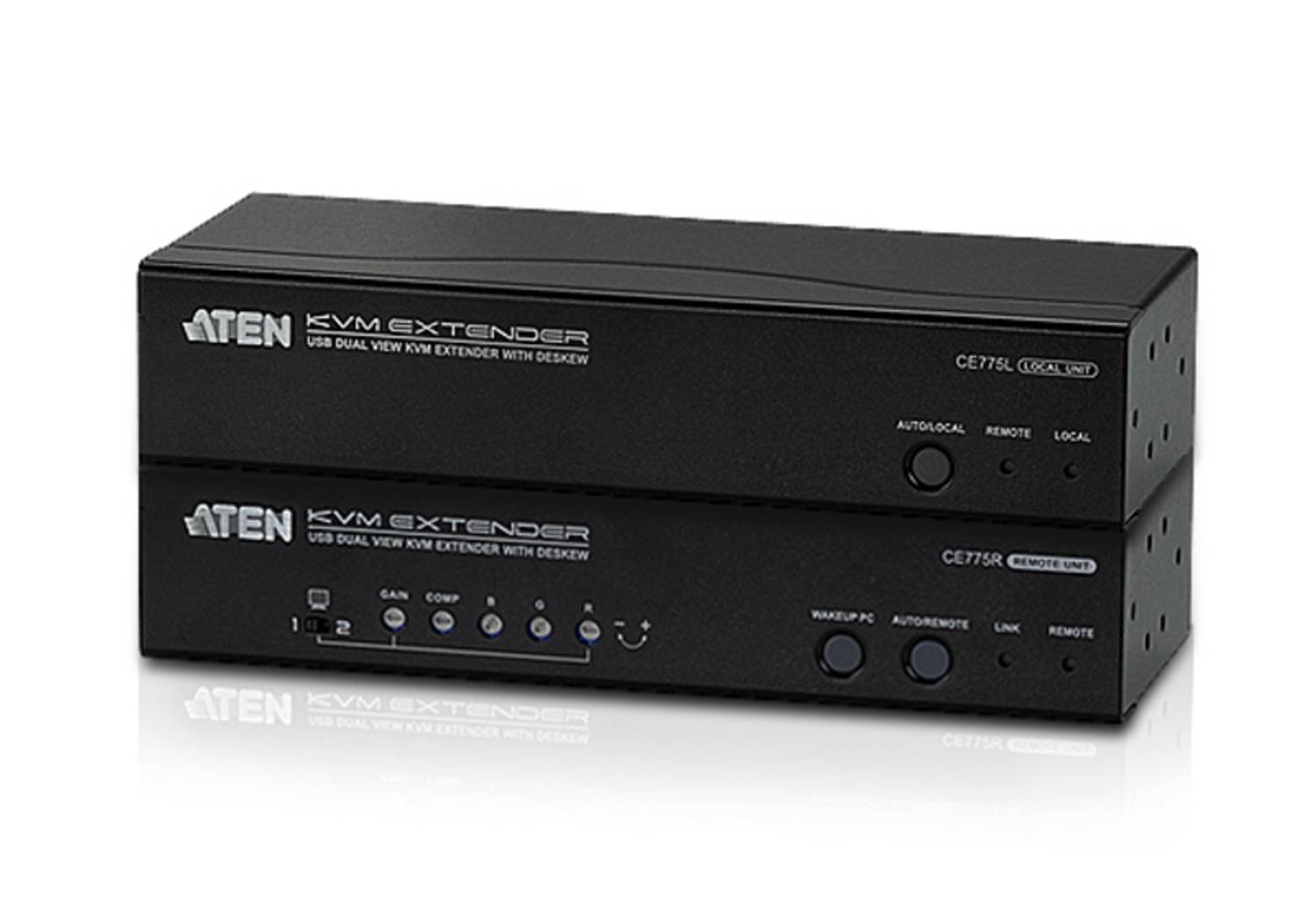

Dual Screen Support - It allows the management of 2 computers that support dual display output with 1 USB keyboard and mouse and 2 VGA monitors from a distance of 300 meters. It consists of two units: Local and Remote. With the 300-meter CAT 6/6A/7 AWG23 S/FTP or F/FTP cable laid between these two devices, you can control your dual display output computer from a distance of 300 meters with 1 keyboard, 1 mouse and 2 monitors connected to the Remote unit. You can also control it with a keyboard, 2 monitors and a mouse that you connect to the local unit (Dual Console Operation feature). Deskew Feature - In this way, it automatically compensates for the delay that may occur in RGB signals depending on the increasing distance. PC Wakeup support - from the remote console to a local one via RS-232 It is possible to wake up the computer. Superior Image Quality - 1920x1200@60Hz(150 m); 1280x1024@60Hz (300m) Image Gain Adjustment - Image gain adjustment can be made automatically and manually in order to capture a clear image for increasing distance. Image settings can be easily made thanks to the OSD menu. RS-232 Channel - Allows connection with serial terminals or serial devices, for example; touch screens and barcode scanners. 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) Sun/Mac keyboard support and emulation *
*one. PC keyboard interfaces automatically recognize Sun/Mac keyboards.
2. Sun/Mac keyboards only work on their brand's systems.
Packaging Content1 x ATEN-CE775L USB KVM Extender (Local Unit)1 x ATEN-CE775R USB KVM Extender (Remote Unit)1 x KVM Cable (VGA, USB, Speaker and Microphone; 1.8 meters)1 x VGA Cable (14 cm)2 x Power Adapter1 x Mounting Kit1 x User Manual
ProductATEN-CE775LATEN-CE775RConnectorsConsole PortsKeyboard1 x USB Type A Female (White Color)Display2 x HDB-15 Female (Blue Color)Mouse1 x USB Type A Female (White Color)Speaker1 x Mini Stereo Jack Female (Green Color)Microphone1 x Mini Stereo Jack Female (Pink Color)Main1 x RJ-45 Female (Black Color)Sub1 x RJ-45 Female (Black Color)KVM
Ports Keyboard / Screen / Mouse1 x SPHD-17 Female (Yellow Color)NoSpeaker1 x Mini Stereo Jack (Green Color)Microphone1 x Mini Stereo Jack (Pink Color)VGA Input1 x HDB-15 Male (Blue Color)RS-2321 x DB -9 Female (Black Colour)1 x DB-9 Male (Black Colour)Power1 x DC Jack (Black Colour)SwitchesOperating Mode Selection1 x Push ButtonWakeup PCNo1 x Push ButtonDisplay Output Port
SelectionNone1 x Slide SwitchDisplay Gain TunerNone1 x KnobDisplay CompensationTunerNone1 x KnobRGB TunerNone3 x KnobLED LightsLocal1 (Green Colour)NoneRemote1 (Green Colour)LinkNone1 (Green Colour)EmulationKeyboard / MouseUSBDisplay1920 x 1200 @ 60Hz (150 m);
1280 kgDimensions
(W x L x H)20.00 x 7.58 x 4.20 cm
