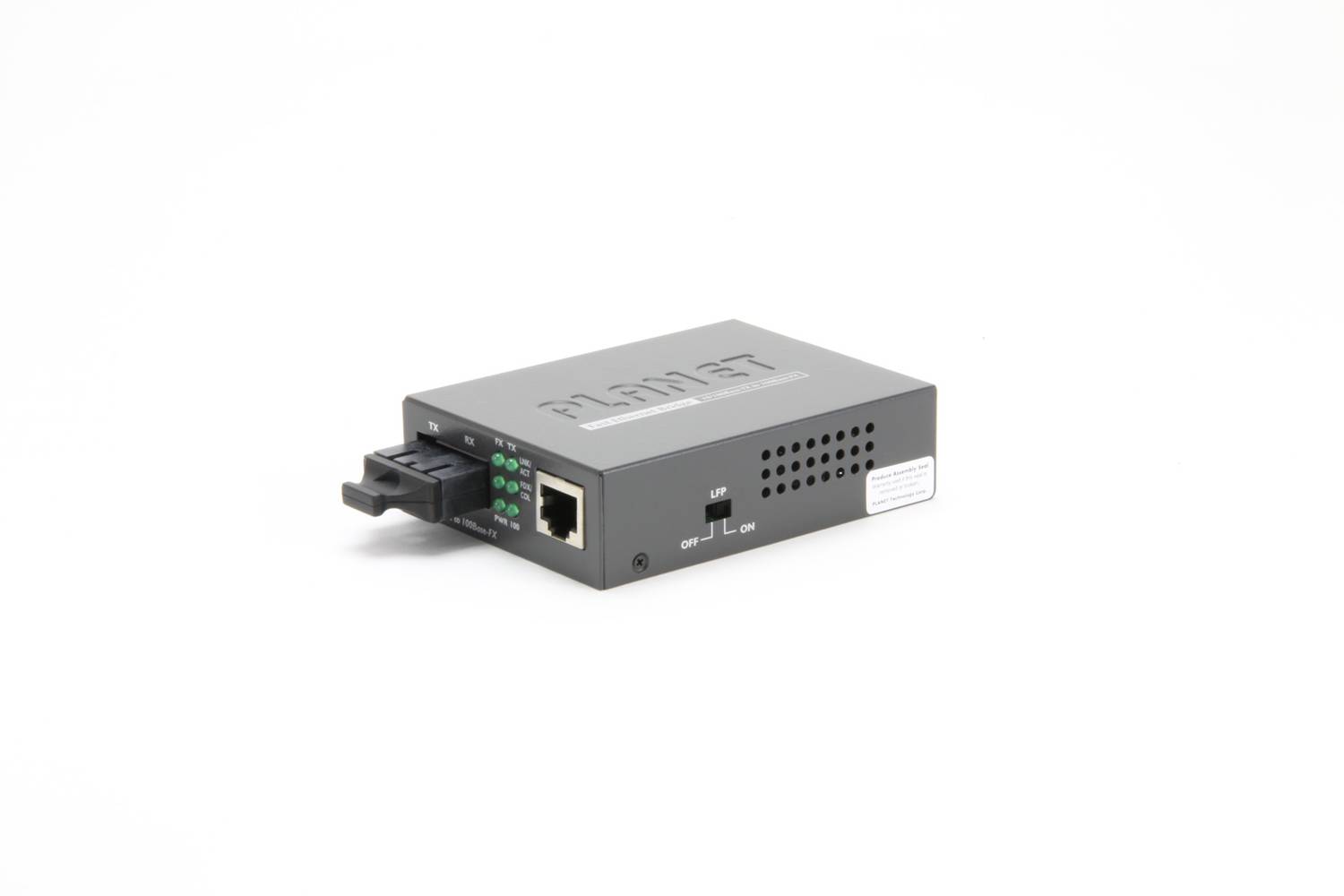

Bridge Media Converterbrn10/100Base-TX - 100Base-FX (SC, MM)brn2k

It converts 10/100 Mbps TP (copper) - 100 Mbps FX (fiber). Fiber connection distances: 412m in Half-Duplex mode, 2 km in Full-Duplex mode. Connectors: 1 x Twisted Pair (RJ-45), Auto-MDI/MDI-X1 x Fiber-optic (SC), 1310nm wavelength Supports IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX standards. Data Transfer: TP: 10/100MbpsFX: 100MbpsDuplex support: TP side full-duplex or full-duplex thanks to Auto-Negotiation half-duplex supportsFX side can be set to full-duplex or half-duplex thanks to the DIP-switch on the back. LED indicators: PWR, FX LNK/ACT, FX FDX/COL, TP 100, TP LNK/ACT, TP FDX/CODIP on the side Thanks to the switch, the LFP (Link Fault Pass-through) feature can be activated. This way, an error on one side can be notified to the other side.

LLCF (Link Loss Carry Forward): If the link is lost on the TP side, the FX side cuts off the transmit link signal

LLR (Link Loss Return): If the link is lost on the fiber side, the TP side also cuts the link signal. Power Requirement: 5V DC, 2AExternal power adapter comes with the product.

ModelFT-802ProductProtocolIEEE 802.3, 10Base-T
IEEE 802.3u, 100Base-TX
IEEE 802.3u, 100Base-FXDimensions (W x L x H)97 x 69 x 26 mmWeight0.2kgPower5V DC, 2A, maximumConnector and CablesTwisted Pair / STPRJ45, Category 5 (EIA/TIA 568)Fiber-opticSC Connector/ Multi-Mode/ 2kmMulti-mode cable50/125, 62.5/125 µmOptical Wavelength1310nmLight Output Power (dBm) Maximum-14Light Output Power (dBm) Minimum-20 (62.5/125µm), -23.5 (50/125µm)Receiver Sensitivity (dBm)-31.8Maximum Input power ( dBm)-14Supported distancesTwisted Pair Cable Distance100 meters / 328 feetFiber Cable Distance412 m / 1,350 feet (Half-Duplex)
2 km / 1.2 mi (Full-Duplex)Port ModTP: Half and Full Duplex, auto-negotiation
FX: Half and Full Duplex via DIP switch Environmental Features Working Environment Temperature: 0~50 Degrees
Humidity Rate: 5~90% non-condensingStorage EnvironmentTemperature: -40~70 Degrees
Humidity: 5~90% non-condensing ComplianceFCC Class A, CE Class A
