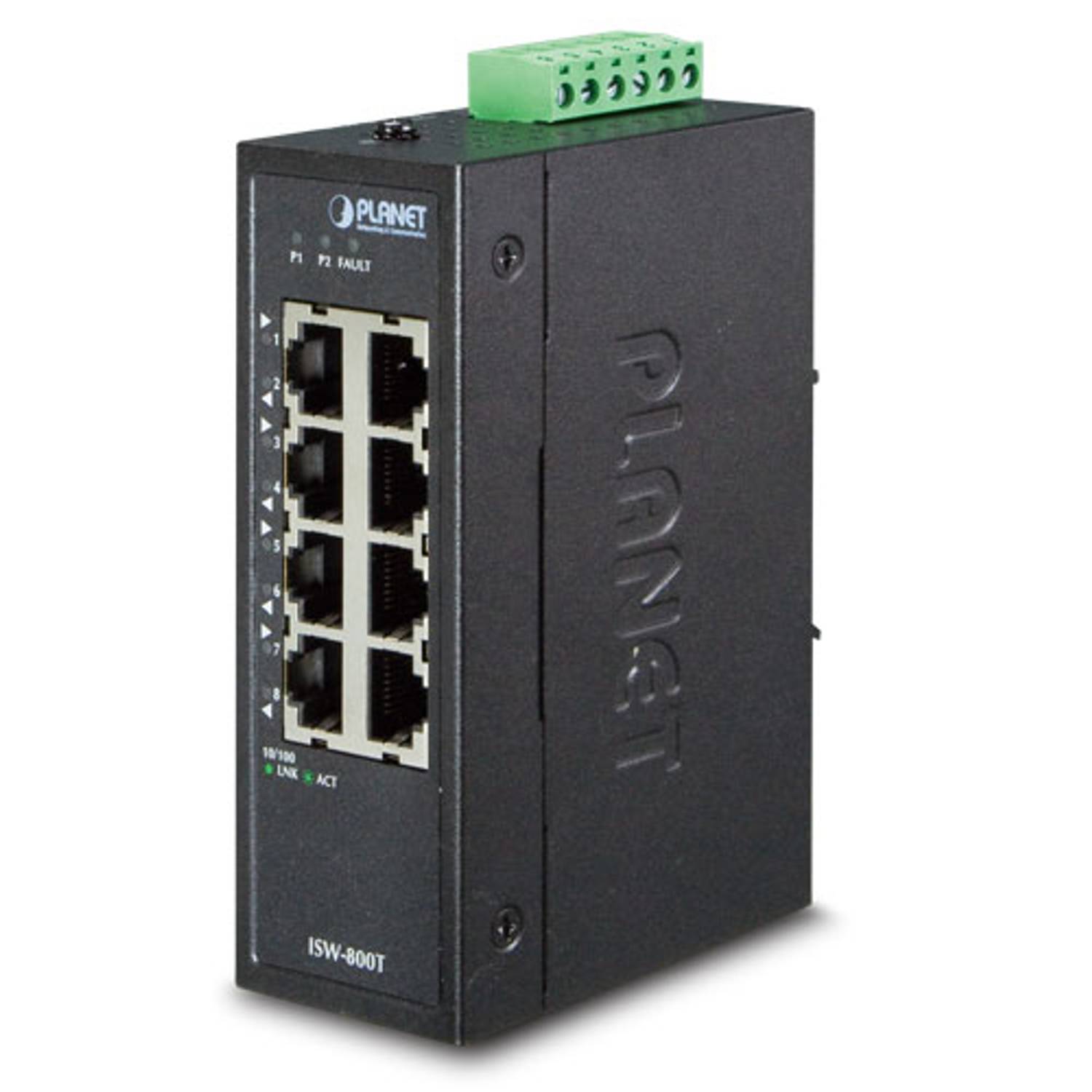

Endüstriyel Tip Yönetilemeyen Kompakt Ethernet Switch (Industrial

Physical Port

8-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function

Layer 2 Features

Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standardSupports auto-negotiation and 10/100Mbps half/full duplex modePrevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)IEEE 802.1p CoSSupports 1K MAC addressAutomatic address learning and address aging

Industrial Case and Installation

IP30 metal caseDIN rail and wall-mount design12 to 48V DC, redundant power with polarity reverse protect function24V AC power input acceptableSupports 6000 VDC Ethernet ESD protection-40 to 75 degrees C operating temperatureFree fall, shock-proof and vibration-proof for industries

Hardware SpecificationsCopper Ports8 10/100BASE-TX RJ45 auto-MDI/MDI-X portsSwitch ArchitectureStore-and-ForwardSwitch Fabric1.6Gbps (non-blocking)Throughput (packet per second)1.19Mpps@ 64 bytesAddress Table1K entries, automatic source address learning and agingShared Data Buffer448K bitsFlow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplexESD Protection6KV DCEnclosureIP30 metal caseInstallationDIN rail kit and wall-mount kitConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DCLED IndicatorSystem:
Power 1 (Green)
Power 2 (Green)
Fault Alarm ( Red )
Per 10/100TX RJ45 Ports:
10/100 LNK/ACT (Green)Dimensions (W x D x H)70 x 115 x 41 mmWeight300gPower RequirementsDual 12~48V DC, 24V ACPower ConsumptionMax. 1.1 watts/3.77BTU (Power on without any connection)
Max. 2.5 watts/8.57BTU (Ethernet full loading)Standards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEStability TestingIEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.1X Port Authentication Network Control
IEEE 802.3az Energy Efficient Ethernet (EEE)EnvironmentOperating Temperature-40 ~ 75 degrees CStorage Temperature-40 ~ 85 degrees CHumidity5 ~ 95% (non-condensing)
