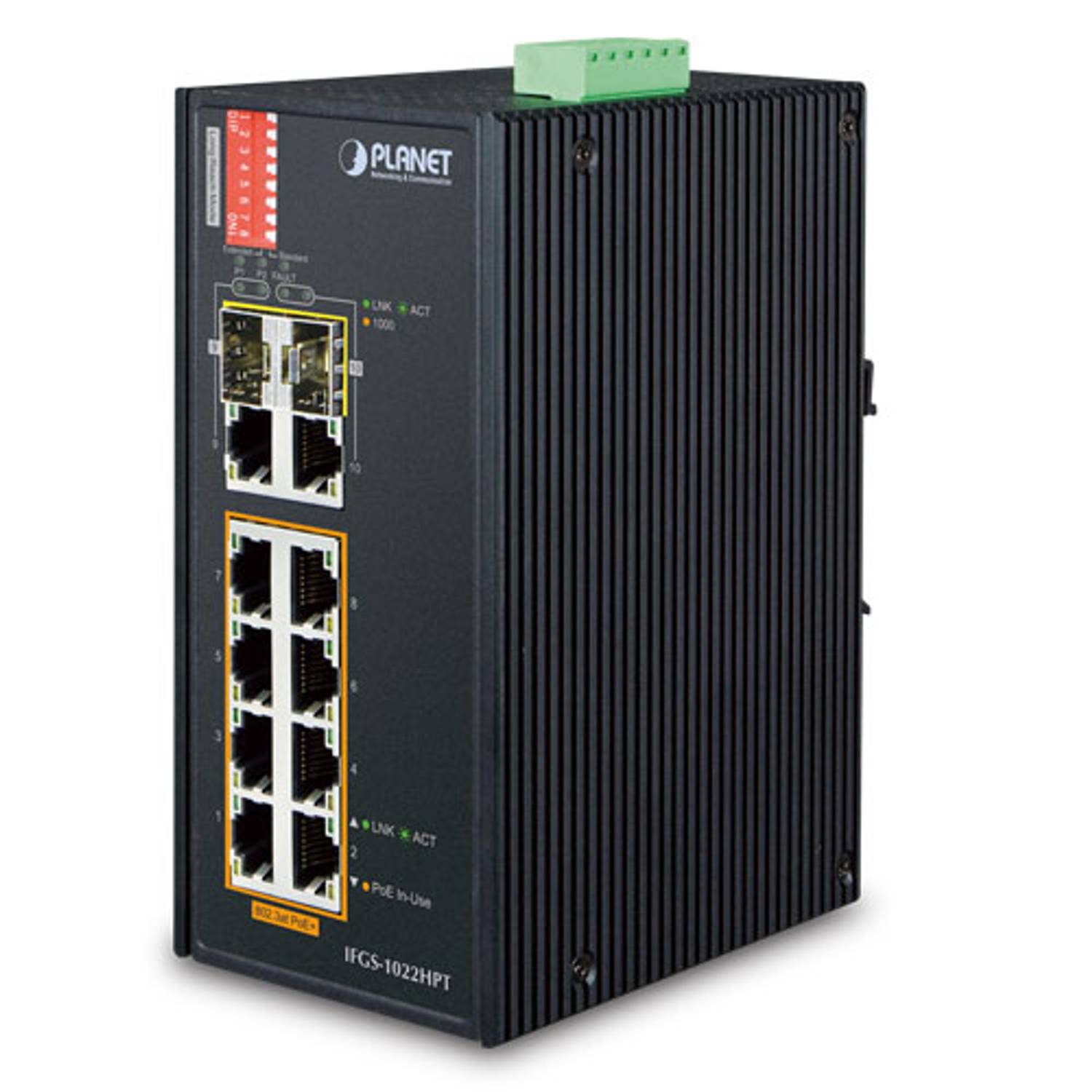

Endüstriyel Tip Yönetilemeyen PoE+ Switch (Industrial Unmanaged P

Physical Port

Eight 10/100BASE-TX Fast Ethernet RJ45 ports with IEEE 802.3at/af PoE+ Injector (Port-1 to Port-8)Two 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Port-9 and Port-10)Two 1000BASE-X mini-GBIC/SFP slots for SFP type auto detection (Port-9 and Port-10)

Power over Ethernet

Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSEBackward compatible with IEEE 802.3af Power over EthernetUp to 8 ports of IEEE 802.3af/802.3at devices powered240-watt PoE budgetSupports PoE power up to 30 watts for each PoE portAuto detects powered device (PD)Circuit protection prevents power interference between portsRemote power feeding up to 100 meters

Industrial Case and Installation

IP30 metal caseDIN rail and wall-mount design48~56V DC, redundant power with polarity reverse protect functionSupports 6000V DC Ethernet ESD protection-40 to 75 degrees C operating temperature

Switching

Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-XFeatures Store-and-Forward mode with wire-speed filtering and forwarding ratesIEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation16K MAC address table size10K jumbo frameIEEE 802.1Q VLAN transparencyHardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10MbpsAutomatic address learning and address agingSupports CSMA/CD protocol

Hardware SpecificationsFast Ethernet Copper PortsEight 10/100BASE-TX RJ45 auto-MDI/MDI-X ports (Port-1 to Port-8)Gigabit Ethernet Copper PortsTwo 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
(shared with Port-9 and Port-10)SFP/mini-GBIC SlotsTwo 1000BASE-SX/LX/BX SFP interfaces (shared with Port-9 and Port-10)PoE Injector PortEight ports with 802.3af/802.3at PoE+ injector function (Port-1 to Port-8)Switch ArchitectureStore-and-ForwardSwitch Fabric5.6Gbps/non-blockingSwitch Throughput@64 bytes4.1Mpps @64 bytesMAC Address Table16K entriesShared Data Buffer4Mb SRAMFlow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplexJumbo Frame10 KbytesDIP Switch (Port-1 to Port-8)Standard mode: 30-watt PoE transmit distance of 100m at speed of 10/100Mbps
Extend mode: 30-watt PoE transmit distance of 250m at speed of 10MbpsLED3 x LED for System and Power:
　■ Green: DC Power 1
　■ Green: DC Power 2
　■ Red : Power Fault Alarm
2 x LED for PoE Copper Port (Port-1~Port-8):
　■ Green: LNK/ACT (10/100Mbps)
　■ Orange: PoE-In-Use
2 x LED for 10/100/1000T Copper Port (Port-9~Port-10):
　■ Green: LNK/ACT
　■ Orange: 1000
2 x LED for per mini-GBIC interface (Port-9~Port-10)
　■ Orange: LNK/ACT
　■ Green: 1000ConnectorRemovable 6-pin terminal block
　■ Pin 1/2 for Power 1
　■ Pin 3/4 for power fault alarm
　■ Pin 5/6 for Power 2AlarmOne relay output for power failure.
Alarm relay current carry ability: 1A @ 24V ACPower Requirements48~56V DC, 5.5A (max.) (>51V DC for PoE+ output recommended)Power Consumption/ Dissipation6.4 watts, 21BTU (Standby without PoE function) at DC 56V power input
8.2 watts, 27BTU (Full loading without PoE function) at DC 56V power input
241 watts, 832BTU (Full loading with PoE function) at DC 56V power inputDimensions (W x D x H)72 x 107 x 161 mmWeight1034gESD Protection6KV DCEnclosureIP30 aluminum caseInstallationDIN-rail kit and wall-mount kitPower over EthernetPoE StandardIEEE 802.3at Power over Ethernet Plus/PSEPoE Power Supply TypeEnd-spanPower Pin Assignment1/2(+), 3/6(-)PoE Power OutputIEEE 802.3af Standard
- Per port 48V~51V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
- Per port 51V~56V DC (depending on the power supply), max. 30 wattsPoE Power BudgetDual power input: maximum 240W (depending on power input)Max. Number of Class 2 PDs8Max. Number of Class 3 PDs8Max. Number of Class 4 PDs8Standards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEStability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PlusEnvironmentOperating Temperature-40 ~ 75 degrees CStorage Temperature-40 ~ 85 degrees CHumidity5 ~ 95% (non-condensing)
