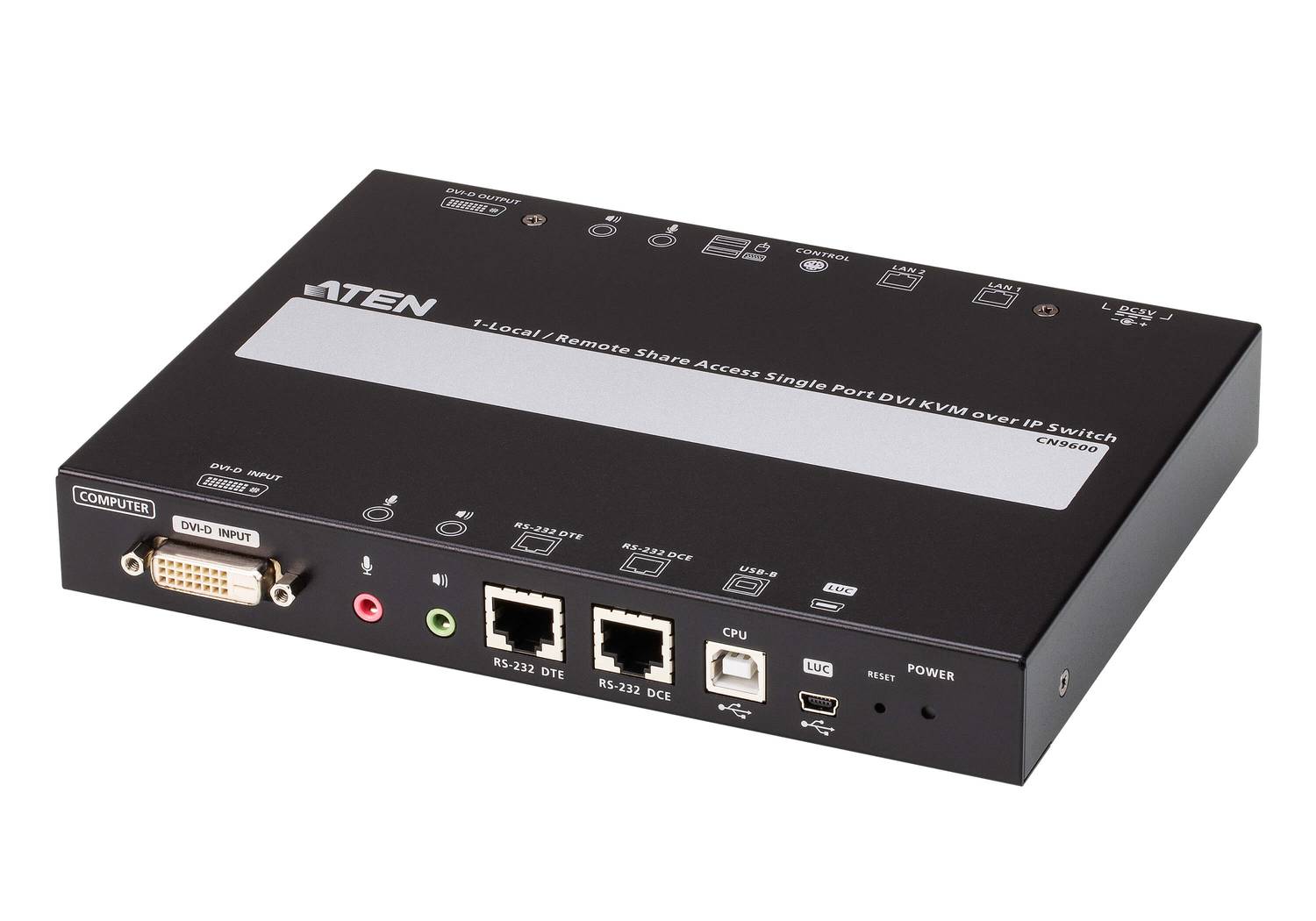

1-Local/Remote Share Access Single Port DVI KVM over IP Switch

HardwareCompact and slim design for space utility optimizationProvides a FPGA graphics processor for better image quality and enhanced fps (frames per second) throughput for crisp video display responseProvides over-IP capability toDVI KVMswitches that do not have built-in over-IP functionality*Local console provides USB keyboard and mouse supportA mini USB port on the front panel serves as a Laptop USB Console (LUC) portTwo 10/100/1000 Mbps NICs for redundant LAN or two IP operationDual Power Supply for power backupSupports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devicesVirtual Media support**High video resolution – up to 1920 x 1200 @ 60Hz for both local and remote consolesAudio support – microphone and speakers are supported on the local and remote console

* Compatible KVM Switch: ATEN DVI Single Link KVM Switches
** Some of the CN9600's features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not supportvirtual media.)

ManagementComplies to the RS-232 DTE/DCE standards for serial controlUp to 64 user accounts – up to 32 users can simultaneously share controlConsole access right managementEnd session feature – administrators can terminate running sessionsEvent logging and Windows-based Log Server supportEvent Logging – the CN9600 can record all events that take place on it and write them to a searchable databaseSupports instant notification of critical system events via email, SNMP trap and SyslogFirmware upgradable viaremote accessAccess the CN9600 via a built-in serial viewer, or via third-party software (such as PuTTY) for Telnet and SSH sessionsOut of Band support – access the CN9600 through its serial port using a dial-up connectionPort Share Mode allows multiple users to gain access to a server simultaneouslyLocal/Remote Share Mode conveniently grants shared or exclusive console privilegeIntegration with ATENCC2000Management SoftwareIntegration with ATENCCVSRVideo Session Recording SoftwareSupports ATEN KVM over IP Console Station (KA8270/KA8280/KA8278/KA8288)DDNS – allows mapping of a dynamic IP address assigned by a DHCP server to a host nameSupports export/import of user account and configuration settingsSupports permission-controlled browser operationSupports IPv6Easy-to-Use InterfaceBrowser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivityMultiplatform client support (Windows, Mac OS X, Linux, Sun)Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirementsFull-screen or sizable and scalable Virtual Remote DesktopMagic Panel with configurable function for quick launchAdvanced SecuritySmart Card/CAC Reader supportExternal authentication support: RADIUS, LDAP, LDAPS and MS Active DirectorySupports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users logging in from browsersFlexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4 or Random for independent keyboard/mouse, video, andvirtual mediadata encryptionSupports IP/MAC FilterSupports password protectionPrivate CAVirtual MediaVirtual media enables file applications, OS patching, software installation and diagnostic testingWorks with USB-enabled servers at OS and BIOS levelSupports USB 1.1 and USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives, folders and ISO imagesVirtual Remote DesktopVideo quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth, threshold and noise settings can be adjusted for compression of the data bandwidth in low bandwidth situationsFull-screen video display or scalable video displayMessage Board for communication among remote usersOn-screen keyboard with multilanguage supportMouse DynaSync™ – automatically synchronizes the local and remote mouse movementsSupports Exit MacrosBIOS-level access

Package Contents

1x CN9600 DVI KVM over IP Switch1x KVM Cable (DVI-D, USB, Audio; 1.8 m/6 ft)1x USB Cable (1.8 m/6 ft)1x Power Adapter1x Mounting Kit1x User InstructionsConnectorsConsole Ports2 x USB Type A Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)KVM Ports1 x USB Type B Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)LAN Ports2 x RJ-45 FemaleVirtual Media1 x USB Mini-B FemalePower2 x DC JackSerial2 x RJ-45 FemaleControl1x PS/2 FemaleSwitchesReset1 x Semi-recessed pushbutton (Black)EmulationKeyboard / MouseUSBLEDsPower1 (Green)VideoLocal console - 1920 x 1200 @ 60 Hz
Remote - 1920 x 1200 @ 60 HzPower ConsumptionDC5V:5.55W:30BTUEnvironmentalOperating Temperature0 - 50°C (CN9600)
0 - 40°C (Power Adapter)Storage Temperature-20 - 60°CHumidity0 - 80% RH, Non-condensingPhysical PropertiesHousingMetalWeight0.84 kg ( 1.85 lb )Dimensions (L x W x H)20.00 x 15.49 x 2.85 cm
(7.87 x 6.1 x 1.12 in.)
