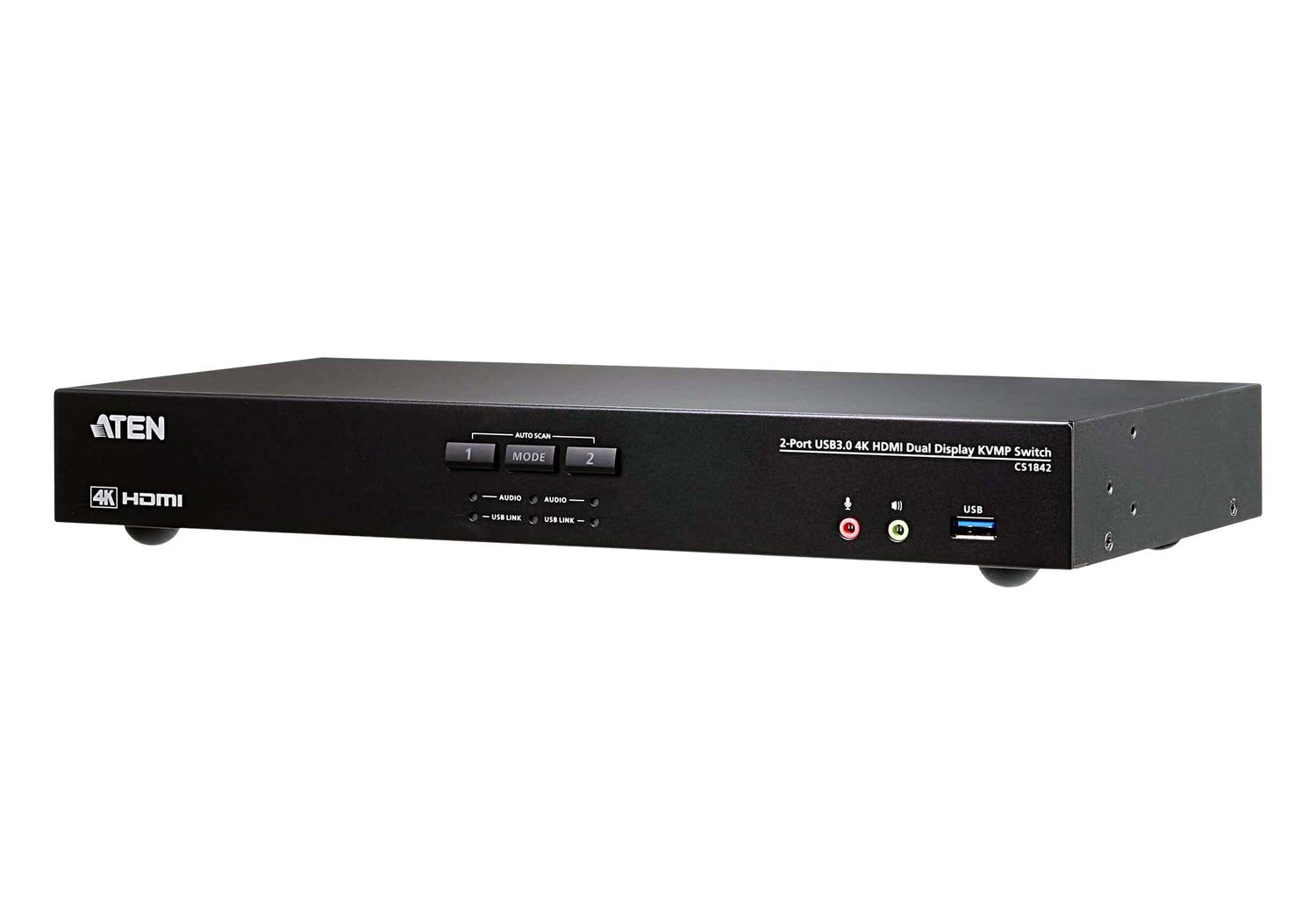

2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch

One USB keyboard, mouse and two HDMI monitors control two HDMI computers and share two USB peripheralsSupports Quad Display by connecting two Dual Display KVM switchesVideo DynaSync™ – an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between portsSupports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)Computer selection via pushbuttons, hotkeys, mouse1, remote port selector, and RS-232 commands2Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer ratesSupports console keyboard emulation / bypass featureSupports console mouse emulation / bypass featureIndependent switching of KVM, USB peripheral, and stereo audio focus3Multilingual keyboard mapping – supports English, French, Japanese, and German keyboardsHDMI 2.0 compliant; HDCP 2.2 compliantSupports HD audio3Power on detectionAuto Scan Mode for monitoring all computersFirmware upgradable

Note:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45-to-DB-9 cable. Please refer to the CS1842/CS1844 user manual.
3. HD audio through HDMI channel cannot be switched independently.

Computer Connections2Port SelectionHotkey, Pushbutton, Mouse, RS-232 Commands, Remote Port SelectorConnectorsConsole Ports2 x USB Type A Female
2 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)KVM (Computer) Ports2 x USB3.1 Gen1 Type B Female (Blue)
4 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)Daisy Chain Ports1 x RJ-45 FemaleRemote Port Selector1 x 2.5mm Audio Jack FemalePower1 x DC JackUSB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)SwitchesSelected3 x PushbuttonStation Selection1 x Slide SwitchLEDsOn Line /Selected3 (Orange)USB Link3 (Green)Audio3 (Green)EmulationKeyboard / MouseUSBVideoUp to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144HzScan Interval1-99 Seconds (Default: 5 sec.)Power ConsumptionDC12V:3.17W:57BTUEnvironmentalOperating Temperature0-40°CStorage Temperature-20-60°CHumidity0-80% RH, Non-condensingPhysical PropertiesHousingMetalWeight1.60 kg ( 3.52 lb )Dimensions (L x W x H)33.50 x 16.05 x 4.40 cm
(13.19 x 6.32 x 1.73 in.)

Package Contents

1x CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch4x HDMI 2.0 Cables2x USB 3.0 Cables2x Speaker Cables2x Microphone Cables1x Power Adapter1x Remote Port Selector1x User Instructions
